Nema 17 Stepper Motor 17HS8401

Nema 17

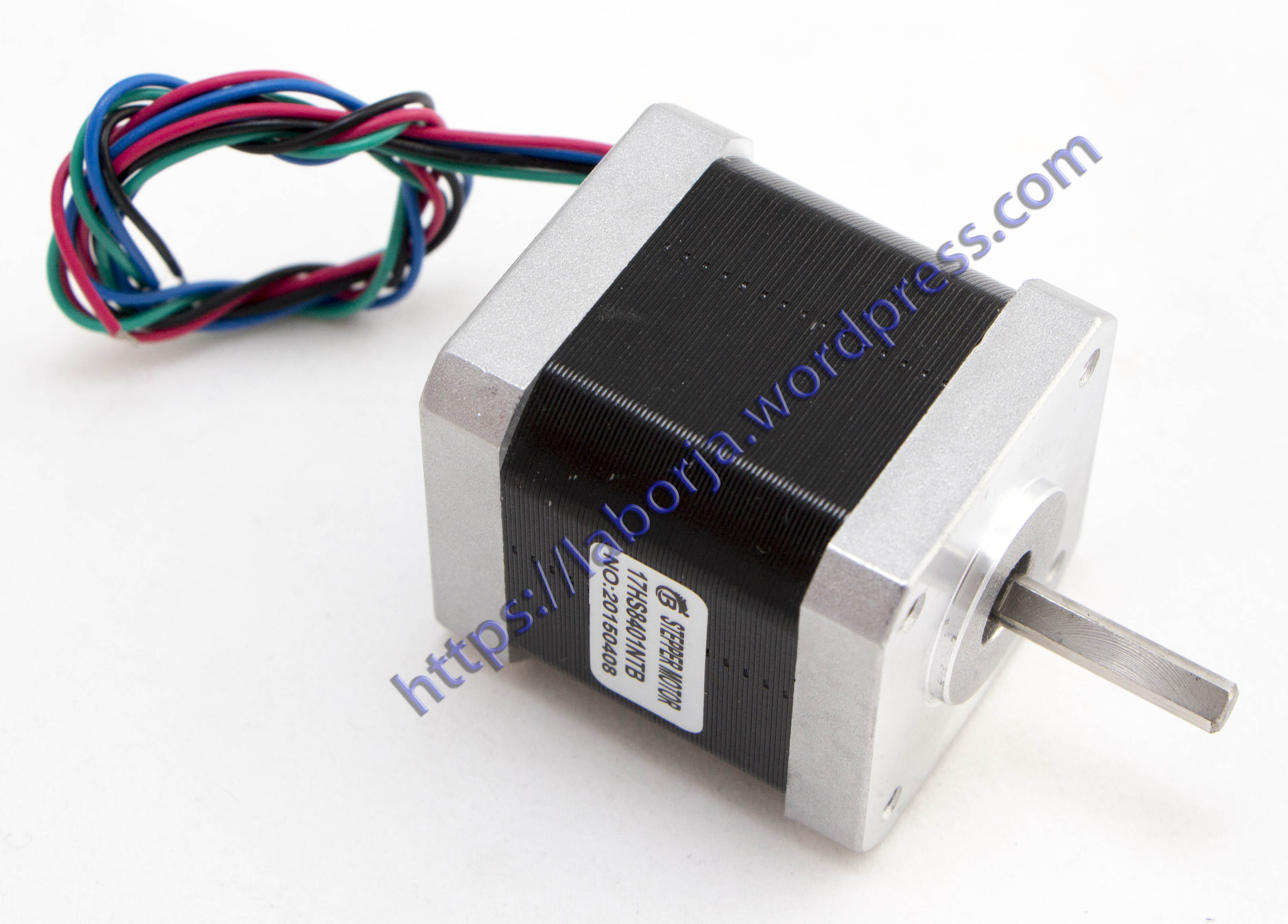

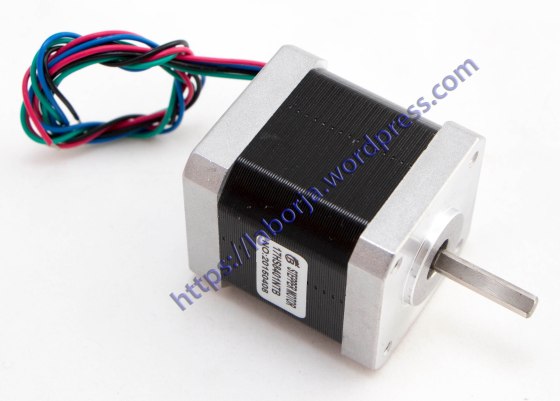

17HS8401 4-lead Nema 17 Stepper Motor 42 motor 42BYGH 1.8A CE ROSH ISO CNC Laser and 3D printer

Product Description:
Model: 17HS8401
Phase: 2
Step Angle (deg): 1.8
Motor Length (mm): 48
Rated Current (A): 1.8
Phase Resistance (Ohm): 1.8
Phase Inductance (mH): 3.2
Holding Torque (N.cm): 52
Detent Torque (N.cm): 2.6
Rotor Inertia (g.cm2): 68
Lead Wire (No): 4
Motor Weight (g): 400

Motor Frame Size: 48*42mm
Shaft: «D» 21mm length 5mm diameter
Outlet way: Plug line

Step angle accuracy: + – 5% (full step, not load)
Resistance accuracy: + – 10%
Inductance accuracy: + – 20%
Temperature rise: 80deg Max (rated current, 2 phase on)
Ambient temperature: 20deg ~ +50deg
Insulation resistance: 100MΩ Min, 500VDC
Insultion Strength: 500VAC for one minute

Pinouts:
Red: A+
Green: A-
Black: B+
Blue: B-
