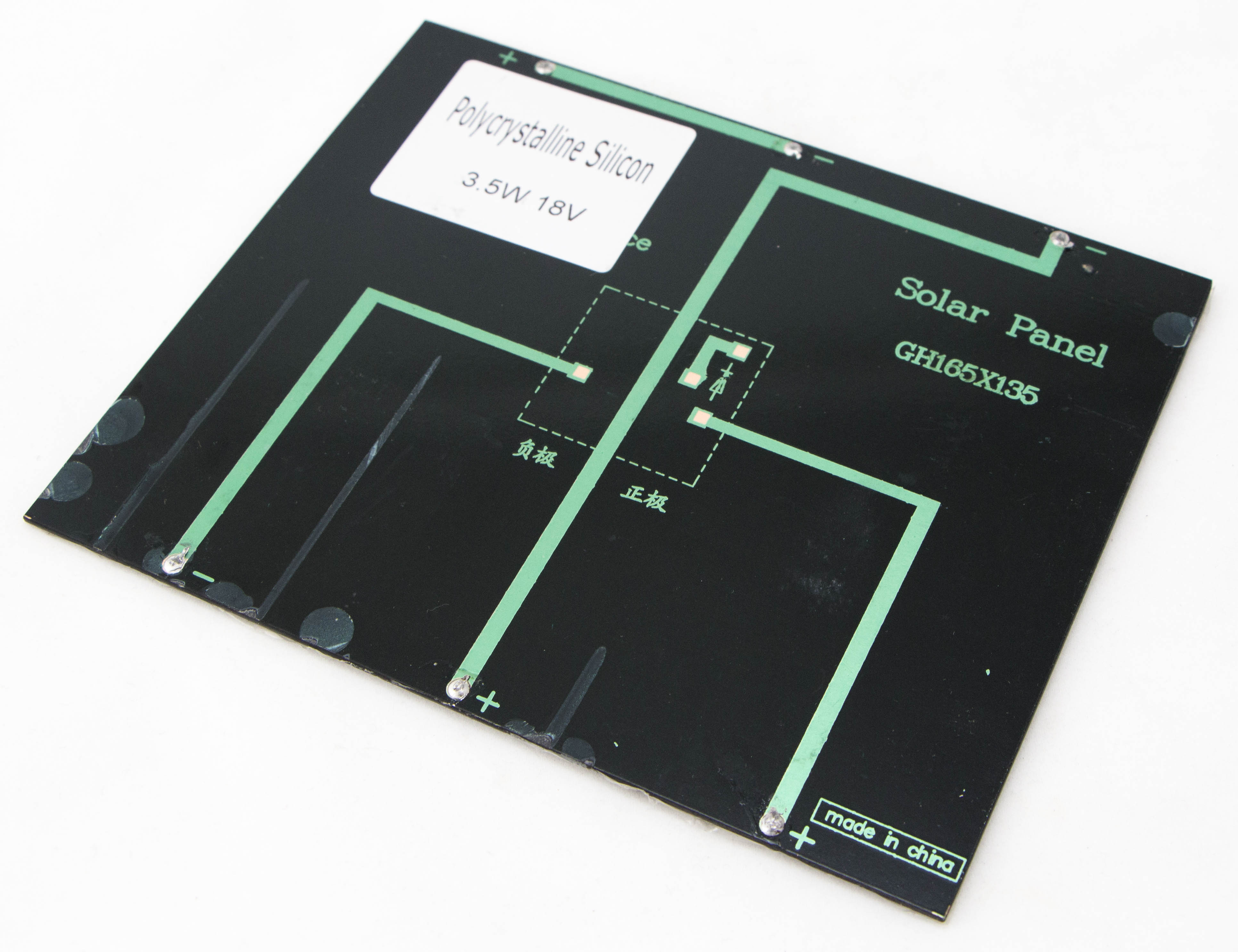

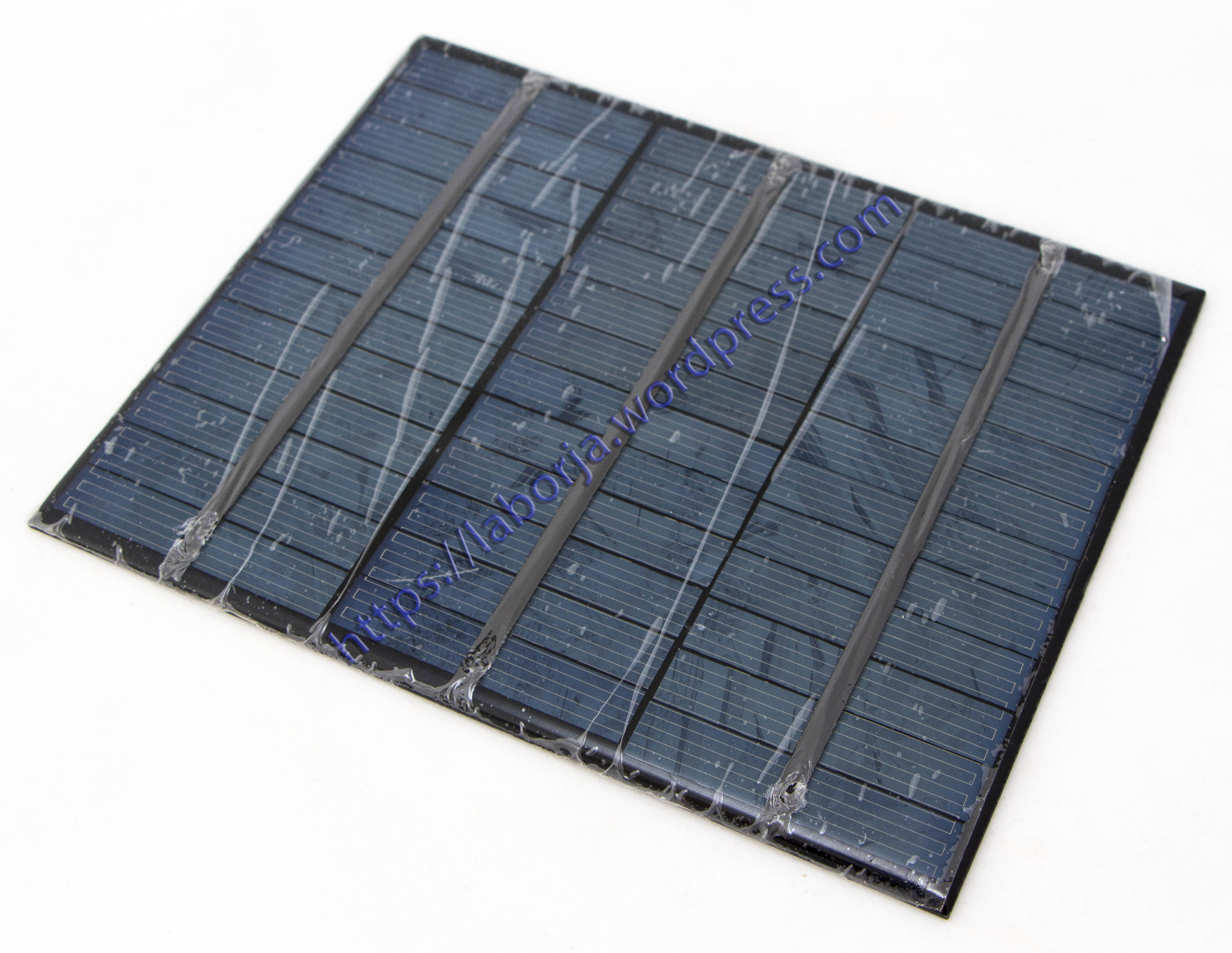

3.5W 18V Solar Cell Polycrystalline Solar Panel DIY Solar System
Product Description:
ROHS approved mini Solar panel
The solar cells are encased and protected by a durable outer poly frame
Polycrystalline silicon
Max work voltage: 18V
Max work current: 0-190ma MAX
power: 3.5W
Dimension: 165mm×135mmx3mm
Applications:
Small home projects.
Science projects.
Electronic applications.
Charging small DC Batteries.
Build your own self powered models / Toys / Solar Display.
How to choose solar panel :
This table show the solar system configuration relationship between storage batteries and solar panels.
DC Storage Battery
|
Solar Panel
|
1.2V
|
2V ~ 2.5V
|
2.4V
|
3.5V ~ 4V
|
3.6V
|
5V ~ 6V
|
6V
|
7.5V ~ 9V
|
12V
|
15V ~ 18V
|
Packages include:
1 18V 3.5w solar panel
