Mini USB Host Shield 2.0

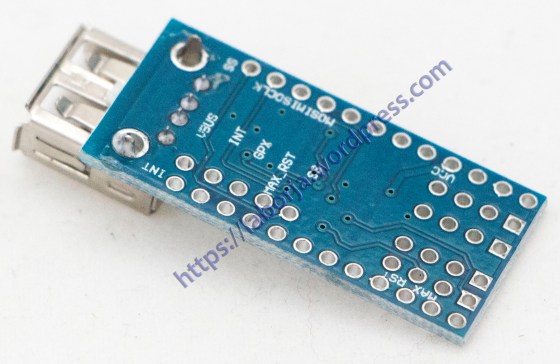

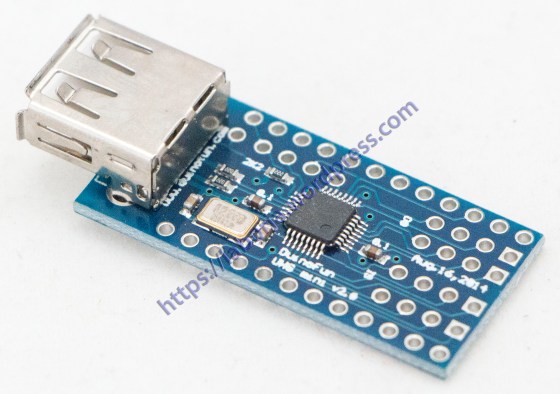

MiniUSB Host a MiniUSB Host b

Mini USB Host Shield 2.0 for Arduino ADK SLR Development Tool

Product Description:
This is USB Host Shield designed to be easily combined with «Mini» variant of Arduino Board, specifically, Sparkfun 3.3V Arduino Pro Mini. It will also work with other 3.3V Arduinos. Also, due to its’ small size it can be used as general MAX3421E breakout board.
This shield is fully compatible and supported by USB Host Shield Library. Arduino Pro Mini is not included.

USB Shield category
Project files including schematic diagram and board layout in Eagle CAD format
Schematic in PDF format
Hardware Manual
Arduino library and examples, hosted on GitHub

Driver and example
