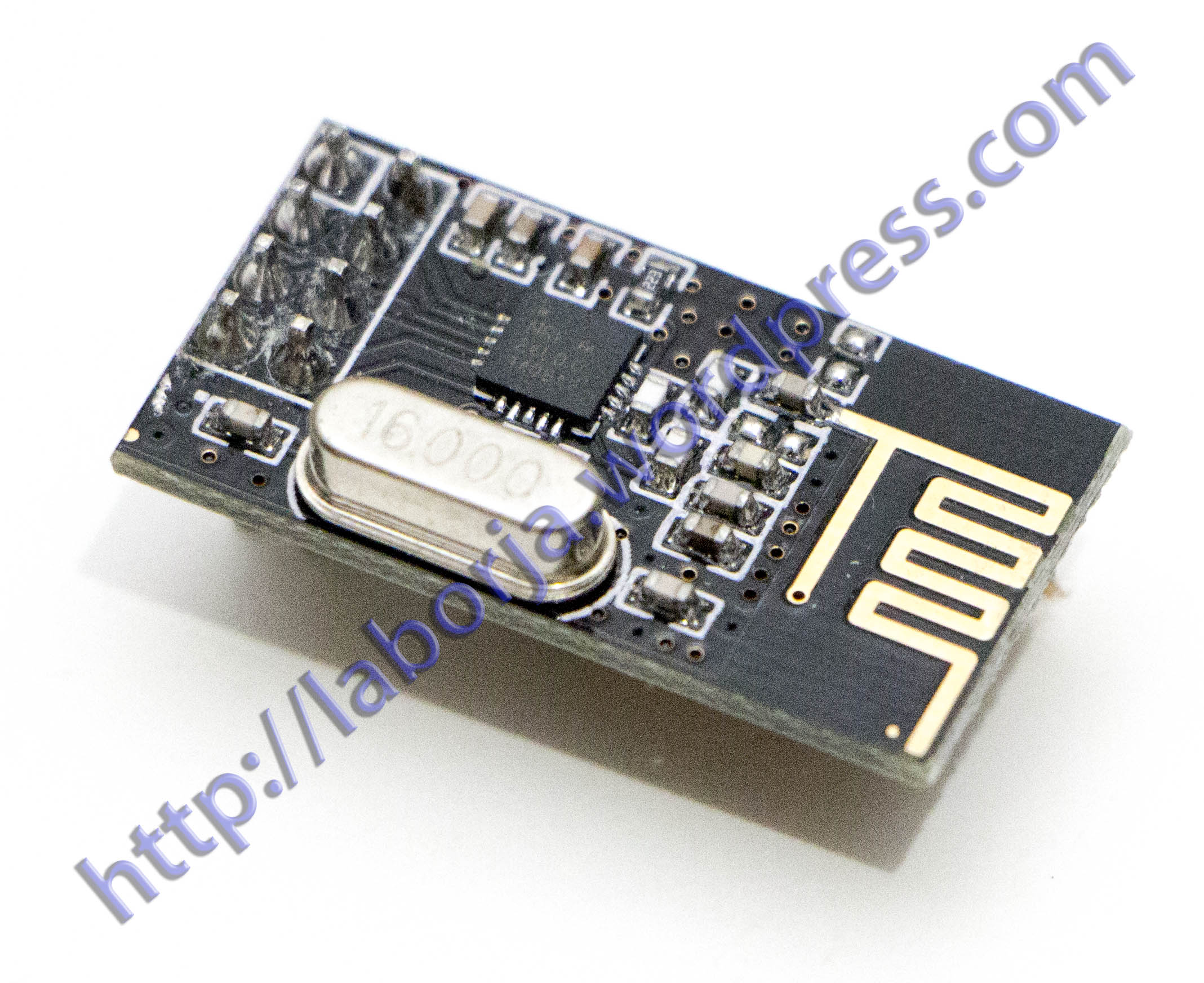

NRF24L01 NRF24L01+ Wireless Module 2.4G


nRF24L01+ Wireless Module 2.4G Wireless Communication Module

Product Description:
nRF24L01 Module, we use the Original chip, Real nRF24L01+
This wireless Transceiver module is an easy and suitable module if you want to setup your wireless communication system with low cost!! This module can achieve a good balance between wireless transition performance and cost!
You can easily add it with your own MCU/ARM/PIC/AVR/STM32 system!

• 2Mbit/s, 1Mbit/s, 250Kbit/s, three selectable transmission rate.
• MultiCeiver hardware and six receiver functions.
• 2 Mbit/s make high-quality VoIP is possible.
• +/- 60 ppm crystal.
• Only require an external inductor in the antenna matching
• There is no need multi-layer PCB.
• 5V tolerance level inputs.
• Improved ShockBurst and the serial interface can be easy to connect with a variety of low-cost MCU.
• There si no need SPI interface with the MCU.
• Received in the rate of 2Mbit/s, the peak current is 12.5mA.
• When the rate of 2Mbit/s @ 0dBm output,the peak current is 11mA.
• Power-down mode, power consumption is 400nA.
• Standby mode, power consumption is 32uA.
• 130us fast switching and wake time.
• With voltage regulator:Oltage regulators on board.
• Built-in 2.4GHz antenna,support up to six channels of data reception.
• Low operating voltage: 1.9-3.6V
• Small size:15*29mm

Package include:
1 NRF24L01+ Wireless Transceiver Module
