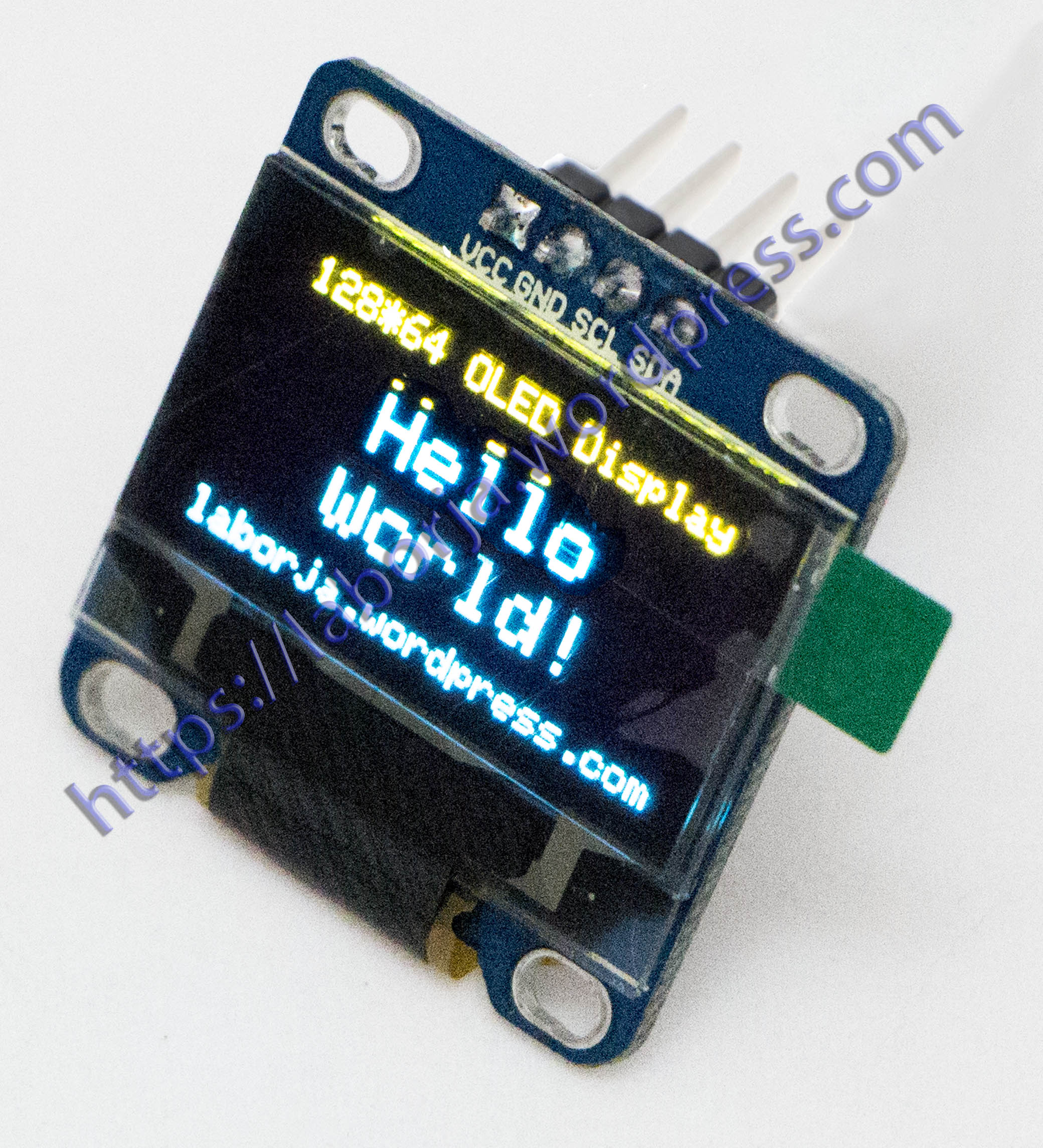

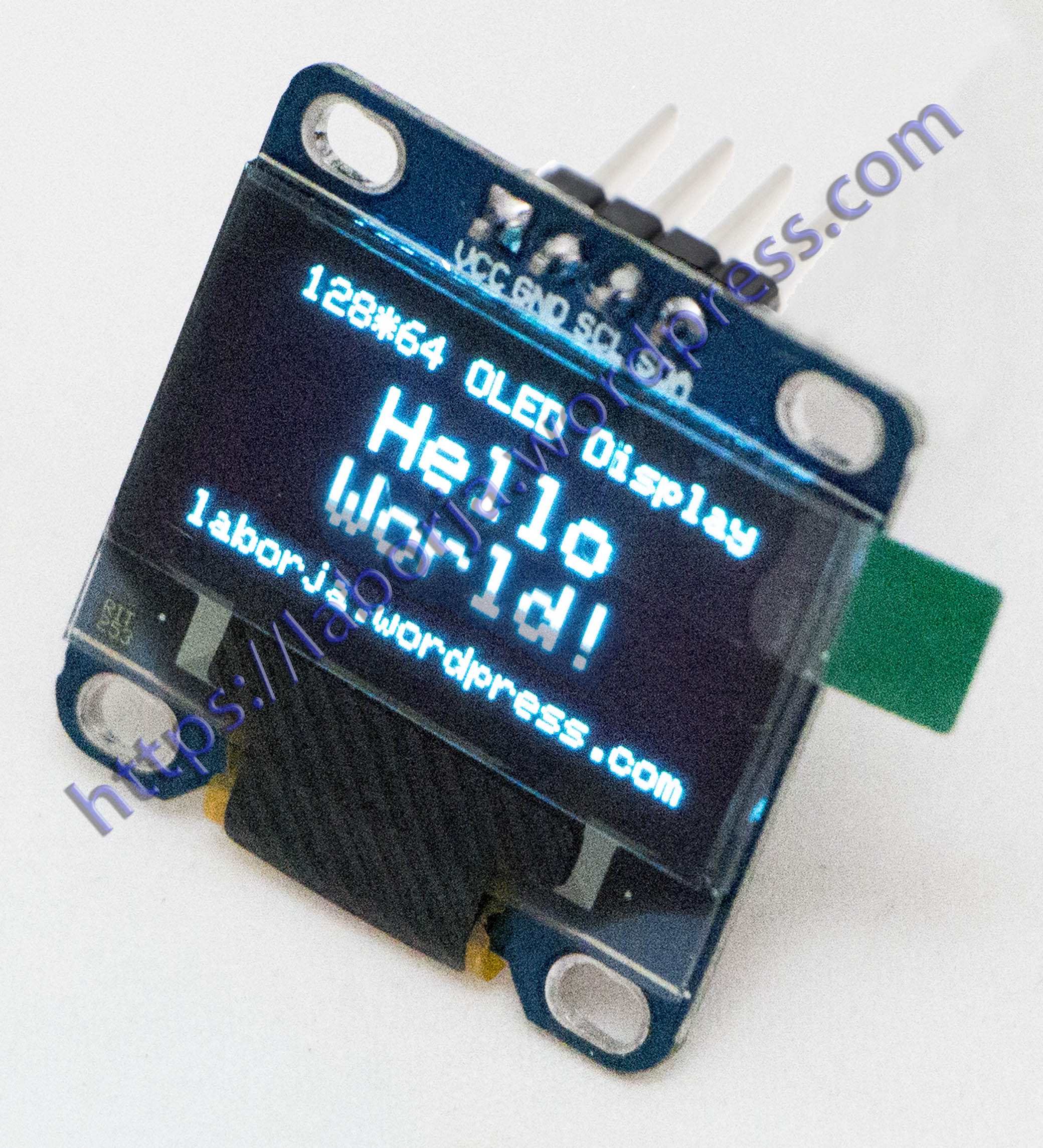

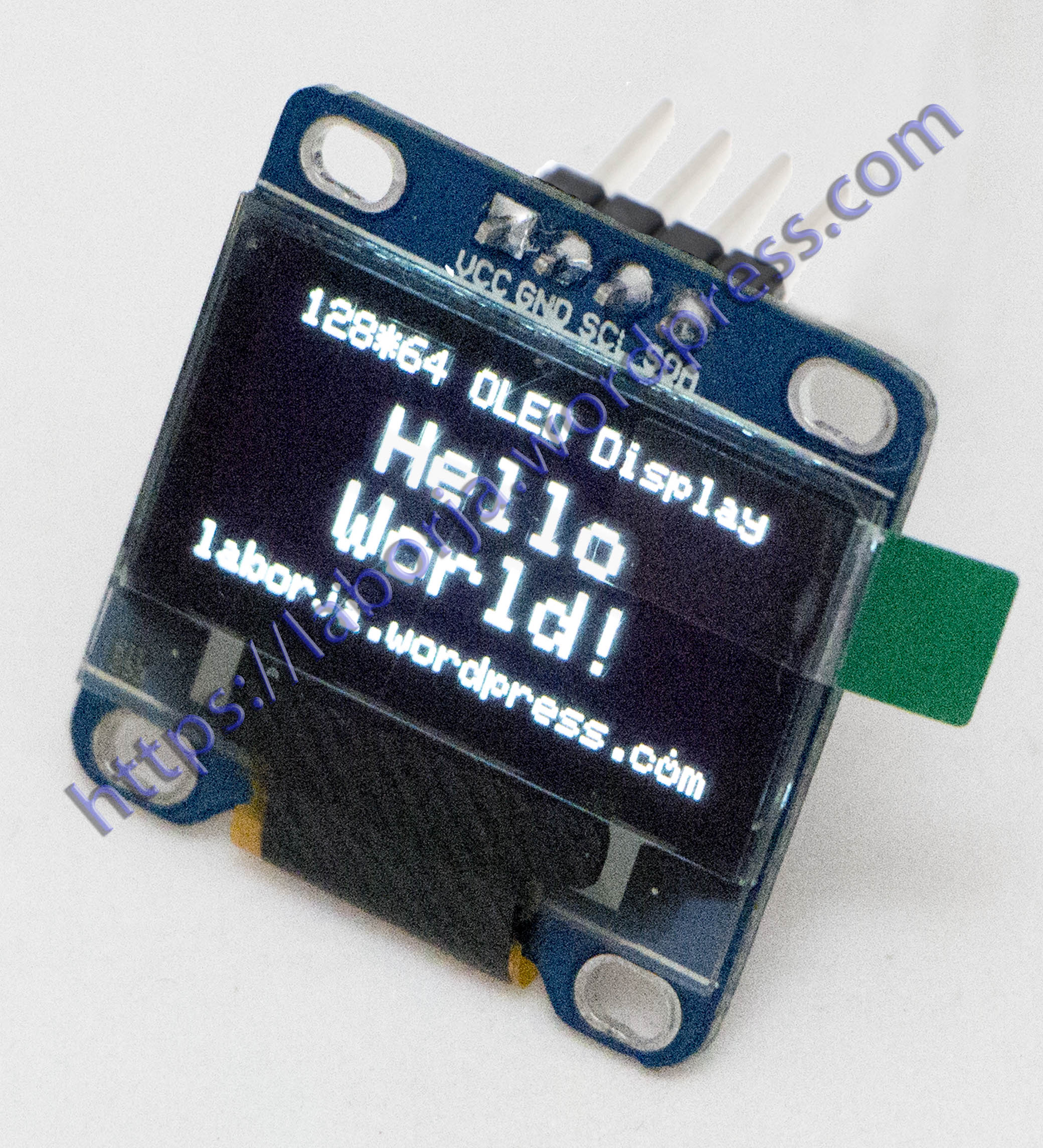

128×64 OLED LCD LED Display Module 0.96″ I2C IIC SPI Serial

Product Description:
Size: 0.96
Resolution: 128×64
Color: Blue
Viewing angle: greater than 160 degrees
Supported platforms: for arduino, 51 series, MSP430 series, STIM32 / 2, SCR chips
Low power consumption: 0.04W during normal operation
Support wide voltage: 3.3V-5V DC
Working temperature: -30-80 degrees
Volume: 27MM * 27MM * 4.1MM
Driver IC: SSD1306
Communication: IIC, only two I / O ports
No font: The software takes word modulo
Backlight: OLED self light, no backlight

Interface:
VCC: 3.3-5V
GND: Ground
SCL: Serial Clock
SDA: Serial Data

Download Information
Download Bitmap Converter

Package Included:
1 IIC OLED Moudle
