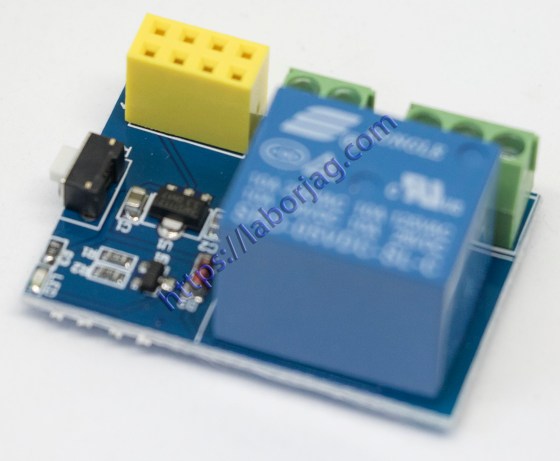

ESP-01S 5V WiFi Relay Module v1.0

ESP8266 ESP-01S 5V WiFi Relay Module Things Smart Home Remote Control Switch Phone APP For Arduino (Without ESP-01S)

Product Description:
This WIFI relay based on AI-Thinker ESP-01S WIFI module. It is designed for smart home, Internet of thing and other DIY project. With this smart relay, you will easy to DIY your smart switch to control any device by your phone anywhere. We support the APP and LUA source code.
We had upload a demo code in the ESP0-01S, just supply a DC5V power, then you can control it.

Product parameters:
Product size: 37 * 25mm
Operating voltage: DC5V
Communication: WIFI (ESP8266 module)
Transmission distance: the maximum transmission distance of 400m (open environment, mobile phone equipped with WIFI module)
Load: 10A/250VAC 10A/30VDC, the relay pull 100,000 times

1. Power it by DC 5v;
2. Open your phone WLAN then connect the WiFi ESP8266-XXXX, Power word:12345678
3. Open the ESP8266 ( Installed it in your android phone before)
4. Set IP Address: than you can control your device via the wifi relay module:

Package list:
1 ESP8266 ESP-01S Relay Module (Not Includ ESP-01S WIFI Module)
