Nano Pi 2

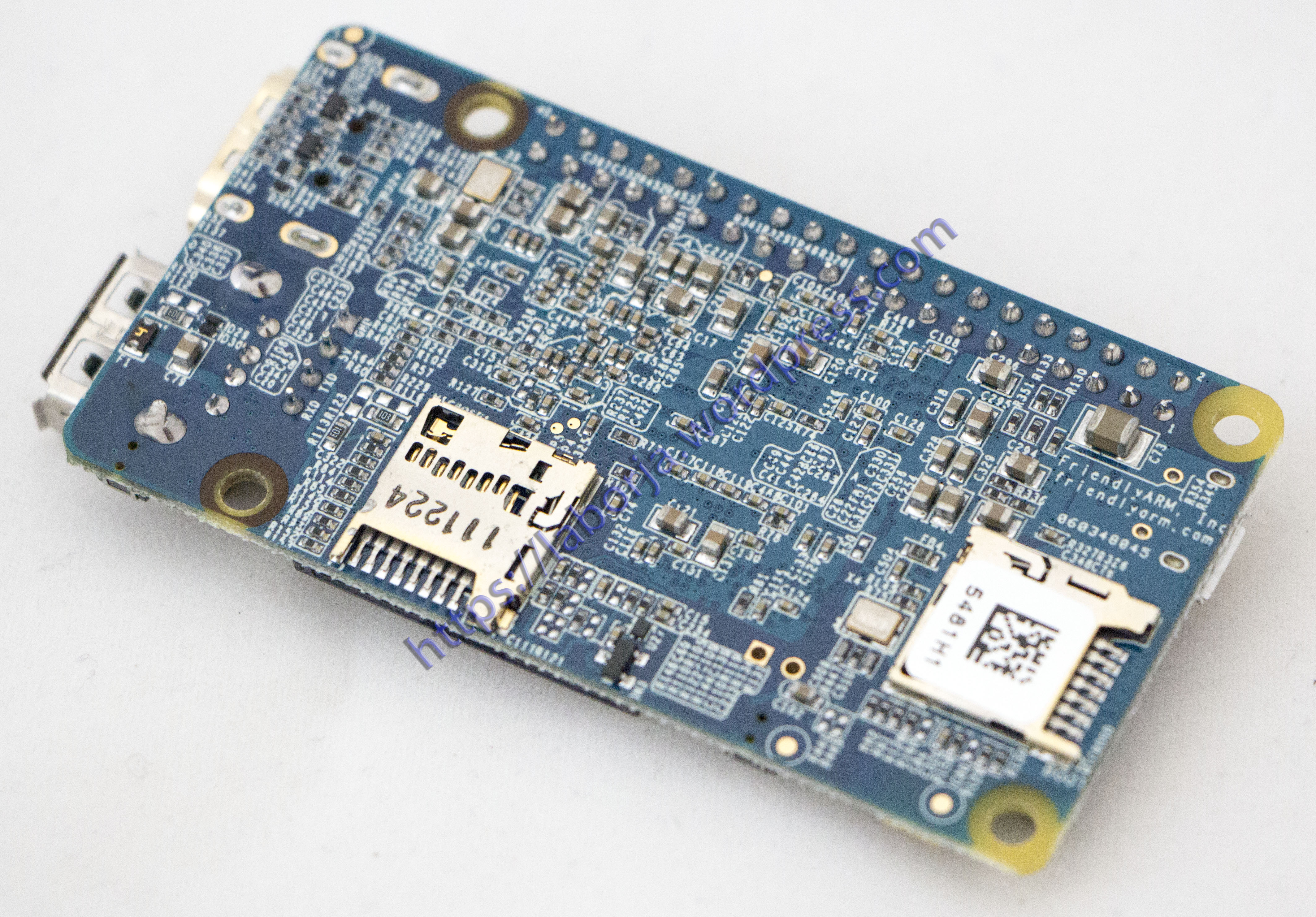

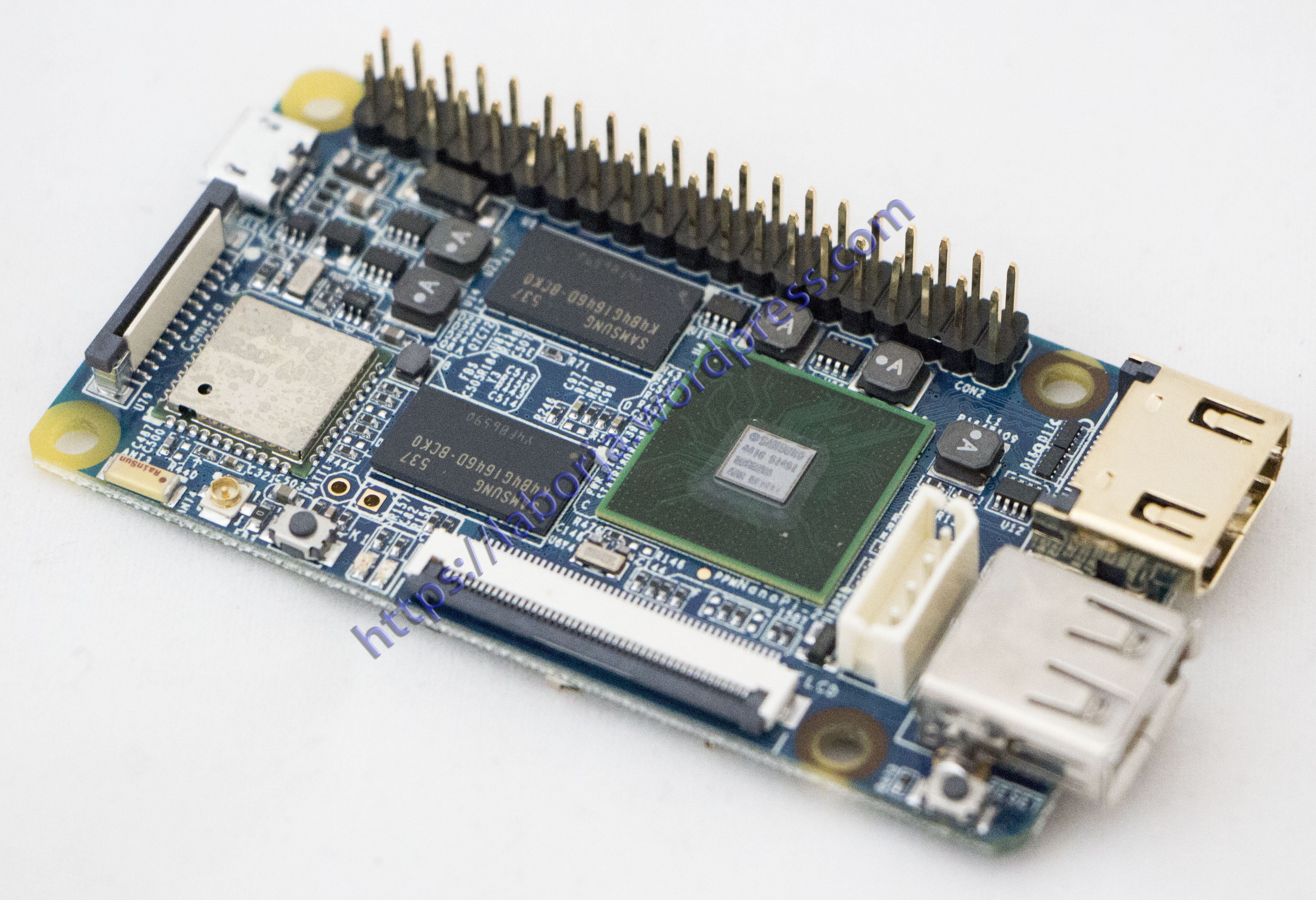

Nano Pi a Nano Pi bNano Pi 2 Nano Pi Cortex-A9 S5P4418 Bluetooth WiFi Development Board

Product Description:
The NanoPi-2 is a newly released ARM board by FriendlyARM which advances the NanoPi by featuring Samsung’s S5P4418 Quad Core A9@1.4GHz processor, 1G 32bit DDR3 RAM, rich video and display interfaces and two MicroSD slots. Its Quad Core A9@1.4GHz processor and 1G RAM make Linux and Android booted from a TF card fast and smoothly. Its adoption of the Raspberry Pi’s GPIO pin header makes it compatible with both Raspberry Pi’s external GPIO modules and Arduino’s shield boards. Its two MicroSD slots make it support up to two external TF cards’ storage. Its video and display interfaces include a DVP camera interface, an HDMI interface and an LCD interface which make it work with various popular display devices. The NanoPi2’s on-board AP6212 Wireless and Bluetooth chip supports 802.11 b/g/n, AP mode, BLE 4.0 and HS mode.
On the NanoPi-2s wiki FriendlyARM open sources its schematics, PCB, bootloader, kernel and file systems, and provides plenty of tutorials and code samples.

Feature:
SoC: Samsung S5P 4418 Quad Core Cortex-A9, 1.4G Hz
System Memory: 1GB 32bit DDR3 RAM
Storage: 2 x Micro SD Slot
Connectivity: AP6212 Wireless and Bluetooth, 802.11 b/g/n, AP mode, BLE 4.0, HS mode
HDMI: 1 x HDMI 1.4A, Type-A
LCD: 0.5 mm spacing 45 pin interface
Camera: 0.5mm spacing 24 pin DVP interface
GPIO: 40 pin GPIO pin header, compatible with Raspberry Pi’s GPIO pin header
Debug Serial Port/UART0: 2.5 mm spacing 4pin interface
USB: 1 x USB 2.0 host Type-A; 1 x Micro USB for data transmission and power input
OS: Android and Debian
PCB: Six-layer
Dimension: 75 x 40 mm
Weight: 22 g
Power: DC 5V
Bootloader and OS: u-boot, Linux-4.1 and Debian
