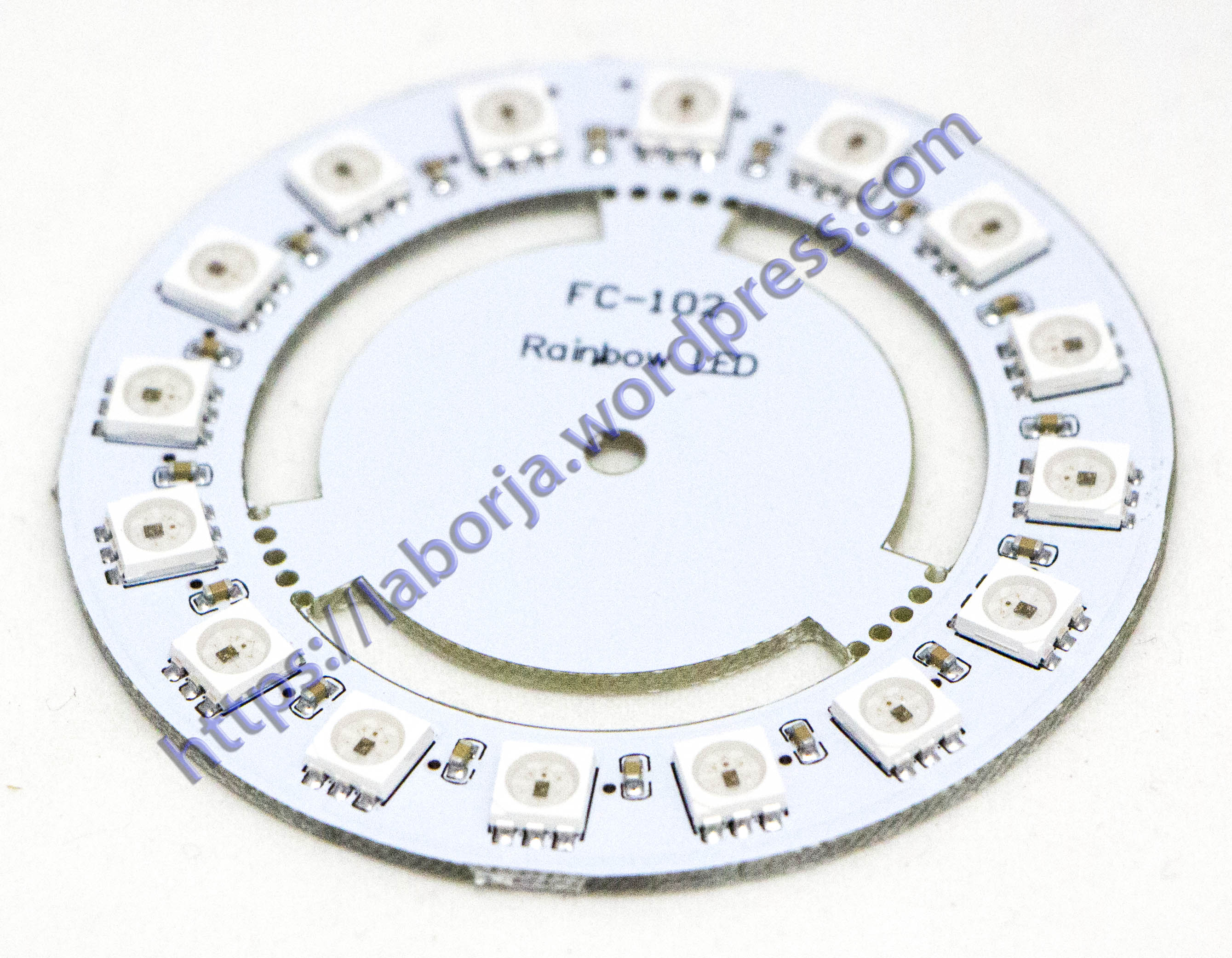

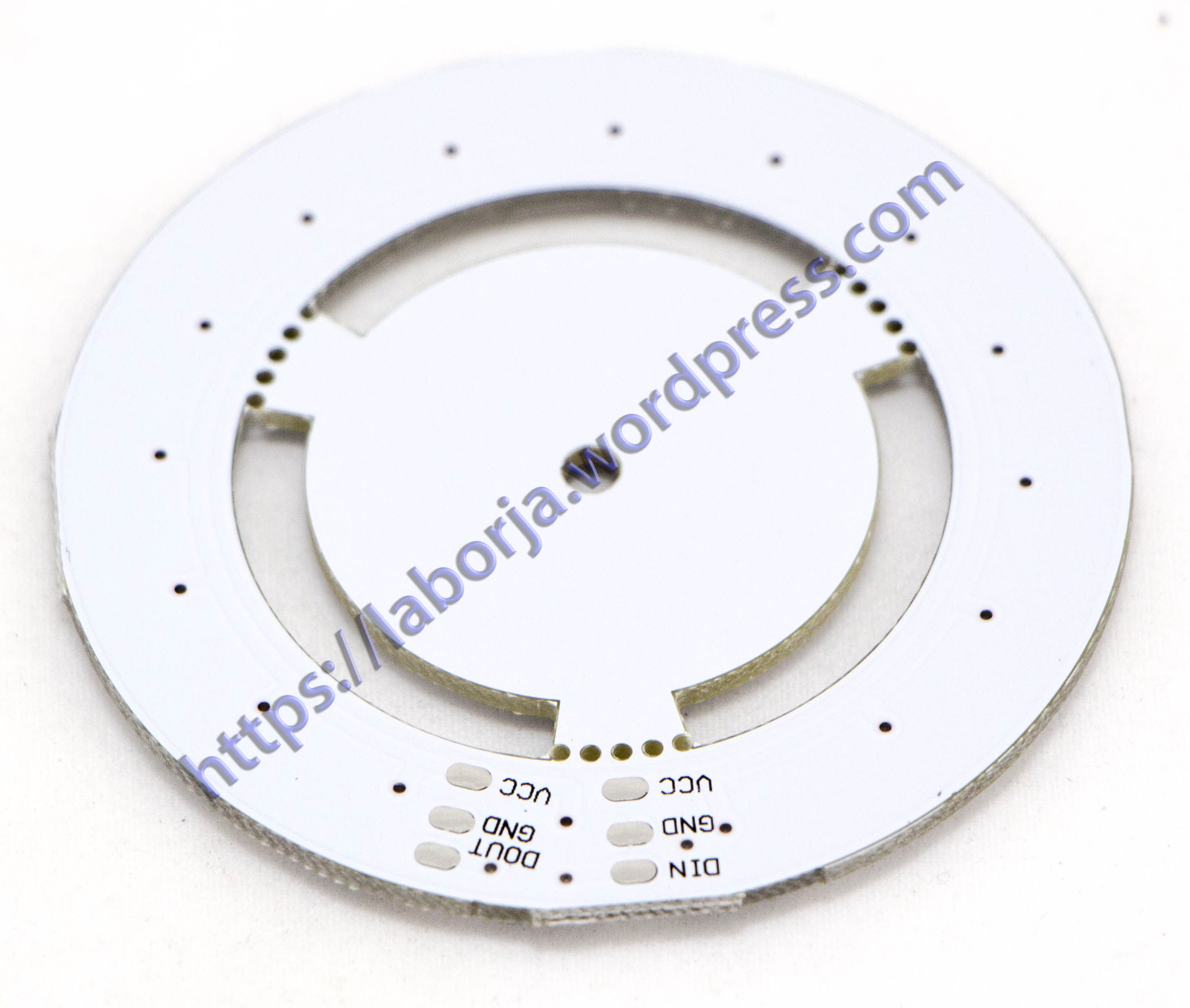

WS2811 5050 RGB LED Module Lamp Panel Round

Rainbow LED 1Rainbow Led 2

WS2811 5050 RGB LED Module Lamp Panel Round 16-Bit 60mm 5V Rainbow Precise

Product Description:
Model: 16 Round 5050 full-color LED module
Dimensions: Diameter 60mm
Chip: WS2811 (built-in LED)
LED: 5050 RGB full color highlight package
Voltage: 5V
Port: Digital
Platform: for Arduino microcontroller
5050 highlight LED, built-in control chip, only an IO port to control multiple LED
Chip built shaping circuit, signal distortion is not cumulative, stable display
Adjust brightness tricolor 256, 160,000-color TFT display, scanning frequency of not less than 400Hz / S
Serial even level interface, via a signal line to complete the reception and decoding of data
Refresh rate of 30 frames / sec, even low-level mode even series of not less than 512 points
Send and receive data at speeds up to 800Kbps
Highlight LED, light color high brightness consistency
Both ends even level interface, can be connected directly

Download Library
Arduino and WS2812 LEDs

Package Included:
1 WS2811 5050 RGB LED Module
