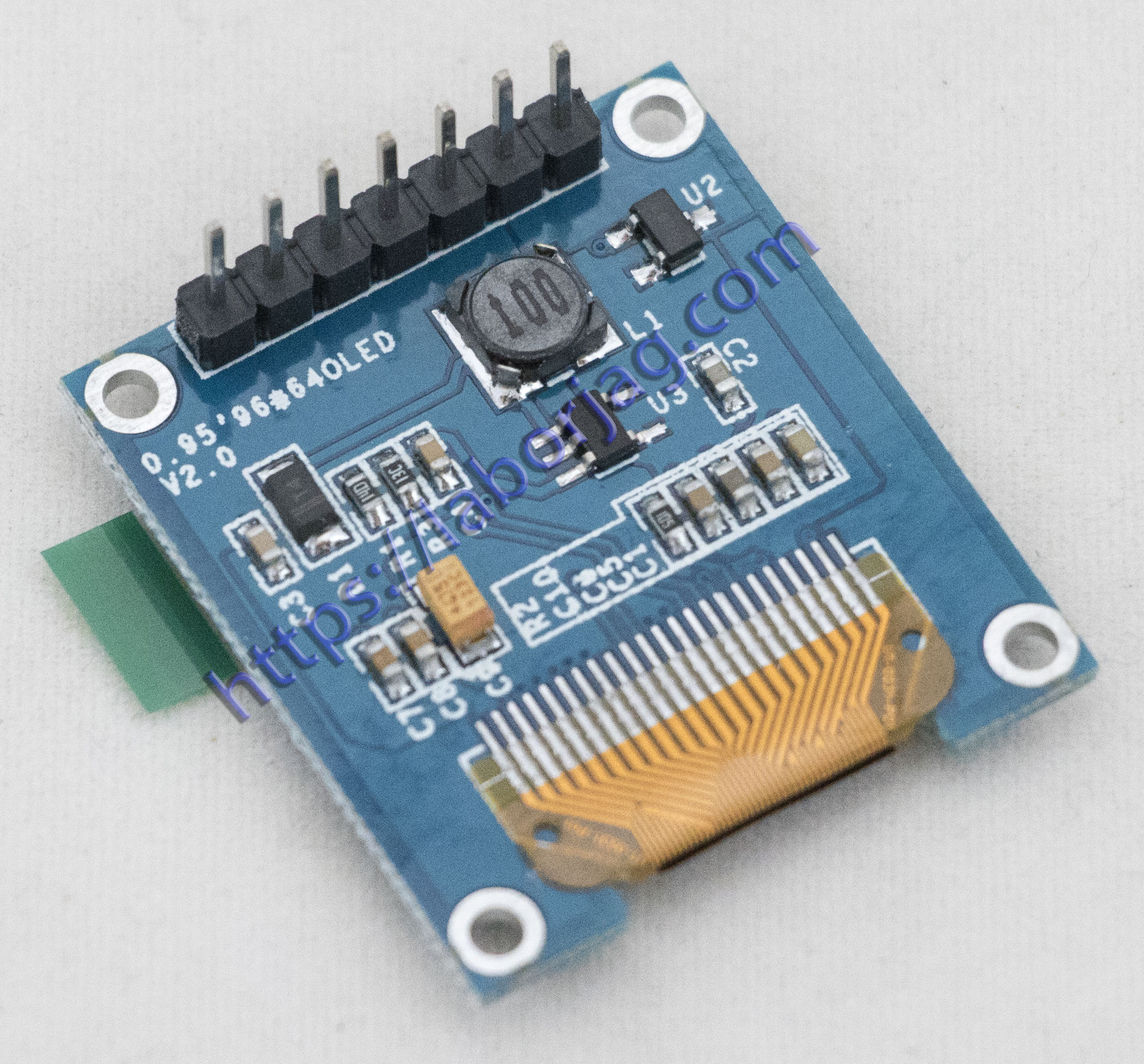

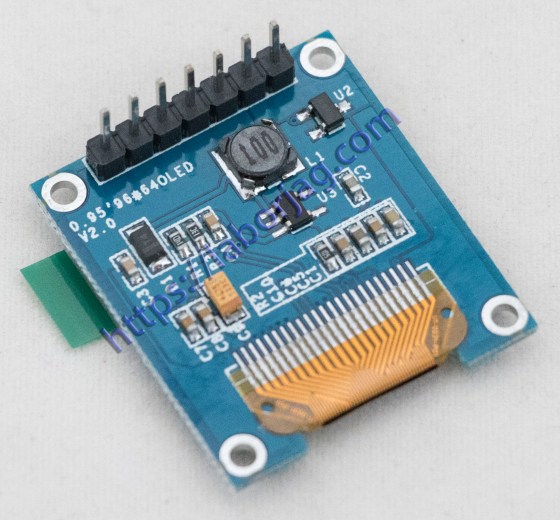

OLED Color 96×64 LCD LED Display

0.95 Inch SPI Full Color OLED Display DIY Module 96×64 LCD SSD1306 Driver IC

Product Description:
OLED (Organic Light-Emitting Diode) is a self light-emitting technology composed of a thin, multi-layered organic film placed between an anode and cathode. In contrast to LCD technology, OLED does not require a backlight. OLED possesses high application potential for virtually all types of displays and is regarded as the ultimate technology for the next generation of flat-panel displays.

The use of OLED technology offers the following advantages for flat-panel displays?
1. A simplified manufacturing process compared to TFT-LCD
2. Self-emitting light, in contrast to the required backlight for TFT-LCD
3. High luminosity
4. Lightweight and thin
5. Capable of wide viewing angles
6. Low operating voltage and power consumption
7. Quick response
8. Wide range of operating temperatures (-40c to 85c)

Features:
Item name: 0.95 inch SPI OLED Display
Resolution: 96*64
Color: 65536 Colors
Driver IC: SSD1331

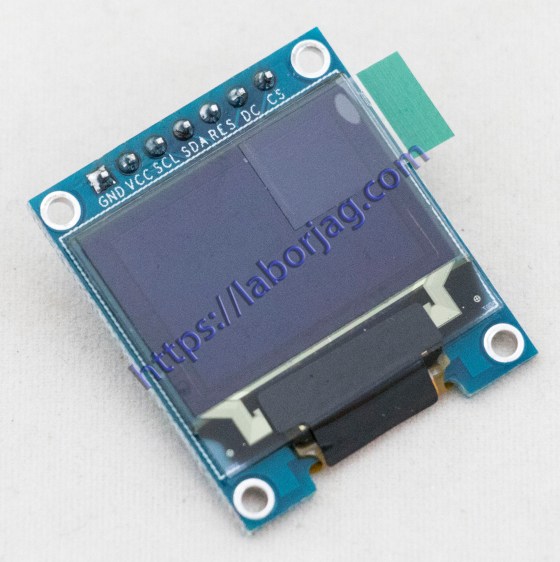

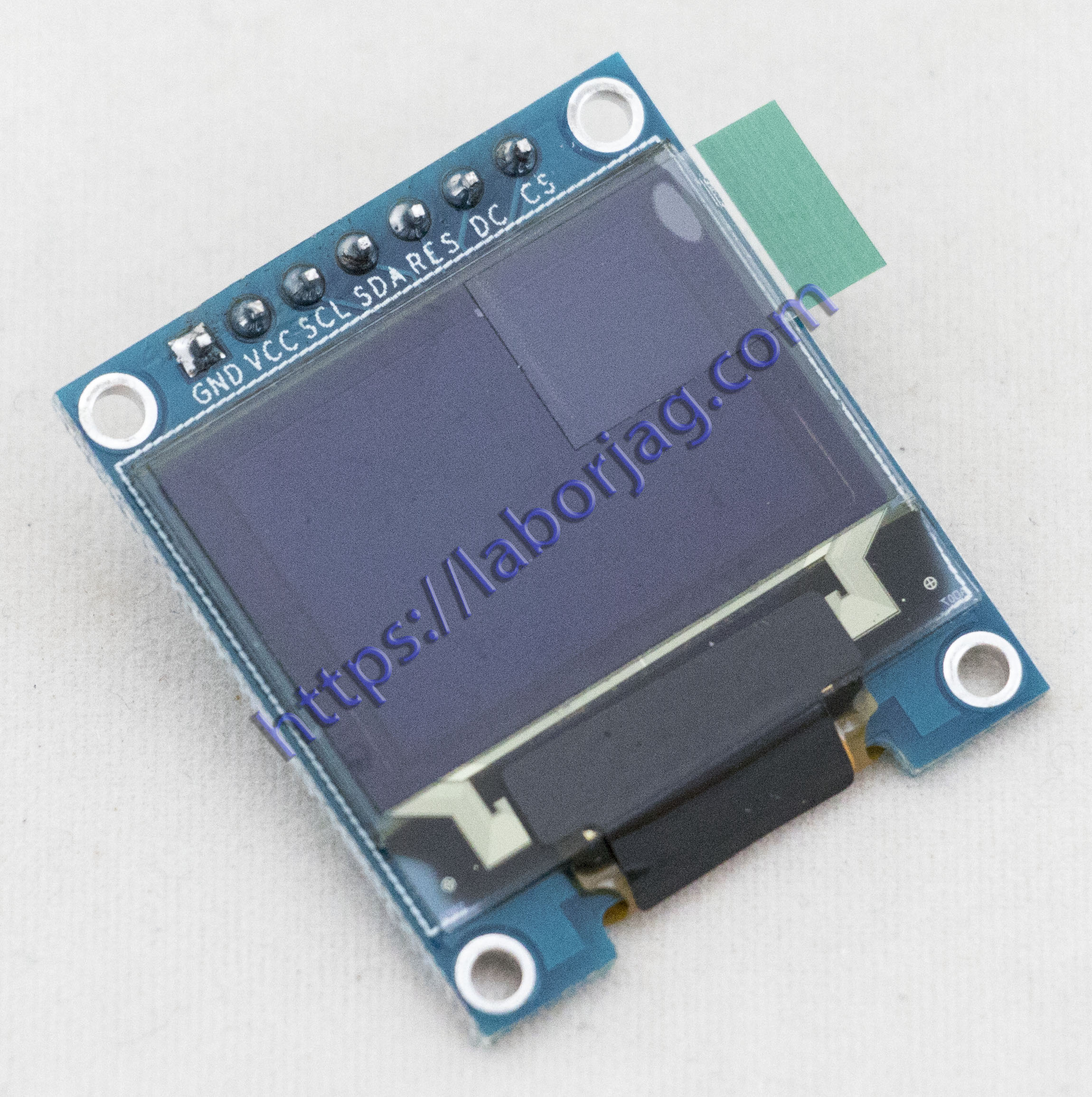

Definition of SPI Connector:
GND – Gound
VCC – Positive Voltage
SCL – Clock Line
SDA – Data Line
RES – Reset
DC – Data/Demand
CS – Chip Select

Datasheet DM-OLEDC095-626
Datasheet SSD1331
Arduino SSD1331 Library

Package Included:
1  0.95 inch Full Color SPI OLED Display
