XC6206 3.3V/0.5A Positive Fixed LDO Voltage Regulator

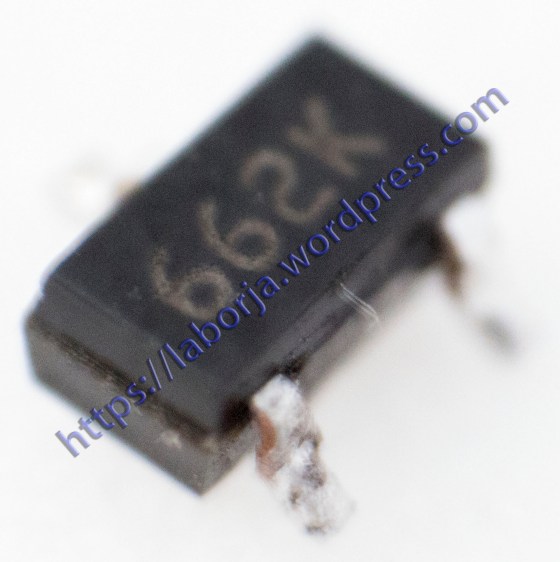

662K

XC6206P332MR 662K XC6206 3.3V/0.5A Positive Fixed LDO Voltage Regulator SOT-23

Product Description:
The XC6206P332MR is a fixed output positive low dropout (LDO) voltage regulator in 3 pin SOT-23 package. It is a highly precise, high voltage positive voltage regulator manufactured using CMOS and laser trimming technologies. The device provides large currents with significantly small dropout voltage. The XC6206P332MR consists of current limiter circuit, driver transistor, precision reference voltage and an error correction circuit. It is compatible with low ESR ceramic capacitors. The current limiter’s foldback circuit also operates as a short protect for output current limiter and output pin. Output voltage can be set internally by laser trimming technology.

Fixed output voltage of 3.3V
200mA output current
Dropout voltage of 250mV at 100mA output current
Input voltage range from 1.8V to 6V
Low power consumption is typically 1μA
Operating temperature range from -40°C to 85°C

Datasheet
