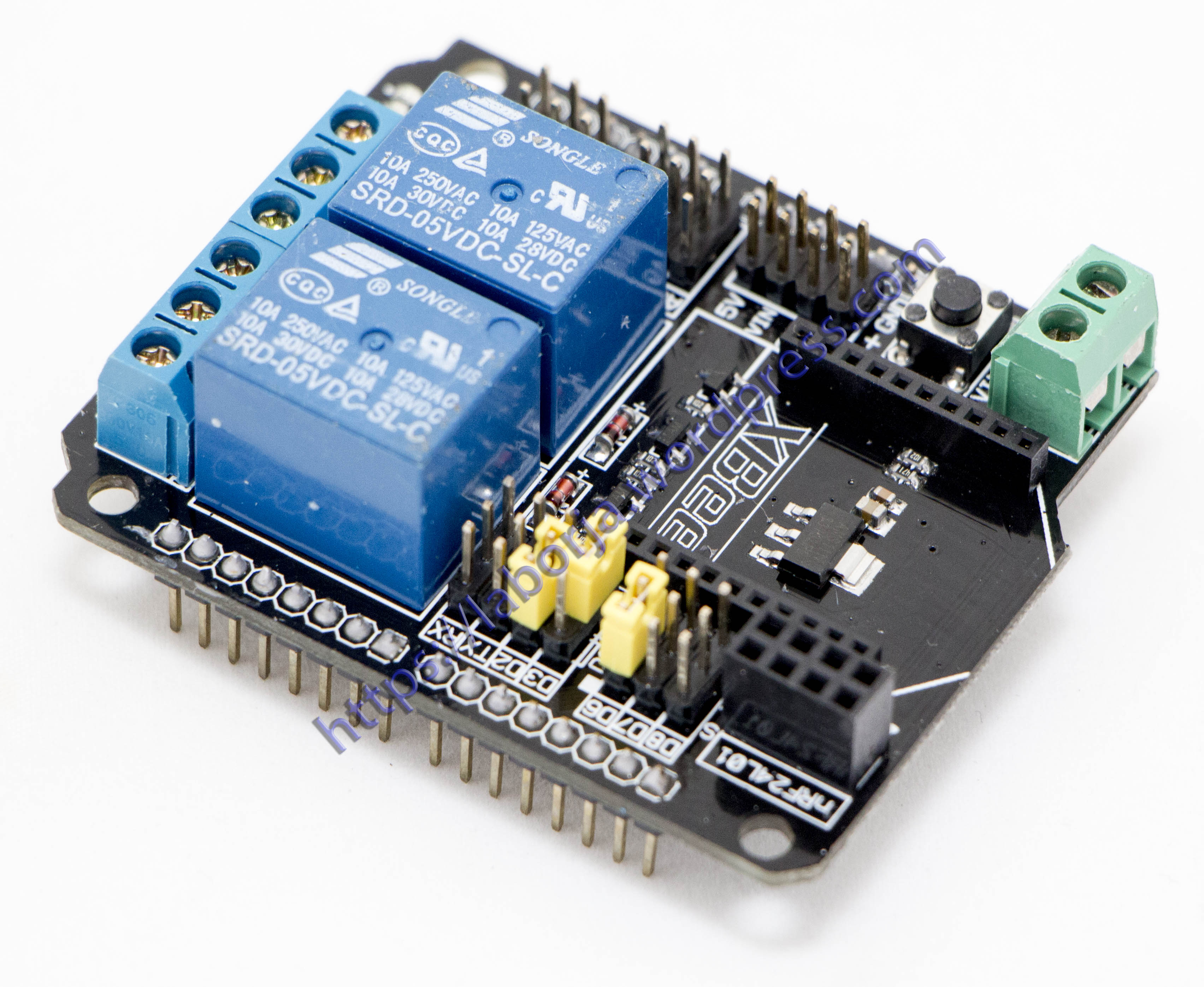

2 Channel Relay Shield (With XBee/BTBee interface)

2 Channel Relay Shield (With XBee/BTBee interface)

Product Description:
The Relay shield is capable of controlling 2 relays. The max switching power could be 10A/250VAC or 10A/30VDC. It could be directly controlled by Freaduino through digital IOs with external 9v supply. With buildin xbee/BTBee type socket, it can be wirelessly controlled via Xbee/BTBee(HC-06). Make it an ideal solution for home automation and robotics purpose.

Specification:
2 channel Relay
With XBBee/BTBee, CC1101 and nRF24L01 wireless interface
Wiht 6 sensor and 3 servo interface
Contact Rating 10A AC 250V / DC 30V
Max Switching Voltage AC 250V / DC 30V
Max Switching Current 10A
Electrical Life (Min) 100,000 Operations
Mechanical Life (Min) 10,000,000 Operations
Safety Standard(relay) UL cUL TUV CQC
Coil Working Voltage 5VDC

Wiki Page
Schematics

Package included:
1  2 Channel Relay Shield
