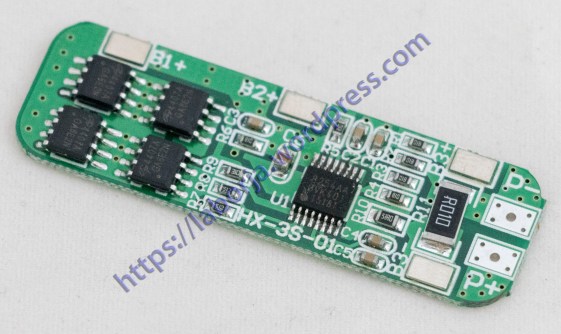

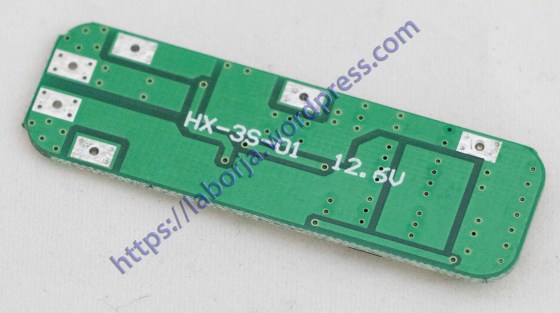

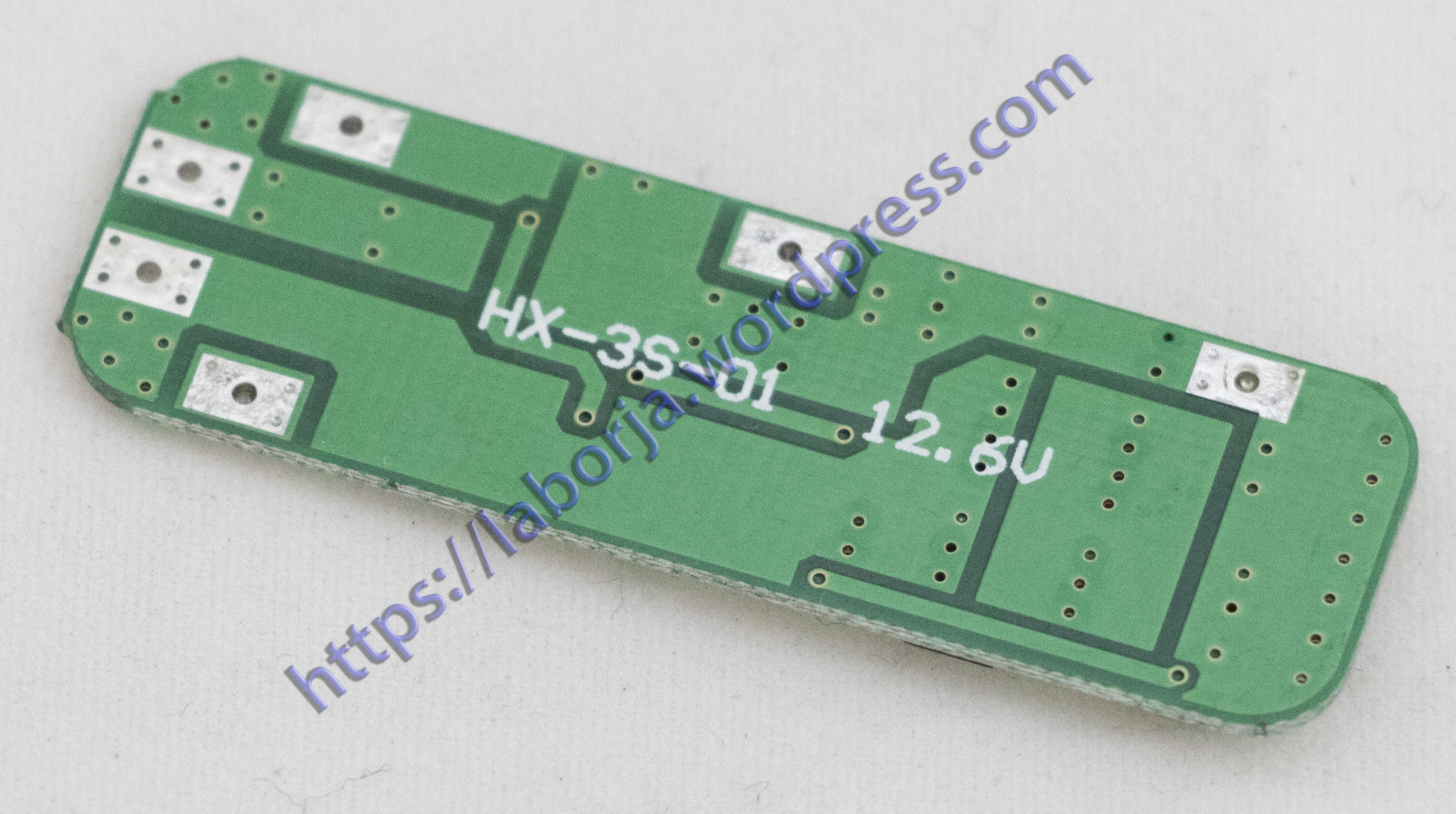

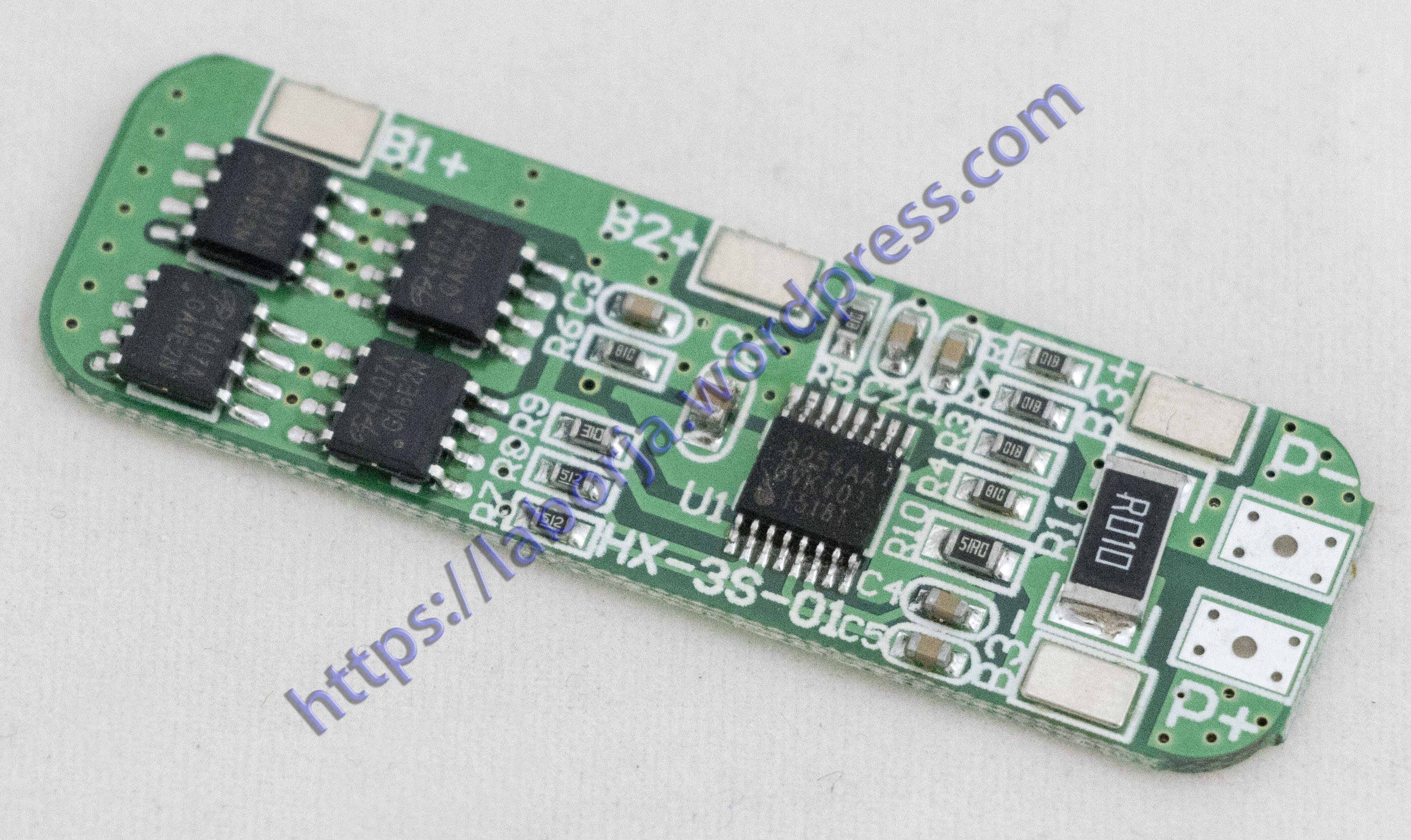

3S 6A Li-ion 12V 18650 Charger Protection Board

3s-6a-12v-a 3s-6a-12v-b

3S 6A Li-ion 12V 18650 BMS PCM Battery Protection Board BMS PCM for Li-ion Lipo Battery Cell Pack

Product Description:
11.1V (Li-ion 18650 or li-ion battery rated voltage)
12.6V (Li-ion battery full charge voltage)
10.8V ( Lipo battery pack rated voltage)

The lithium battery protection board is not included the welding tabs.

BMS activate method : Use 12.6V Li-ion charger to charge
1) high-accuracy voltage detection circuit;
2) terminal of the charger using high voltage device;
3) Built-in three-stage over-current detection circuit (over-current 1, over-current 2, or load short circuit);
4) MOS transistor can control the battery charge and discharge;
5) low standby current consumption.

Over Charge voltage:4.25-4.35v±0.05v
Over Discharge voltage: 2.3-3.0v±0.05v
Max Working current:4-5A
Max peak current:6-7A
Working temperature:-40—+50
Storage Temperature:-40– +80
Small current:6uA
Life cycle:more then 50000 hours
Resistance:Less than 45m
Short Cut:Protectable,Charge can repair
