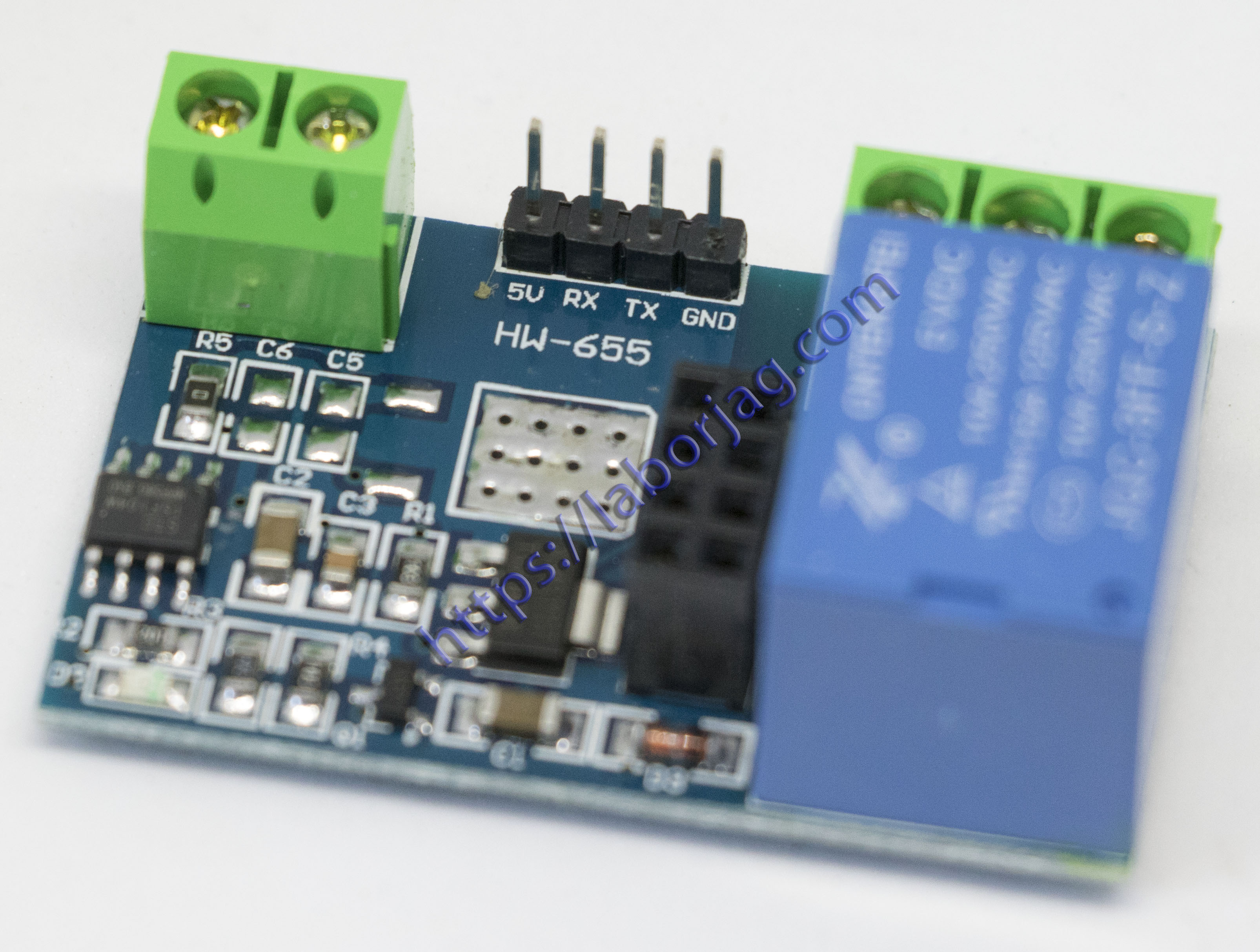

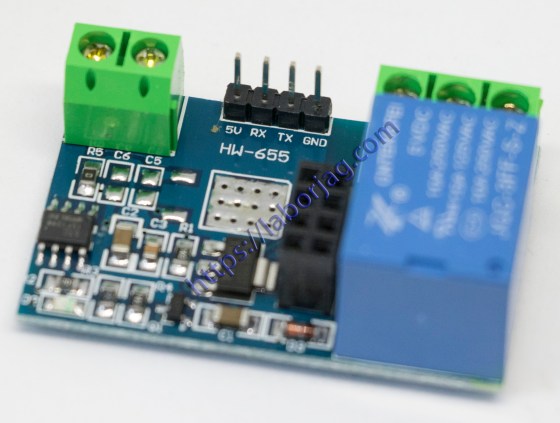

ESP-01S 5V WiFi Relay Module v2.0

ESP8266 ESP-01 DC 5V WiFi relay Module Things Smart Home Remote Control Switch Phone APP For Arduino (Without ESP-01)

Product Description:
Product size: 45 * 28mm
Operating voltage: DC5V
Communication: WIFI (ESP8266 module)
Serial communication parameters: 9600,8,1,0,0
Transmission distance: the maximum transmission distance of 400m (open environment, mobile phone equipped with WIFI module)
Load: 10A/250VAC 10A/30VDC, the relay pull 100,000 times

Way of working:
Mobile phone equipped with WiFi module;
Mobile phone and WiFI module equipped with the same router, through the mobile phone APP to control the relay; this mode, the transmission distance depends on the signal router.

ESP8266 module has a timeout mechanism, when the phone for some time (the default 180S) did not give instructions to the module, the module will kick off the phone, the computer can send AT + CIPSTO =

Shipping list:
1 ESP2866 Relay Module (Without ESP8266)
