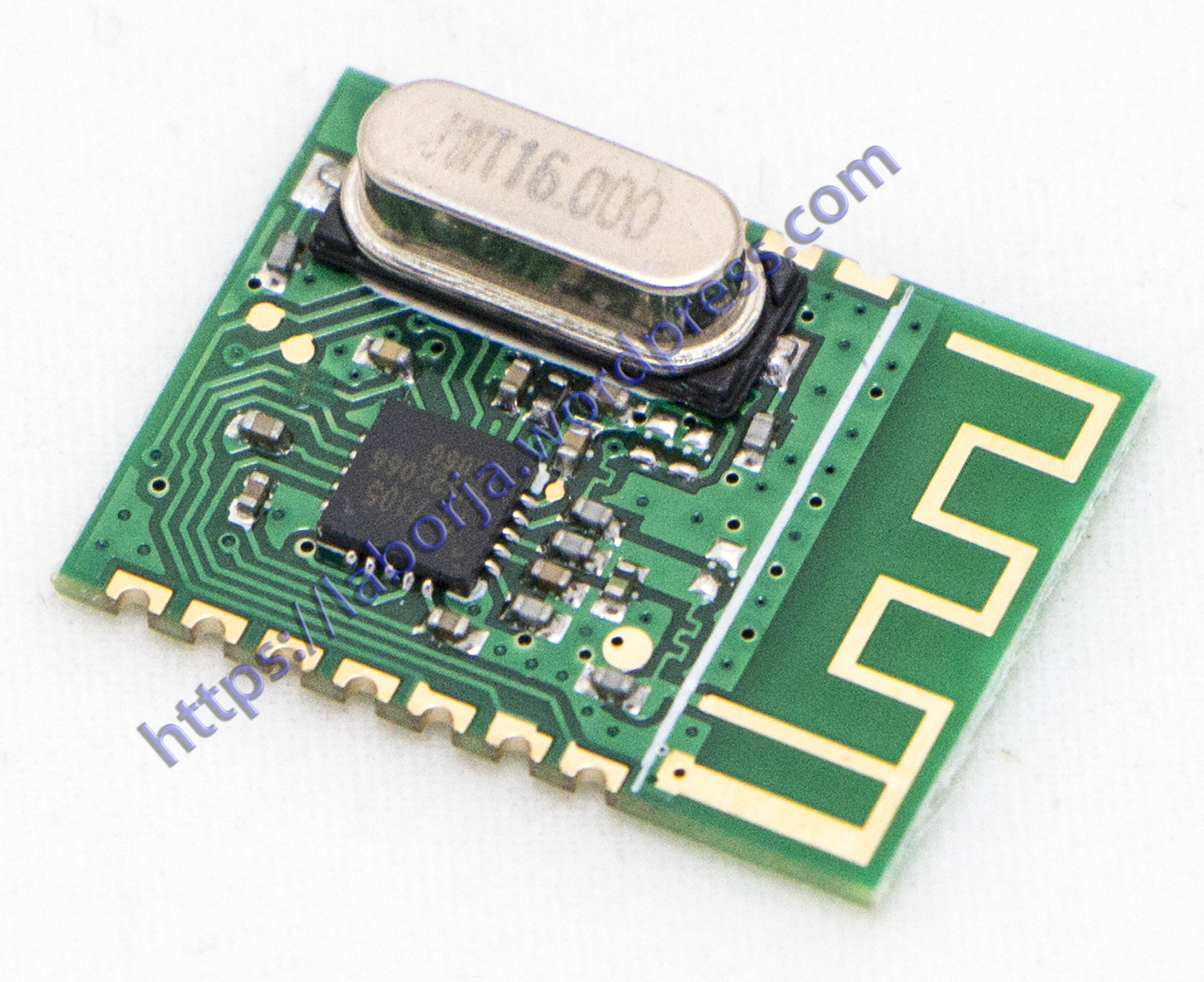

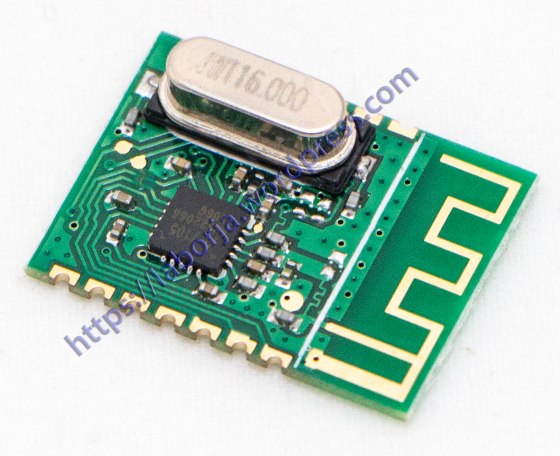

MD7105-SY A7105 2.4G Wireless Transceiver Module
Product Description:
Item | Specification | Remark |
Supply voltage | 2.5V~3.6V | |
Current consumption | 1uA (typical) @Sleep mode
0.3mA (typical) @Idle mode 1.7mA (typical) @Stand-by mode 9mA (typical) @PLL Mode 16mA (typical) @Rx mode 20mA (typical) @Tx mode (Pout = 0dBm) |
|
Frequency | 2400 – 2483 MHz | ISM band |
Transmit output power | 0 dBm @ room temperature | typical |
Rx sensitivity | -105 dBm (typical) @ 10Kbps mode, Dev = 40 KHz
-100 dBm (typical) @ 250Kbps mode, Dev = 93 KHz -96 dBm(typical) @ 500Kbps mode, Dev = 186 KHz |
BER≦1E-3 |
Modulation | FSK or GFSK | |
Transmission distance | About 100meter | BER≦1E-3 |
Interface | 8pin 2.54 mm header | |
Dimension | 23.3mm(L) x 12.5mm(W) x 5mm(H) | Not include the connector |
Operating temperature | -40 ~ 85 ℃ |
Interface:
Pin No. | Symbol | Function Description | Remark |
1 | GND | Ground | |
2 | Vin | RF Module Supply Votlage Inpute | 2.5V–3.3V |
3 | NC | NO Connection | |
4 | SCS | SPI Chip Selection | |
5 | SCK | SPI Clock | |
6 | SDIO | SPI Data I/O | |
7 | GIO1 | General Purpose I/O1 | |
8 | GIO2 | General Purpose I/O 2 |
Features:
XL7105-SY is made by adopting high performance 2.4G wireless transceiver chip A7105 of Taiwan Shengke (AMIC)
Working in 2400-2483M international opened ISM band
The biggest transmission power is 0 dBm(1 mW )500 KBPS
The highest RX sensitivity is -99 dBm @ 250 KBPS,
The distance is as far as 120M
Built-in ID CODE WORD in IC,support CD (carrier detect), FEC error correction
SPI interface, independent 64 bytes RX and TX FIFO.
Cost performance is higher than NRF24L01 and CC2500
Note: this module needs 3.3V power supply, can use voltage chip to reduce the voltage.
