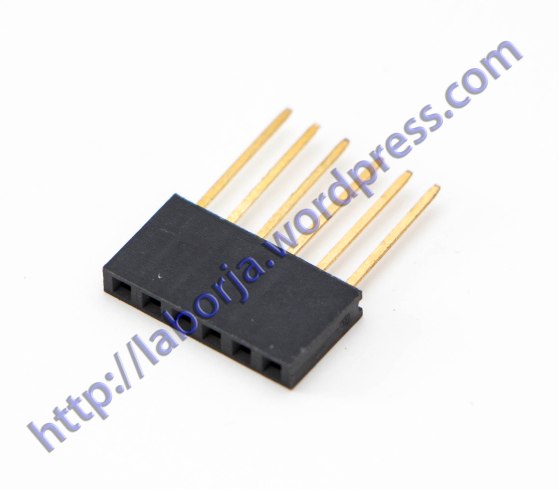

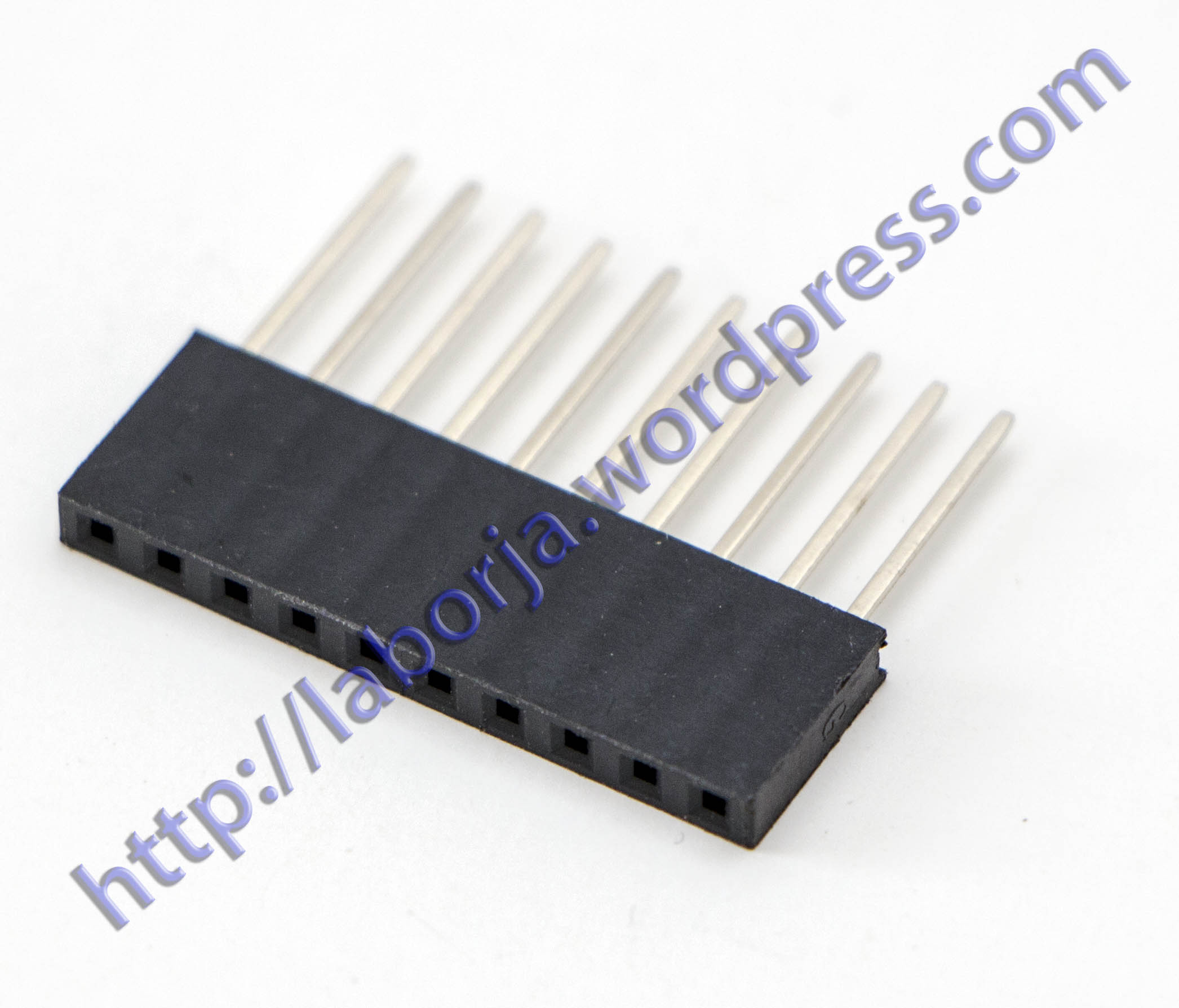

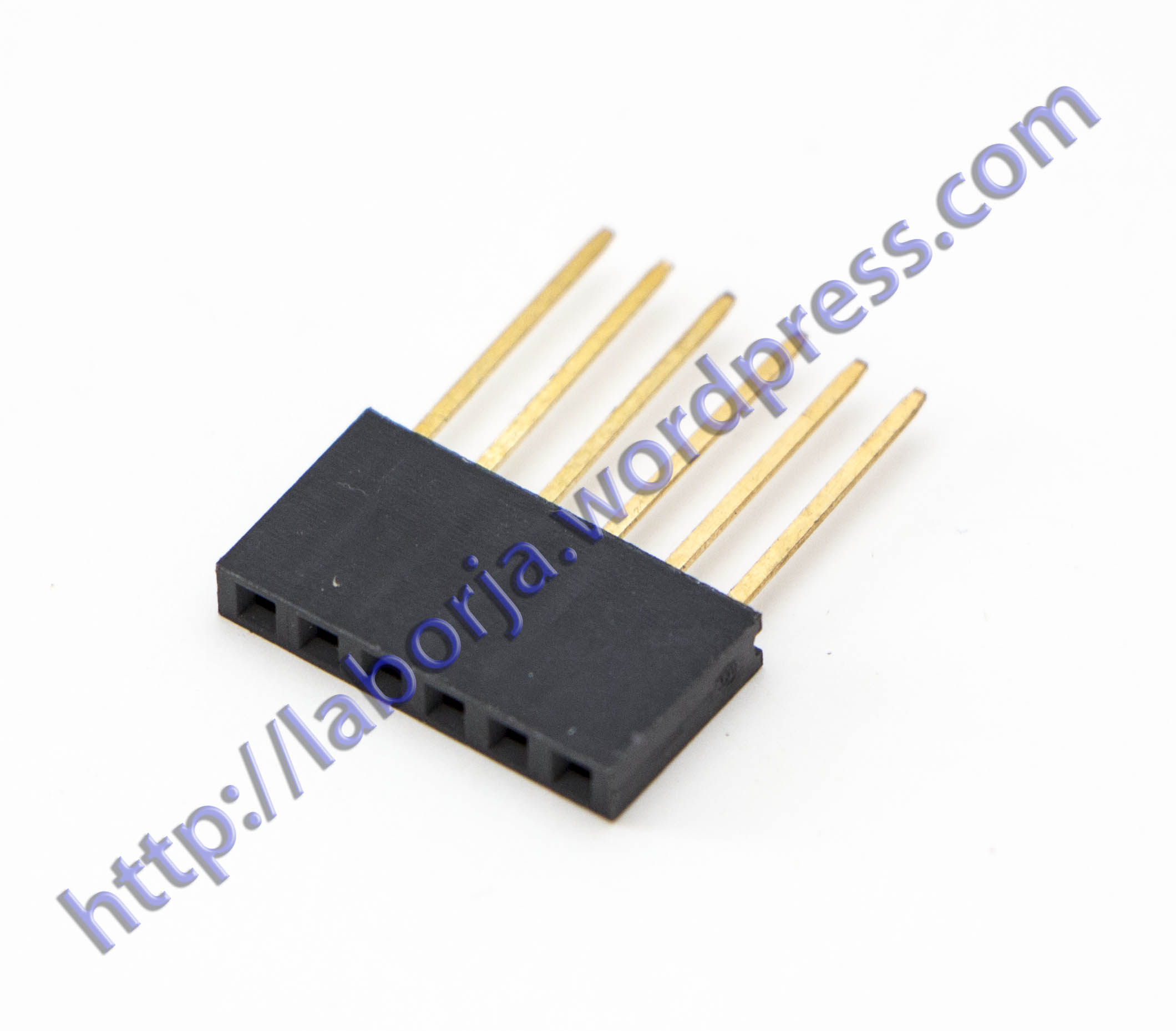

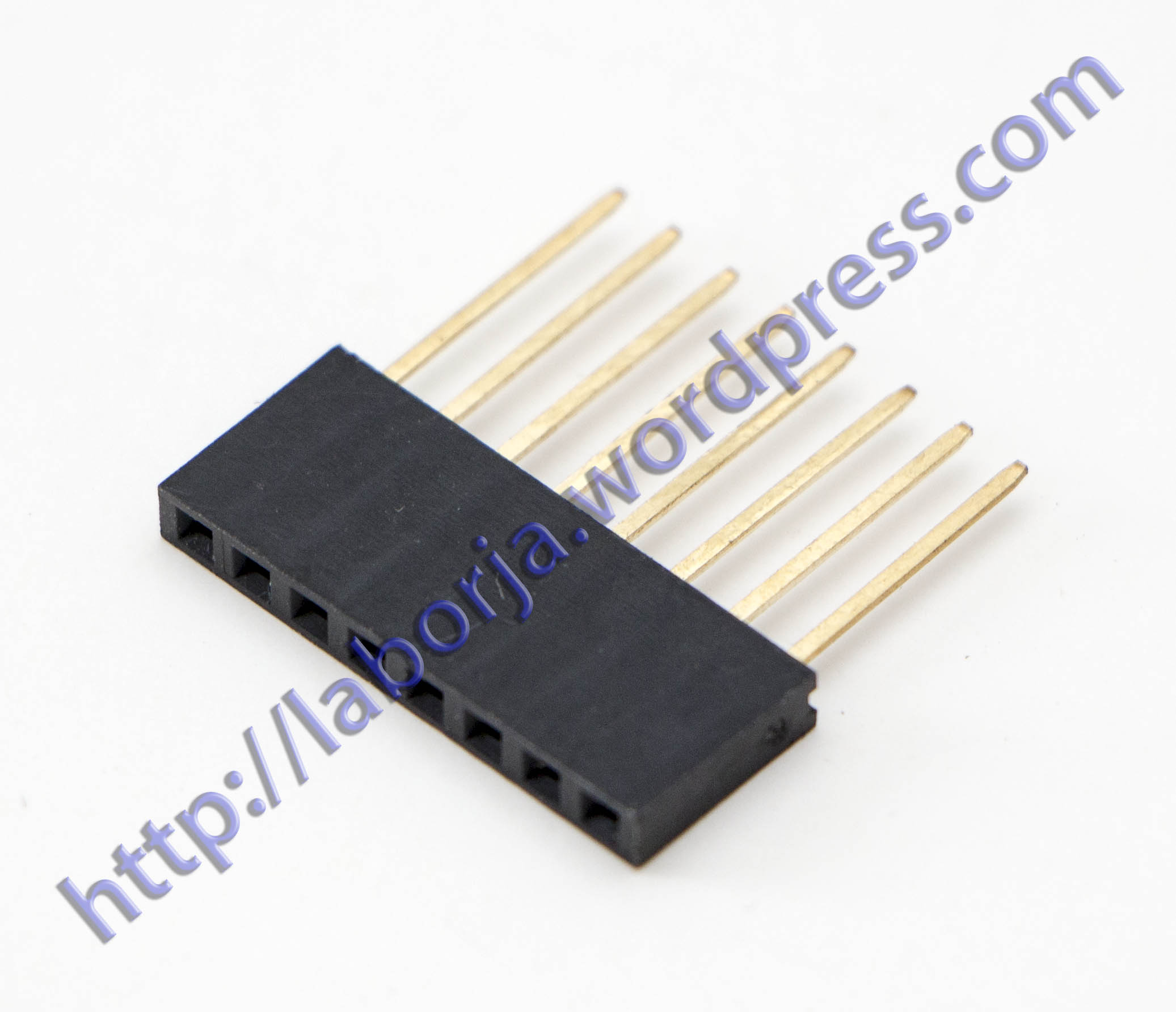

Stackable Header kit 6-pin 8-pin 10-pin
Product Description:
These headers are made to work with the Arduino Main Board, Arduino Pro, and the Arduino Mega. They are the perfect height for clearing the USB-B connector and great for stacking multiple shields. This kit includes 5 headers (2 8-pin, 2 6-pin and 1 10-pin), enough to connect a shield to an Arduino Main Board.
Description:
Lead Spacing: 2.54mm
Type: PCB
Color: Black
Gender: Female
Insulation Material: Plastic
Type of Contact: Square
Plating: Gold
Length: 8.4mm, 11.5mm, 14mm
Contacts: 6, 8, 10
Mounting Angle: Straight
Termination Style: Solder
Package include:
2 6pin
2 8pin
1 10pin
