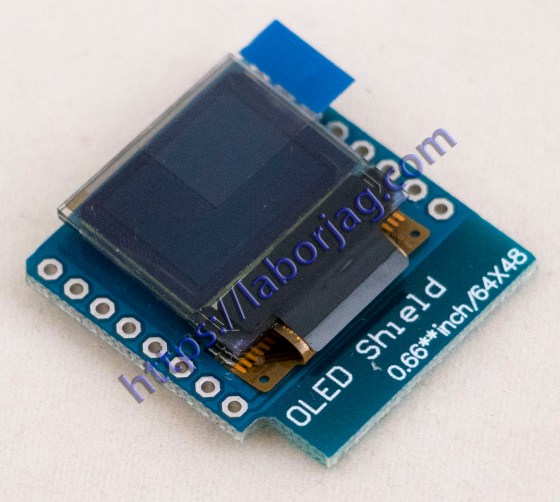

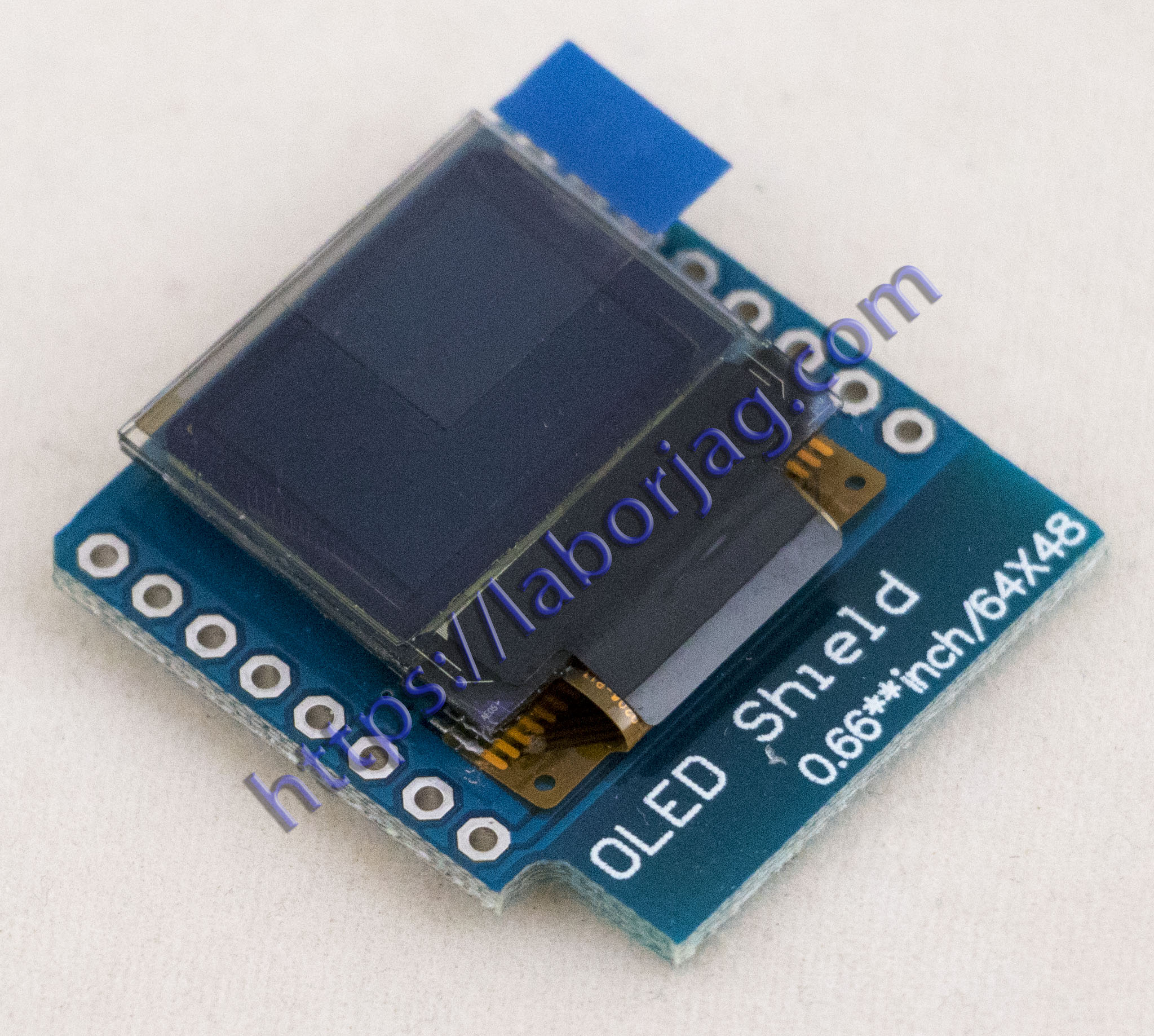

D1 Mini OLED Shield

64×48 pixels (0.66” Across) OLED Shield with I2C

Features:
Screen Size: 64×48 pixels (0.66” Across)
Operating Voltage: 3.3V
Driver IC: SSD1306
Interface: IIC(I2C)
IIC Address: 0x3C or 0x3D

Pins:

D1 mini Shield
D1 SCL
D2 SDA



SparkFun Library
SparkFun Library
Test Code

Adafruit SSD1306 Library
Adafruit SSD1306 Library
Test Code

Arduino Code:
Build NodeMCU Firmware with ssd1306_64x48_i2C supportTest code: oled_test.lua

Get Started with OLED Shield
