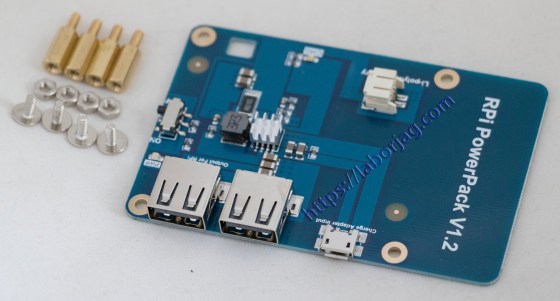

Lithium Battery PowerPack Expansion Board for Raspberry Pi

Lithium Battery PowerPack Expansion Board with Dual USB Output for Raspberry Pi

Product Description:
The power module is designed for the Raspberry Pi 3 Model B specially, allowing the master board to work offline for up to 9 hours. It’s not only supplying for Raspberry Pi; this board has 2 USB type-A ports – one supplies power for the Raspberry Pi and the other for the embedded LCD screen.
The module integrates a Li-ion battery charger IC, a boost management chip. And it is developed in strict accordance with the size of the international Raspberry Pi expansion board HAT, using only simple copper standoffs to install multi-layer Raspberry Pi boards.

Technical Details:
A power module especially designed for Raspberry Pi, which enables using the Raspberry Pi in a moveable manner
Battery capacity: 3800mAH (maximum) (Not Included); Output current: 1.8A
Output voltage (no load): 5.1V ± 0.1V
Double USB outputs, one for the Raspberry Pi, the other for the embedded LCD screen
Coming with fastening standoffs, screws and nut, so you can stack the Raspberry Pi board on the module

Specifications:
Battery capacity: ≤3800mAH ( Not Included)
Maximum discharge current: 1.8A
No-load output voltage: 5.1V ± 0.1V
Standard charging current/voltage: 1.0A/5.0V
Cut-off voltage of fully charging the Li-ion battery: 4.18V – 4.2V

It is unsafe to have battery on transmit, so the product will not contain it, thanks!

Package Included:
1 Lithium Battery Expansion board (without lithium battery)
4 Copper standoff
4 Screw
4 Nut
