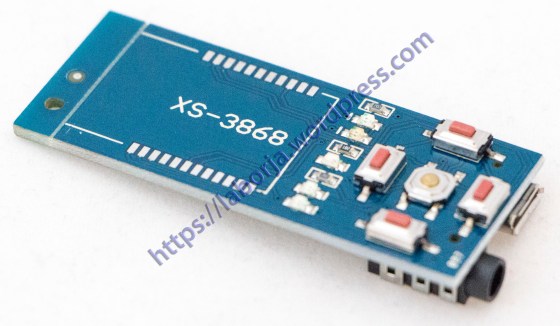

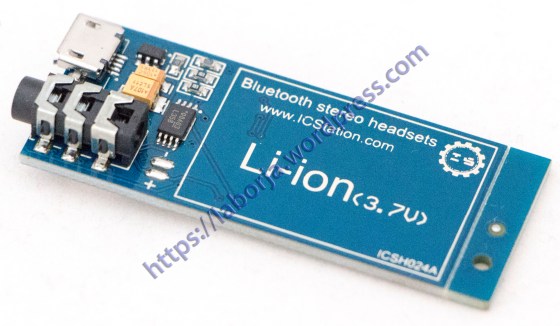

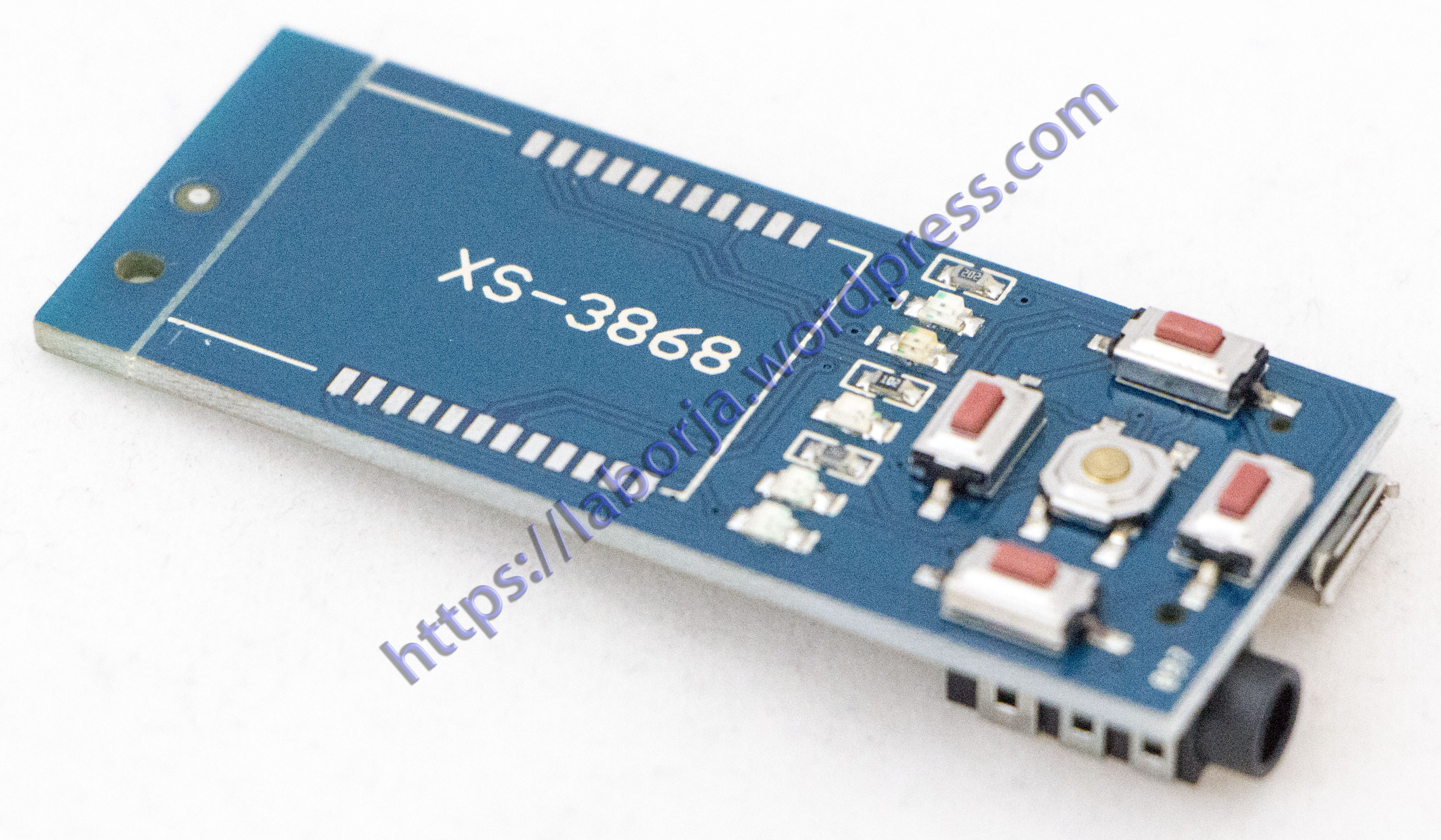

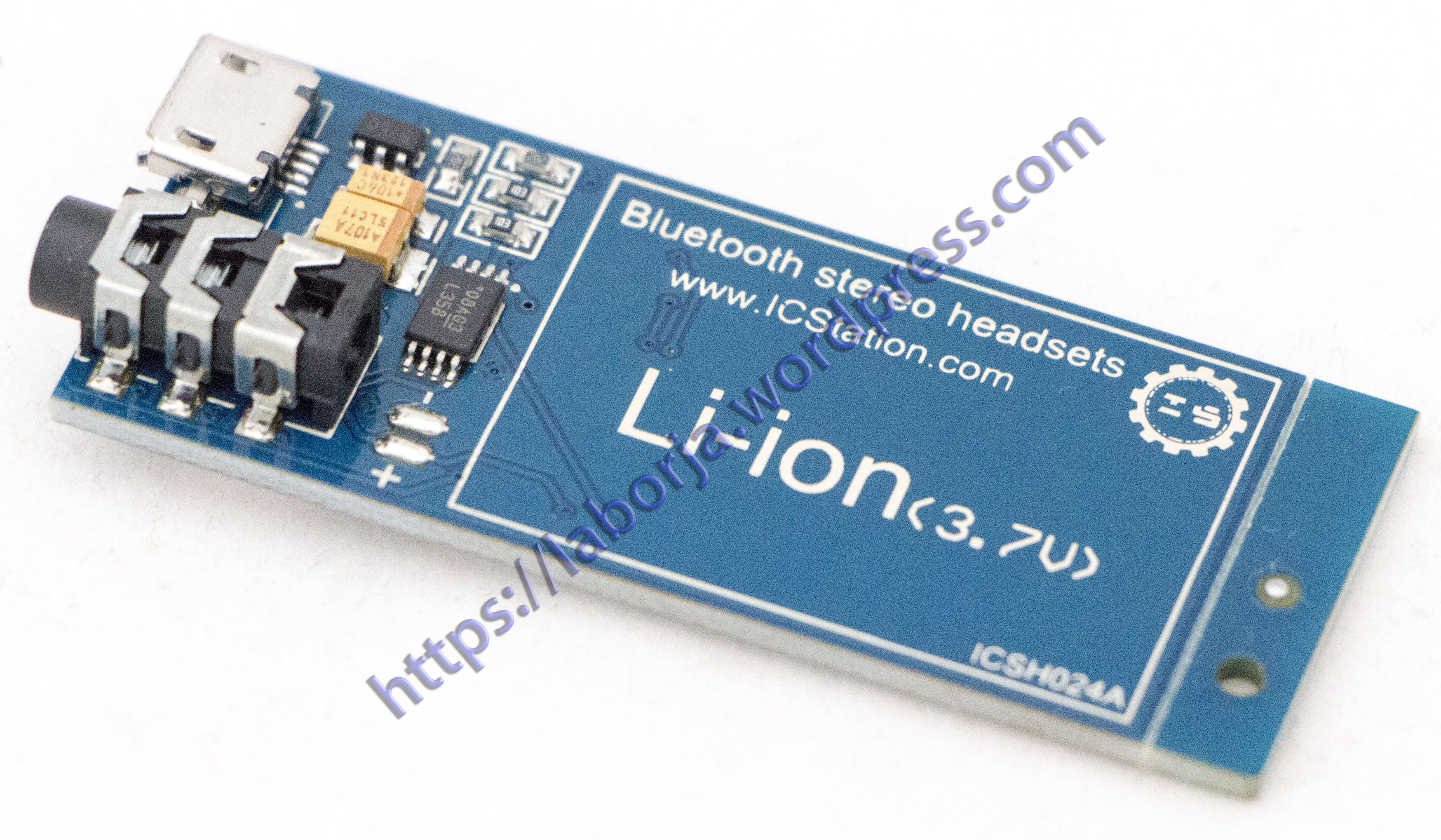

XS3868 Backplane Adapter

XS3868 Backplane Adapter Plate Master Chip Bluetooth Stereo Audio Shield Module OVC3860

Product Description:
Features:
1) High integration, low cost, low power consumption
2) Comply with Bluetooth2.0 specification
3) Support A2DP V1.2, AVRCP V1.4 profiles
4) Integrated EEPROM, can be configured to work mode and parameters
5) Stereo audio output can directly drive 40mW 32Ω speaker
6) Low voltage detection

Scope
1) Bluetooth stereo headphones
2) Bluetooth stereo

Parameter
1) USB charging voltage: 4.2V ~ 9V
2) USB charge current: 400ma
3) XS-3868 power supply voltage: 3.6V ~ 4.2V
4) Play Music Current:. 80MA (MAX)
5) With machine current: less than 1MA
6) Module size:. 49 * 22mm (without welding XS-3868), 54.5 * 22mm (welding XS-3868)
