APM 2.52 Current Board Module 90A

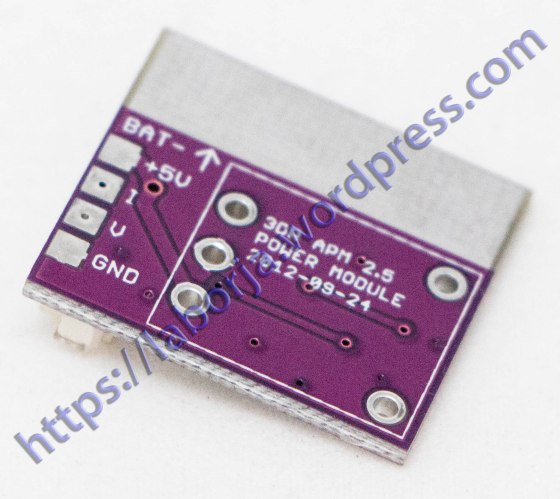

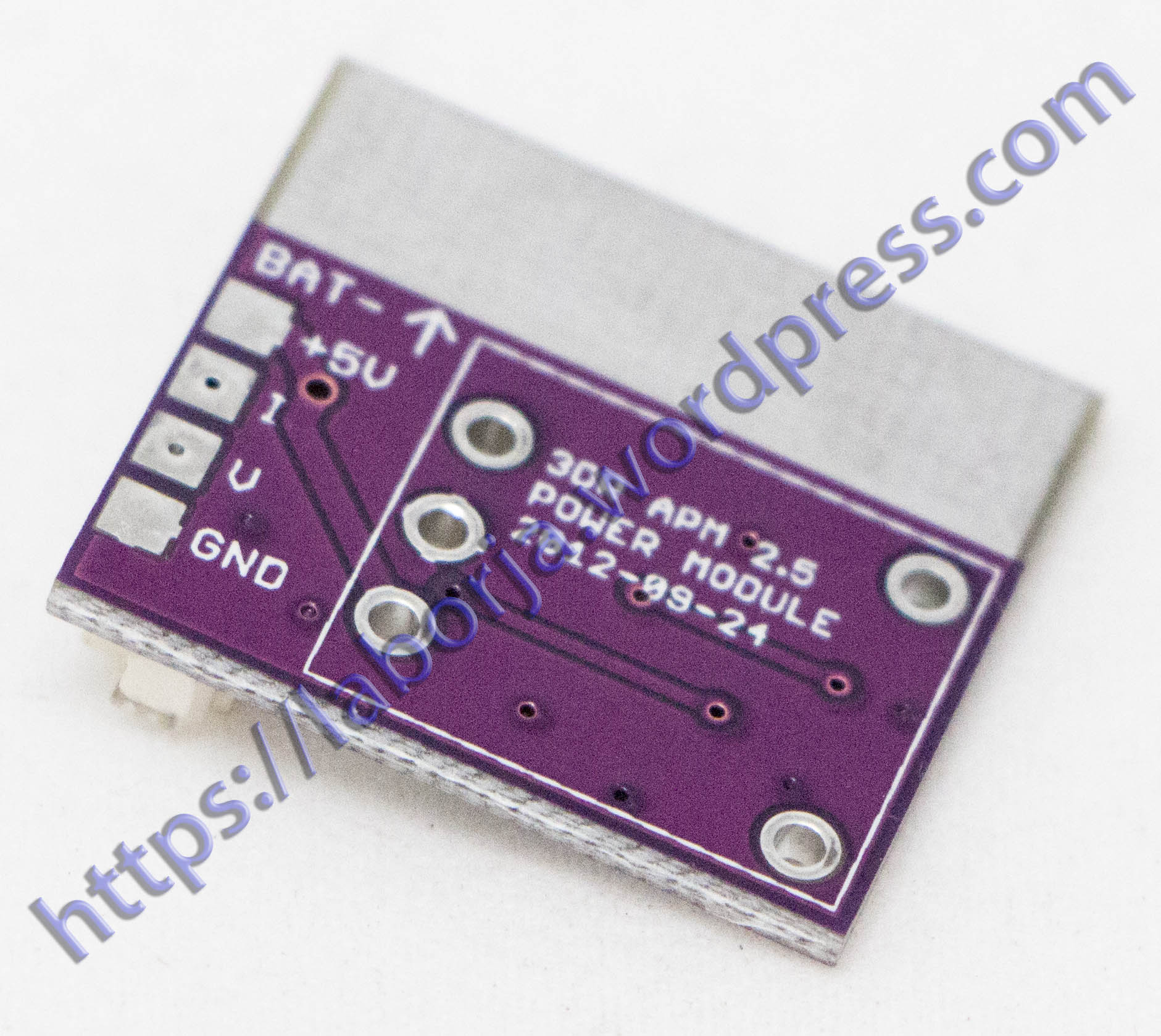

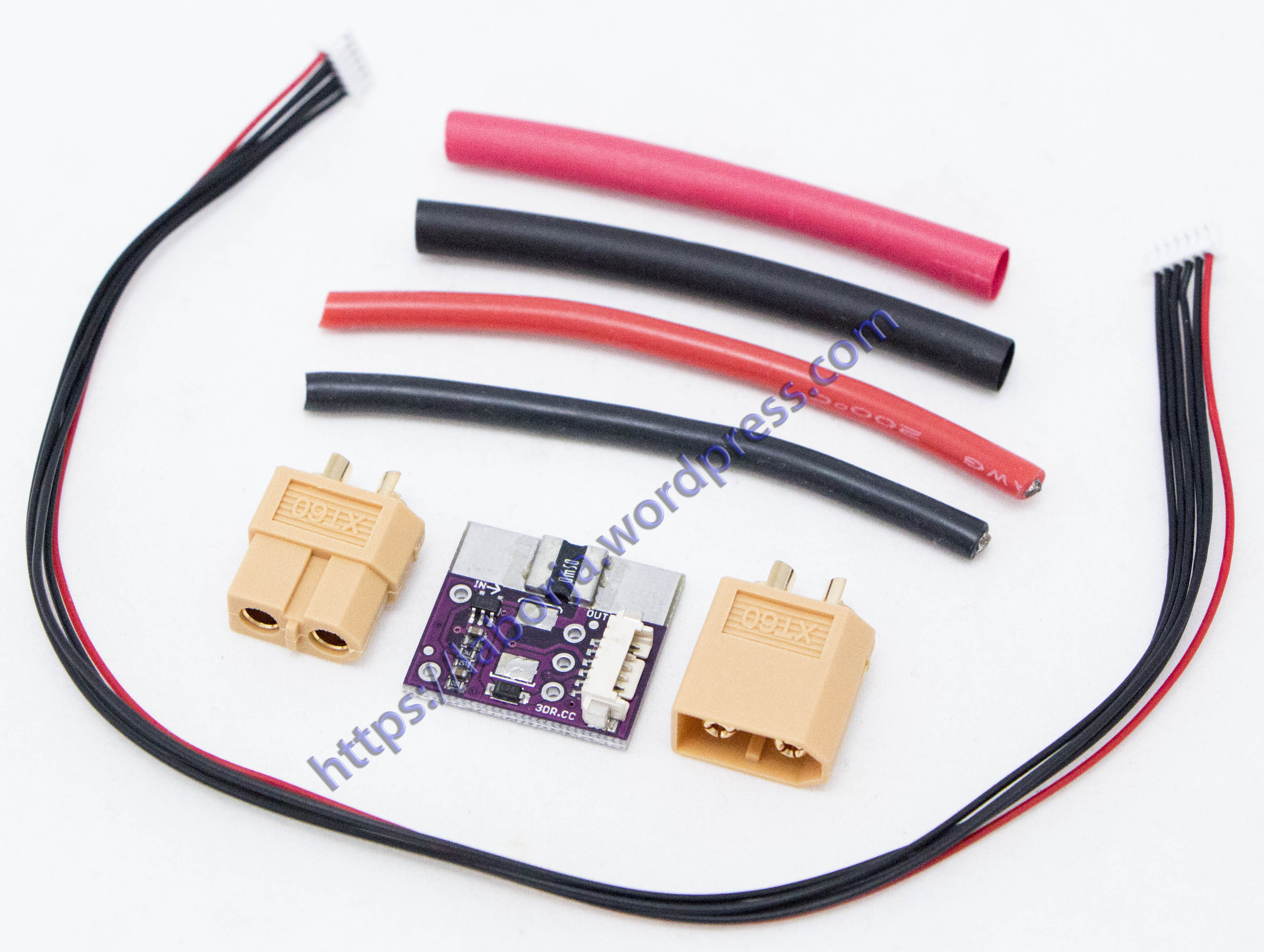

APM2.52 a APM2.52 b

APM Flight Controller APM2.5 APM2.52 AttoPilot Voltage Current Sensor Module 90A

Product Description:
The APM 2.5 Power Module is a simple way of providing your APM 2.5 with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6-pos cable. The on-board switching regulator outputs 5.3V and a maximum of 2.25A from up to a 4S LiPo battery. The Power Module comes completely assembled with Deans connectors, and wrapped in shrink tubing for protection.
Note: The Power Module is only designed to power APM, a RC receiver and APM accessories (GPS, 3DR radio). It isnotdesigned to power servos. Use your aircraft’s own ESC/BEC for that.and the board is white.

Specifications:
Max input voltage: 18V
Max current sensing: 90A
Voltage and current measurement configured for 5V ADC
pos DF13Switching regulator outputs 5.3V and 2.25A max
6- cable plugs directly to APM 2.5’s ‘PM’ connector
