Rotary Encoder Code Switch EC11 Digital Potentiometer

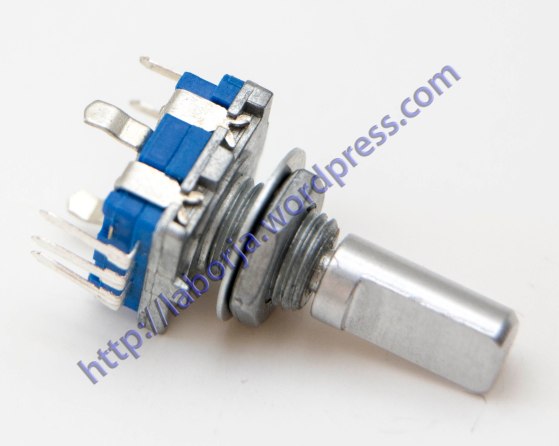

 Rotary Encoder

Rotary Encoder Code Switch / EC11 / Digital Potentiometer With Switch 5 Pin Handle Length 20mm

Product description:
Features:
* These are continuous rotary encoder switch
* With built in push button switch (push to operate)
* Can be used for data entry as with modern in car CD players, for volume & on/off control or data selection via LED or LCD display
* Perfect for use with PIC or ATMEL microcontrollers

Specifications:
* Rotary Shaft Length: Approx. 12mm
* Shaft Full Length: Approx. 20mm
* Shaft Diameter: Approx. 6mm
* Size (L x W): Approx. 15 x 11mm
* Output: 2-bit gray code
* Closed Circuit Resistance: 3 ohms maximums
* Max. Rating: 10 mA @ 5 VDC
* Operating Temperature Range: -30 to 70 degrees celsius
* Storage Temperature Range: -40 to 85 degrees celsius
* Rotational Life: 30000 cycles minimum
* Switch Life: 20000 cycles minimum

Reading Rotary Encoders
EC11 Datasheet
Encoder Module Demo Code

Package Includes:
1 Encoder Switch
