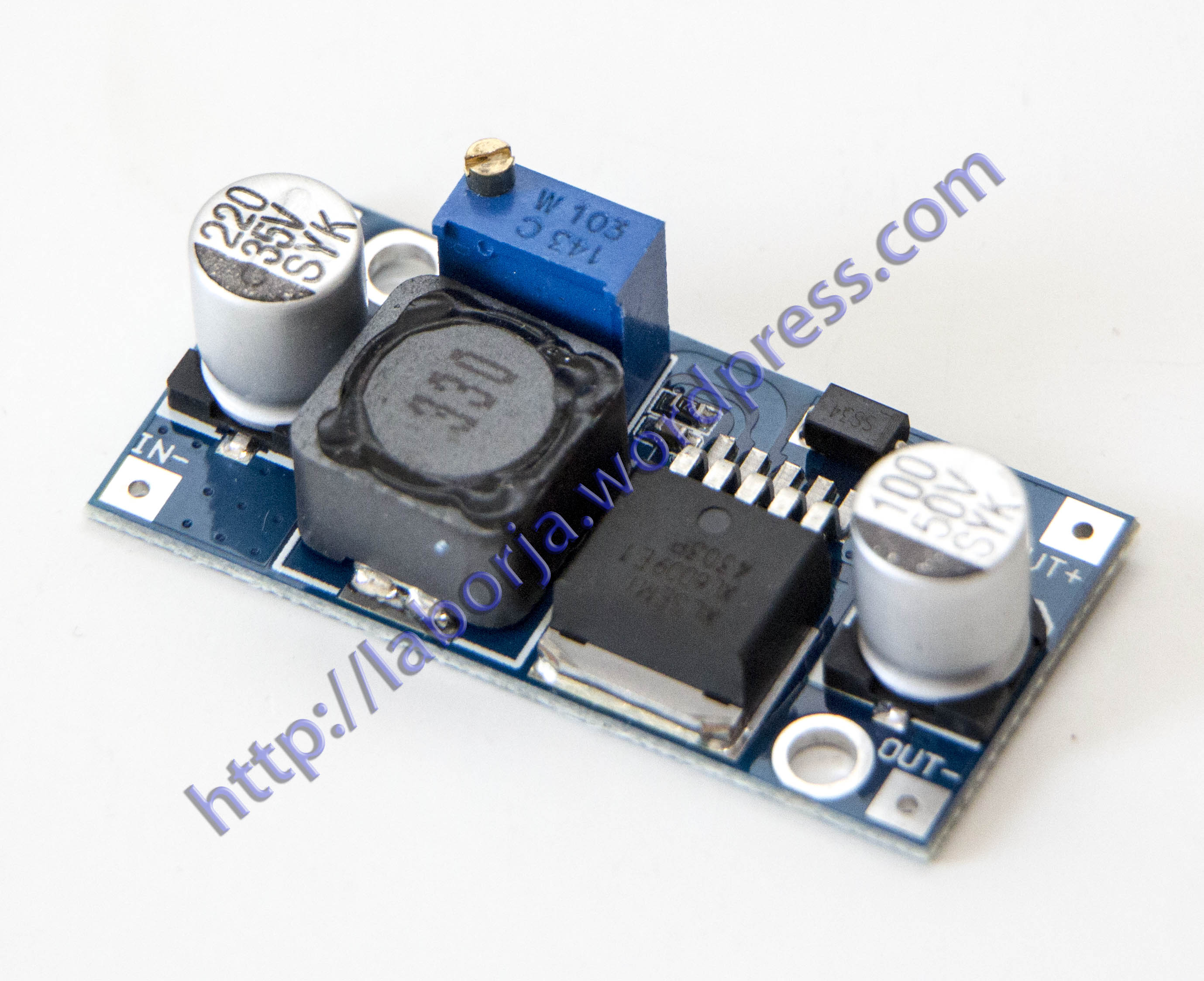

XL6009 DC-DC Booster Module Power Supply Module Output is Adjustable Super LM2577 Step-up Module
Product Description:
Its DC – DC voltage power supply module.
model/The name of the | XL6009 DC – DCThe booster module |
The input voltage | (minimum 5 v to 3 v normal) ~ 35 v |
The output voltage | 6 v ~ 45 v |
The output current | 4 a(Max) |
Conversion efficiency | 92%(highest) |
The output ripple | < 30 mv |
Switching frequency | 65 KHZ |
Working temperature | – 45°~ + 85° |
The size | 43 * 21 * 14 mm mm mm(long*wide*High) |
IN + enter the positive – negative input IN!
The positive OUT – output negative OUT + output
Test compared to the sample reference:
3 v input output 12 v 0.4 A 4.8 W
The input 5 v output 12 v 0.8 A 9.6 W
18 w input 7.4 V output 12 V 1.5 A
Input the 12 v output 15 v 2 a 30 w
Input the 12 v output 16 v 2 a and 32 w
18 v 1.6 A 1.6 W input 12 v output
Input the 12 v output is 19 v 1.5 A 1.5 W
Input output 12 v 24 v 1 A 24 w
