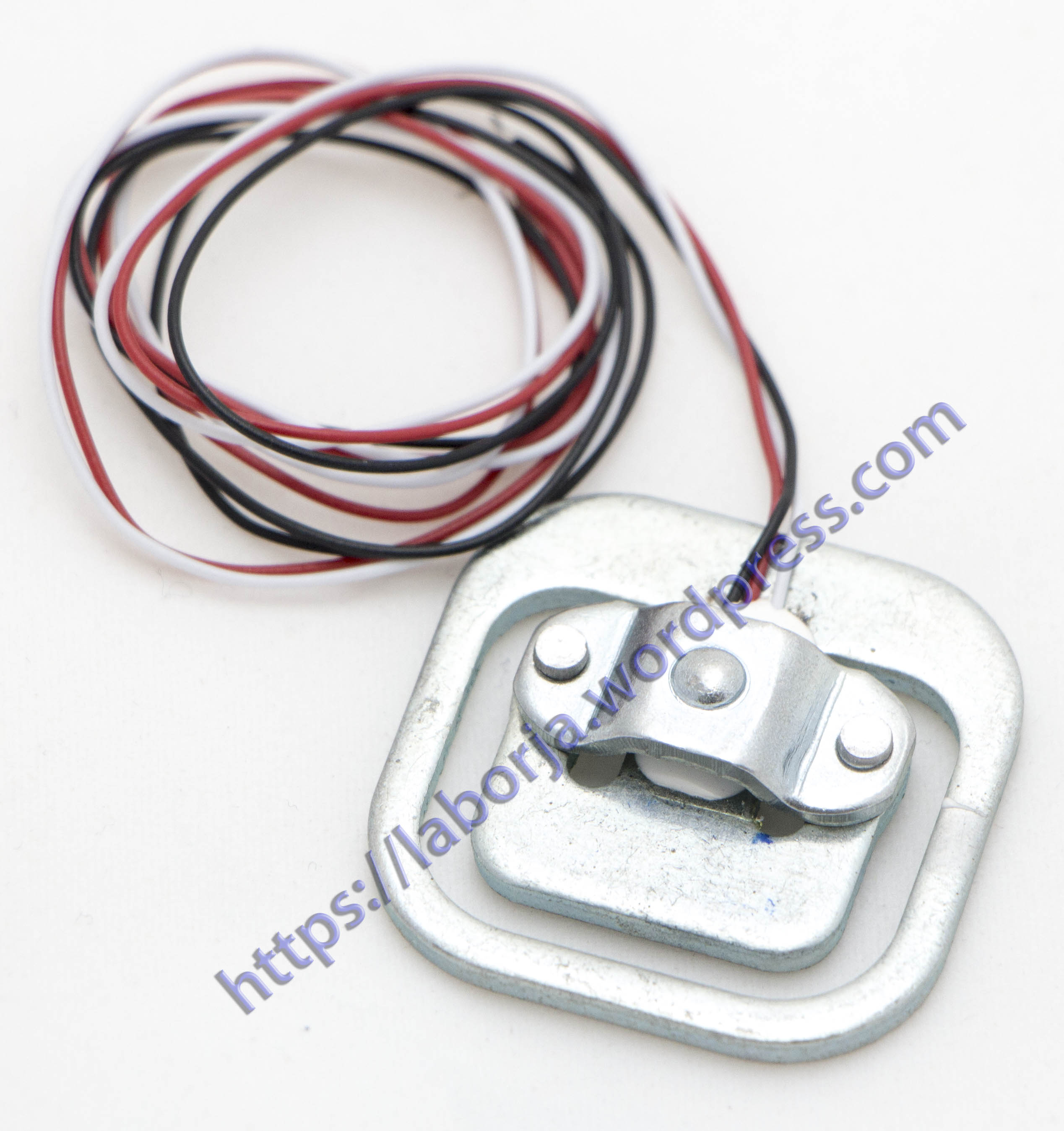

Scale Load Cell Sensor 50Kg

Body ScaleExperiments Body Scale Wholesale Human Scale Load Cell Sensor Resistance Strain 50kg Half-Bridge Sensors

Product Description:
When measuring, the correct force is applied to the outer side of the strain E-shaped beam portion of the sensor (i.e., a strain gauge affixed to the intermediate, adhesive coating with white beam arms) and the outer edges to form a shear force in the opposite direction, i.e., middle strain beam bending necessary changes can occur under stress, strain beam side by another force should not be a barrier.
The sensor is a group inside the half-bridge strain gauge, you can use the following three:
1 The use of a sensor with an external resistor full bridge measurement range for a sensor range: 50kg. Higher requirements for external resistor.
2 The use of only two full-bridge sensors measuring range for the range of the two sensors and: 50kgx2 = 100kg
3 The use of four full-bridge sensors measuring range for the range of four sensors and: 50kgx4 = 200kg

Load Sensor Tutorial
Load Cell Wire Colors
