Banana Pi Pro

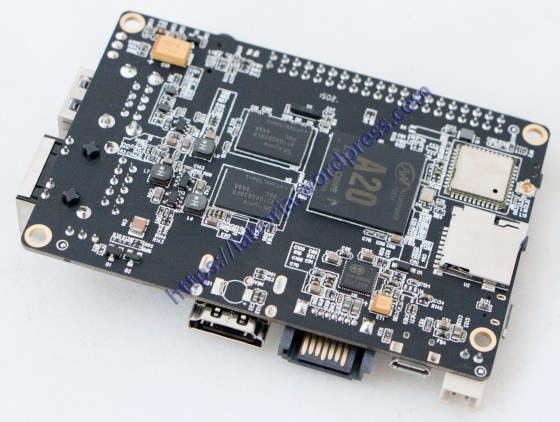

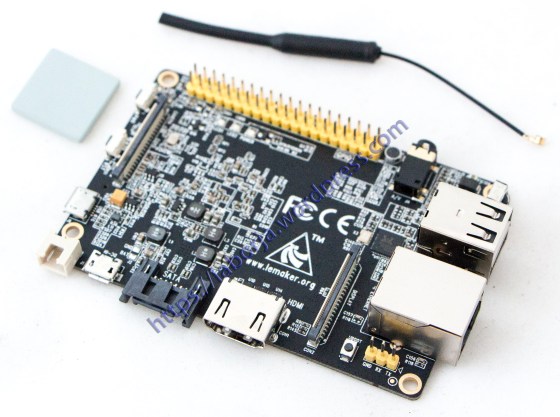

Banana Pi Pro a Banana Pi Pro b

Banana Pi Pro Developing Board

Product Description:
Banana Pro™ is an updated version of Banana Pi™ designed by the LeMaker Team. Try Banana Pro™ today and take advantage of the many enhanced features.
Banana Pro™ is compatible with many Linux-based operating system and has many distributions specially developed for Banana Pi™ Hardware. Some of these distributions include Lubuntu, Android, Debian, Bananian, Berryboot, OpenSuse, Scratch, Fedora, Gentoo, Open MediaVault, OpenWRT. Banana Pro™ also supports the BSD system.
Banana Pro™ has a wide selection of home applications including: Building a low-cost computer, Servers (for Multimedia, Minecraft or other home servers), Video Game Emulators, Home Security Cameras and more.
Banana Pro™ is an excellent educational learning tool that can be used for many projects including: building Multimedia projects,Robots, Arduino applications or Computer Programming with many popular programming languages available including Scratch (a drag and drop programming language for people beginning to learn how to code).

Hardware Specification of Banana ProTM:
Soc Allwinner® A20(sun 7i)
CPU ARM® Cortex™-A7 Dual-Core1GHz (ARM v7 instruction set)
GPU Mali400MP2 Complies with OpenGL ES 2.0/1.1 (hardware acceleration support)
SDRAM 1GB DDR3 (shared with GPU)
Power 5V @ 2A via MicroUSB (DC in Only) and/or MicroUSB (OTG)
PMU AXP209
Features:
Low-level 40 Pins Header,
perpherials 28×GPIO, some of which can be used for specific functions including UART, I2C, SPI, PWM, CAN, I2S, SPDIF,

LRADC, ADC, LINE-IN,FM-IN,HP-IN.
On board Network 10/100/1000Mbps ethernet (Realtek RTL8211E/D)
Wifi Module WiFi 802.11 b/g/n
On board Storage MicroSD (TF) card,SATA 2.0
Display Supports multi-channel HD
display: HDMI 1.4 (Type A – full) LVDS/RGB/CPU display interface (DSI) for raw LCD panels
Composite video (PAL and NTSC) (via 3.5 mm TRRS jack shared with audio out) 11 HDMI resolutions from 640×480 to 1920×1080 plus various PAL and NTSC standards
Video HD H.264 2160p video decoding Mutil-format FHD video decoding, including Mpeg1/2, Mpeg4, H.263, H.264, etc H.264 high profile 1080p@30fps or 720p@60fps encoding
Audio outputs HDMI,analog audio (via 3.5 mm TRRS jack shared with composite video out),I2S audio (also potentially for audio input)
Camera Parallel 8-bit camera interface
Audio input On board micphone
USB 2 USB 2.0 host, 1 USB 2.0 OTG (all direct from A20 chip)
Buttons Reset button,Power button,U-boot button
Leds Power status led (red),User defined led1 (green),User defined led2 (blue)
Other IR reciever

GitHub
Forum

Package List:
1 Banana Pro
1 WiFi Antenna
1 Instructions
