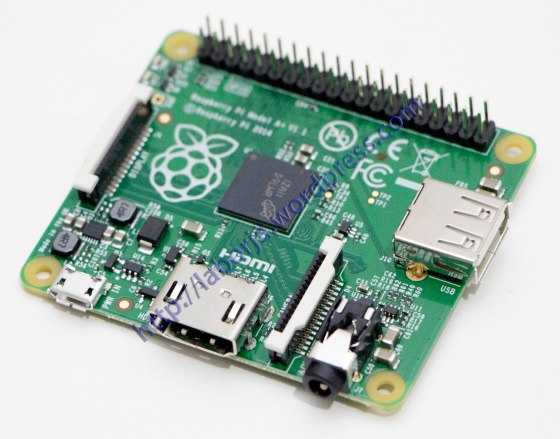

Raspberry Pi Model A+ 256MB RAM 11 PI model A plus
The Model A+ is the low-cost variant of the Raspberry Pi. It is recommended for embedded projects and projects which require very low power, and which do not require Ethernet or multiple USB ports.
Raspberry Pi Model A+ replaced the original Model A in November 2014. Compared to the Model A it has:
More GPIO. The GPIO header has grown to 40 pins, while retaining the same pinout for the first 26 pins as the Model B.
Micro SD. The old friction-fit SD card socket has been replaced with a much nicer push-push micro SD version.
Lower power consumption. By replacing linear regulators with switching ones we’ve further reduced power consumption.
Better audio. The audio circuit incorporates a dedicated low-noise power supply.
Smaller, neater form factor. We’ve aligned the USB connector with the board edge, moved composite video onto the 3.5mm jack, and added four squarely-placed mounting holes. Model A+ is approximately 2cm shorter than the Model A.
Broadcom BCM2835 700MHz ARM1176JZFS processor with FPU and Videocore 4 GPU
GPU provides Open GL ES 2.0, hardware-accelerated OpenVG, and 1080p30 H.264 high-profile decode
GPU is capable of 1Gpixel/s, 1.5Gtexel/s or 24 GFLOPs of general purpose compute and features a bunch of texture filtering and DMA infrastructure
The 256MB RAM
Boots from Micro SD card, supports Linux distros such as Fedora, Debian and ArchLinux
The 4-pole 3.5mm stereo audio jack with composite video output
USB 2.0 interface
Display Serial Interface connector
MicroSD card slot
Powered by 5v micro USB
The 40-pin 2.54mm expansion pinheader
Dimensions: 66 x 56 x 14mm
Download New Out Of the Box Software (NOOBS)
Download Operating System Images:
Download Snappy Ubuntu Core
Download Risc OS
1 Raspberry Pi Model A+
