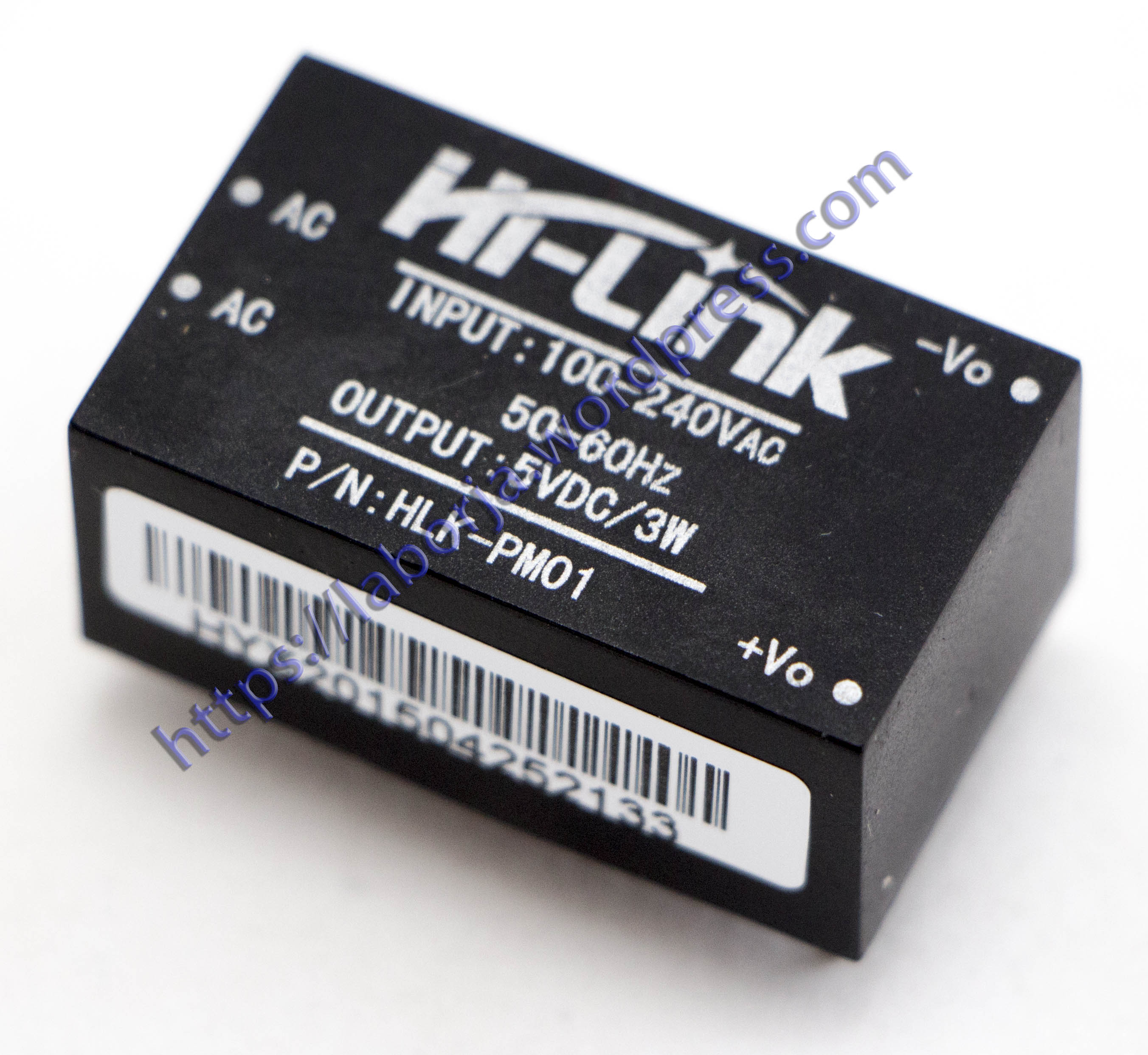

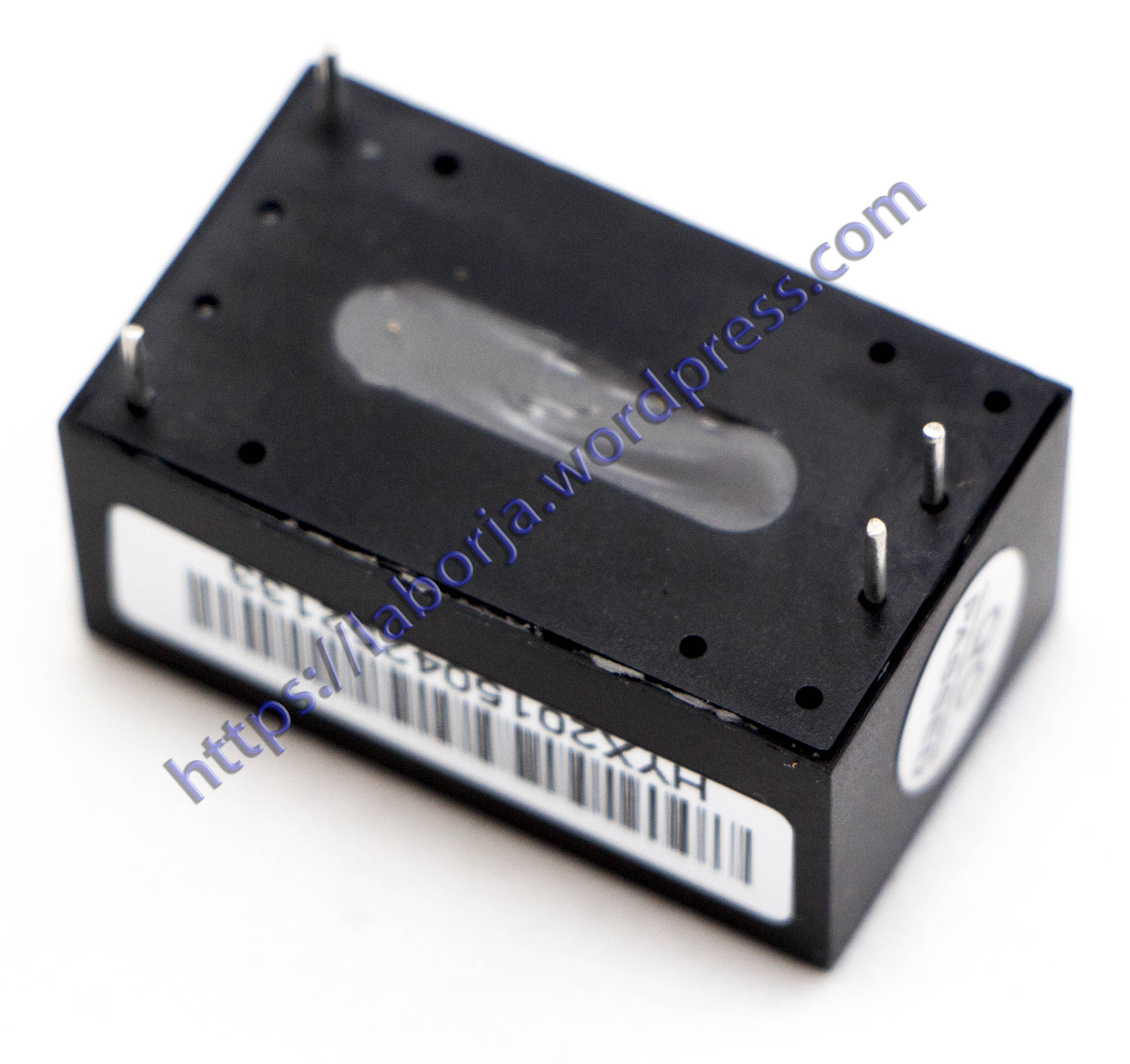

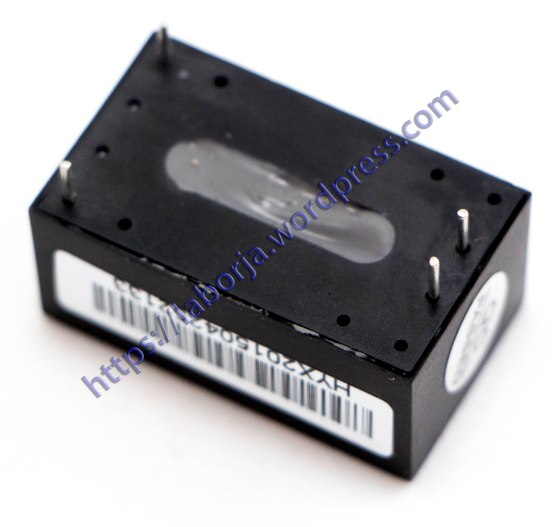

HLK-PM01 AC-DC 110-220VAC to 5V Mini Power Supply Module


HLK-PM01 AC-DC 110-220VAC to 5V Mini Power Supply Module, Intelligent Household Switch

Product Description:

Environment Condition:
-Operation Temperature: -20+60
-Store Temperature: -40+80
-Relative humidity: 595 %
-Atmospheric pressure: 80106 Kpa
-Sea level elevation: 2000 m
-Vibration: Vibration coefficient 10~500Hz,2G10min./1cycle, 60min.each along X,Y,Z axes

Electrical Characteristic:
-Input characteristics (test at room temperature 20 ).
-Rated input voltage: 100-240 VAc
-Input voltage range: 90-264 VAc
-Maximum input current: 0.2 A
-Input current surge: 10 A
-maximum input voltage: 270 VAc
-Enter slow start: 50 mS
-Input Low Voltage Efficiency: Vin=110VAcOutput full-load69 %
-Input High Voltage Efficiency: Vin=220VAcoutput full-load70 %
-Long-term reliability: MTBF100.000 h
-Load rated output voltage: +50.1 VDc
-Full rated output voltage: +50.2 VDc
-Short-term maximum output current: 1000 mA
-The maximum output current for a long time: 600 mA
-Voltage Regulation: 0.2 %
-Load Regulation: 0.5 %
-Output ripple and noise: (mVp-p) 50 mV
-Switch overshoot amplitude: (Rated input voltage and output load plus 10%)5 %VO
-Output over-current protection: 150-200% of the output maximum load A
-Output short circuit protection: Direct short circuit at the normal output, automatically resume normal -operation after a short circuit removal

Safety Characteristics:
-Designed with the input of 0.5A UL certified insurance;
-PCB board using double-sided copper clad plate production, material for the 94-V0 fire rating level;
-Safety standards: Compliance with UL1012, EN60950, UL60950
-Insulation voltage: I / P-O / P: 2500VAC
-Insulation resistance :I / PO / P> 100M Ohms / 500VDC 25 70% RH
-Conduction and radiation :comply with EN55011, EN55022 (CISPR22)
-Electrostatic discharge :IEC / EN 61000-4-2 level 4 8kV / 15kV
-RF radiation Immunity: IEC / EN 61000-4-3
