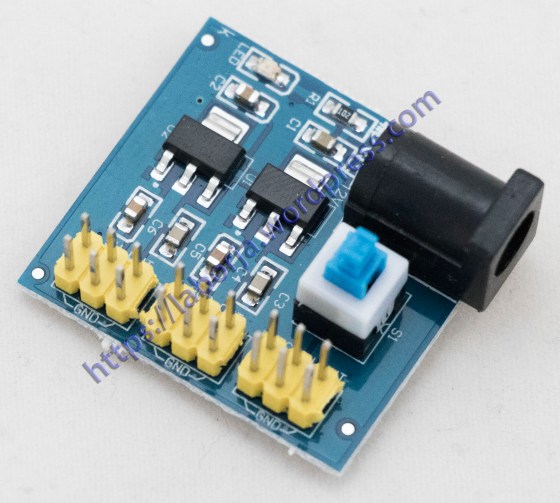

Multi Output Voltage Power Module

Multi Output Voltage

3.3V 5V 12V Multi Output Voltage Conversion DC-DC 12V to 3.3V 5V 12V Power Module

Product Description:
1. One Channel input: DC 6V – 12V (input voltage must be output voltage higher than 1V or more.)
2. Triple Output: 3.3V (+ – 0.05v error), 5.0V (+ – 0.05v error), 800mA (load current must not exceed 800ma), 12V (12V input directly to the output)
3. Two sides panel design, layout.
4. Specially designed two pin mounting holes, can be directly fixed to the board extended tunnel experiments;
5. Multiple input and output pin, easy to use and connect;
6. PCB size: 4.5cm*4.5cm
