DC ATX 160W 24pin Power Supply Module

atx-160w

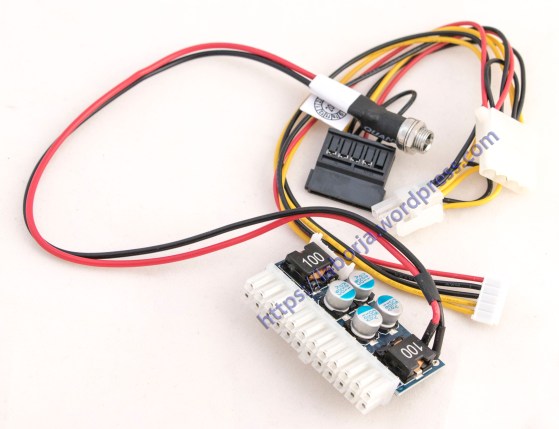

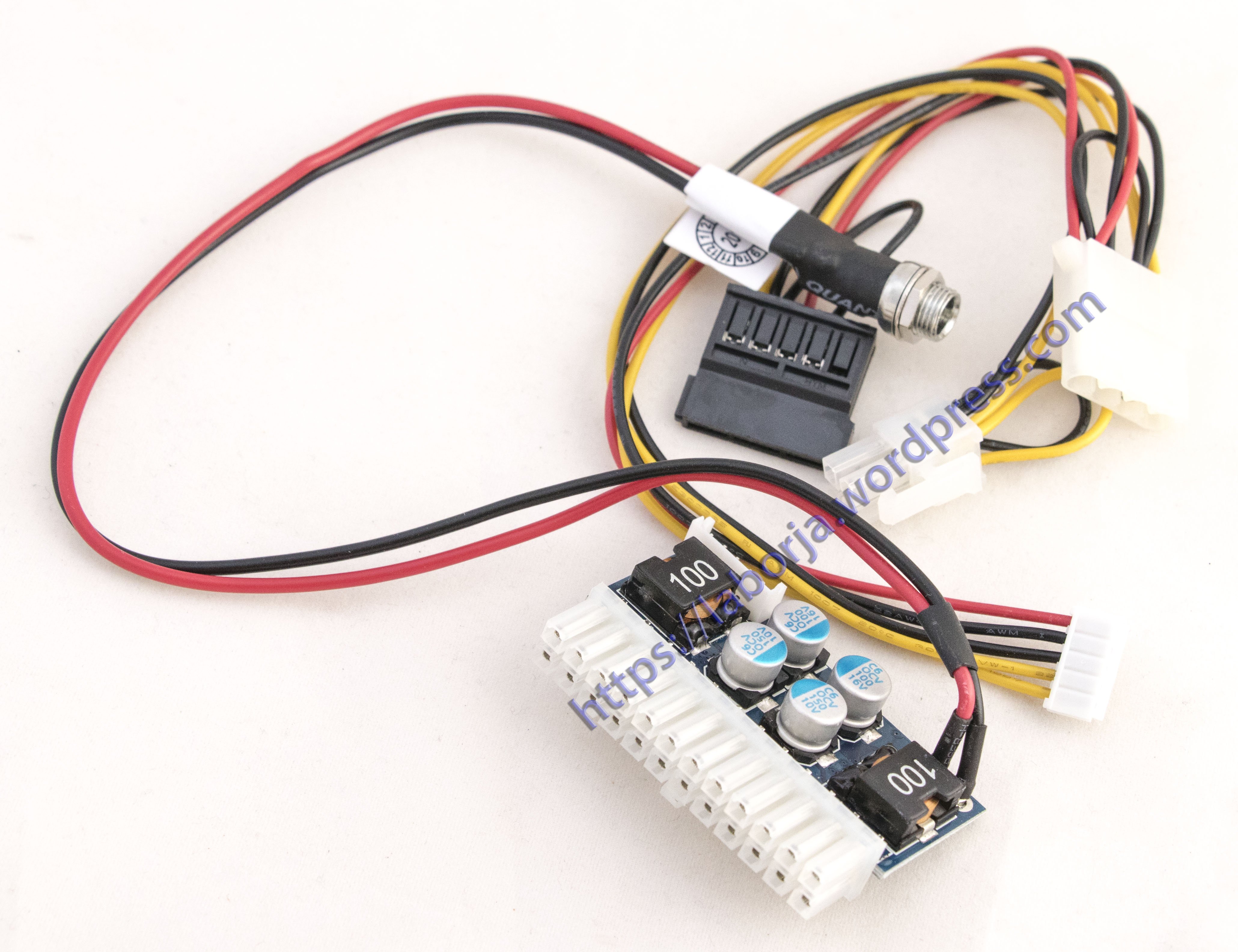

DC-ATX-160W 160W Power Supply Module 24pin mini-ITX DC ATX power supply (PICO BOX DC-ATX PSU)

Product Description:
MINI computers, one computer, POS, digital set-top boxes, ITX chassis, network servers, advertising, banking terminals, etc.

Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item.

Size (L*W*H): 5.4 x 3.3 x 1cm(approx)
Adopt industrial solid capacitor, ideal for being used in harsh evironment
High performance with high heat-stand feature, more reliable
Without fan for 100% mute working
Compact design, special for mini-itx and 1U case
Modules can reach 160W, and it must be accompanied by the power adapter which reach 12V-12.5A

Specifications:
Input voltage: +12V/DC (11.4-12.6V)
Input Current: Max. 17A
Output ATX: 160W
Output Current +12V: 8A
Output Current +5V: 8A
Output Current +3.3V: 8A
Output Current +5VSB: 1.5A
Output Current -12V: 0.1A
Output Power: 160W
Power Efficiency: > = 92%
Operating temperature: 0c~40c
Storage temperature: -20c~80c

Package Included:
1 DC-ATX-160 Power Module
