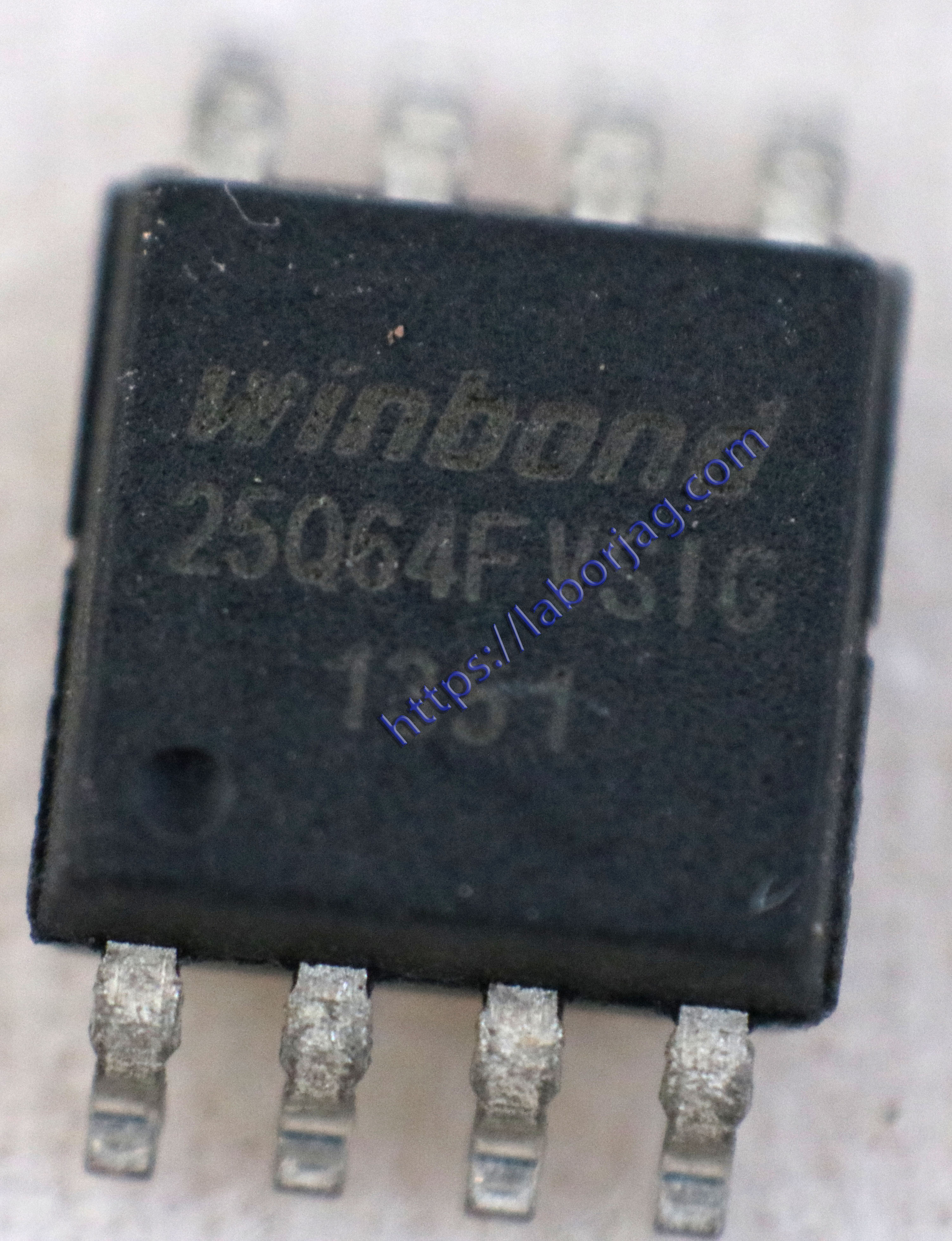

Flash Memory Chips W25Q64FVSSIG 25Q64FVSIG SOP-8
Product Description:
NOR Flash Serial (SPI, Dual SPI, Quad SPI) 3V/3.3V 64M-bit 8M x 8 7ns 8-Pin SOIC
Single/Dual/Quad SPI amd QPI operation
Uniform 4KB erasable sectors & 32KB/64KB erasable blocks
32,768 pages (256 bytes), page program in 0.7mS (typ.)
Continuous Read with 8/16/32/64 Byte Wrap
Quad Peripheral Interface (QPI) reduces instruction overhead
Clock operation up to 104MHz (208/416MHz equivalent with Quad I/O Read)
2.7 to 3.6V power supply
4mA active read current, 1µA power down current
-40° to +85°C operating range
Program/Erase Suspend/Resume, Suspend Status Bit
Factory-programmed unique ID
Electronic ID with Dual/Quad I/O, Hardware and software write protection for top or bottom blocks
Volatile & Non-volatile Status Register Bits
Lock-Down and OTP protection
Serial Flash Discoverable Parameters(SFDP)
3X256byte Security Registers with OTP locks
Complement Array Protection Bit
Software Reset
