XS3868 Bluetooth Stereo Audio Module

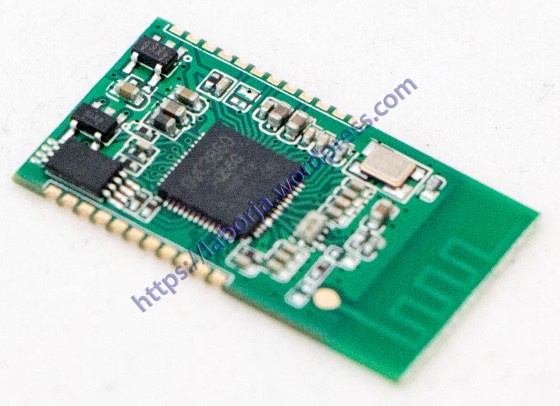

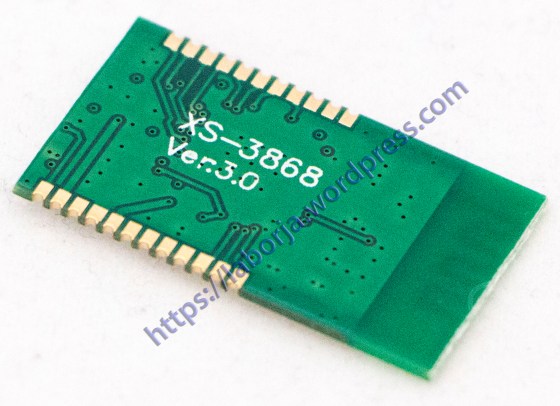

XS3868 a XS3868 b

XS3868 Bluetooth Stereo Audio Module OVC3860 Chip Supports A2DP AVRCP

Product Description:
Product Details:
Bluetooth Stereo Module
Condition: New
Chip: OVC3860
Bluetooth: version2.0
Frequency: 2.402-2.48-Ghz
Max transmit power: Class 2 4dBm (at antenna pad)
Receive sensitivity: better than -82dBm
Range: about 10 meters
Data rates Up to 3Mbps (over the air)
UART DATA Transfer rate: 115200bps
UART: no flow control support
Microphone: mono microphone input with bias
Profiles: A2DP-sink only
AVRCP-Controller only
Supply voltage: supply: DC 3.0-3.6V
IO: 1.7V-3.6V
Current consumption: operational-less than 25ma(active)
External antenna: Connection via S M T pad
Dimensions: 30 x 17 x 3.4mm
6 Button to input: boot key, matching key, volume up, volume down, move next, move previous
2 indicator light to indicate different work condition

NOTE that due to lighting effects, monitor’s brightness / contrast settings etc, there could be some slight differences in the color tone of the pictures and the actual item!

Package Included:
1 Stereo Module
