32 Channel Servo Motor Control Board + PS2 Controller + Receiver

32 Channel DOF a 32 Channel DOF b 32 Channel DOF c 32 Channel DOF d 32 Channel DOF e

32 Channel Servo Motor Control Board + PS2 Controller + Receiver for Arduino/Raspberry-Pi/17DOF Robotics

Product Description:
This is servo controller board with 32 channel can be control up to 32 servo motors at the same time, either by using a software on a PC, or UART communication (TTL serial port) of MCU (51, AVR, ARM, FPGA, PIC, etc.) to send commands to control the steering. You can also download instructions to the servo motor controller for offline operation. Wireless device compatible, it can also being set by the program we provided

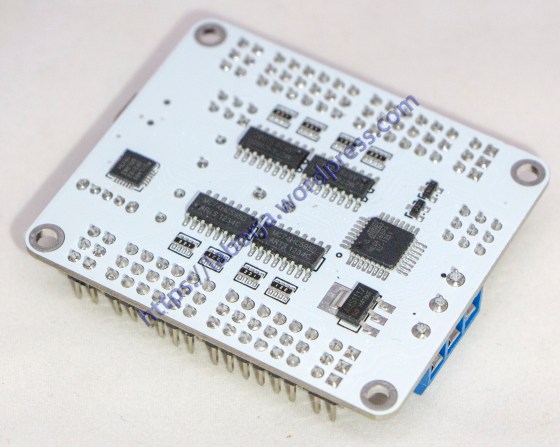

Description of 32 Channel servo controller:
Up to 32 servo motors can be controlled at the same time, to send commands to control the Servo. Can also download instructions to the servo motor controller for offline operation.
Powerful MCU
High controlling accuracy
Offline operation function
Identify baud rate automatically
Flash memory: onboard 512K ROM (If every command is used to control the 32 motors at the same time, more than 500 commands can be saved.)
Controlling MCU power supply: 6.5~12 V or 3.5~5.5V. (USB can be used to power the chip on servos board. And it can be chosen automatically. With the USB reverse protection, it can protect your computer from been hurted by the reverse USB.)
Servos power supply: DC (depends on the motors, generally 5V DC)
Control channels: 32. (can be controlled at the same time and the accuracy can be adjusted)
Dimensions: 60mm x 50mm x 1.6mm
Control mode: USB and UART (TTL) to accept command. (Comes with USB data wire and PC controlling software)

Wireless Controller and Receiver:
State of art 2.4GHz wireless technology, no more tangled cord.
Use 3xAAA Batteries (not included)
Ergonomic Analog Sticks & Directional Pad for superior control
Auto-detect feature for simplified set up
Third party product, not made by Sony
Package includes one controllers and one receivers

Control Panel Information
Using manual

Package included:
1 32-Channel Motor Controller Board
1 PS2 Wireless Controller
1 Receiver
1 USB Cable
