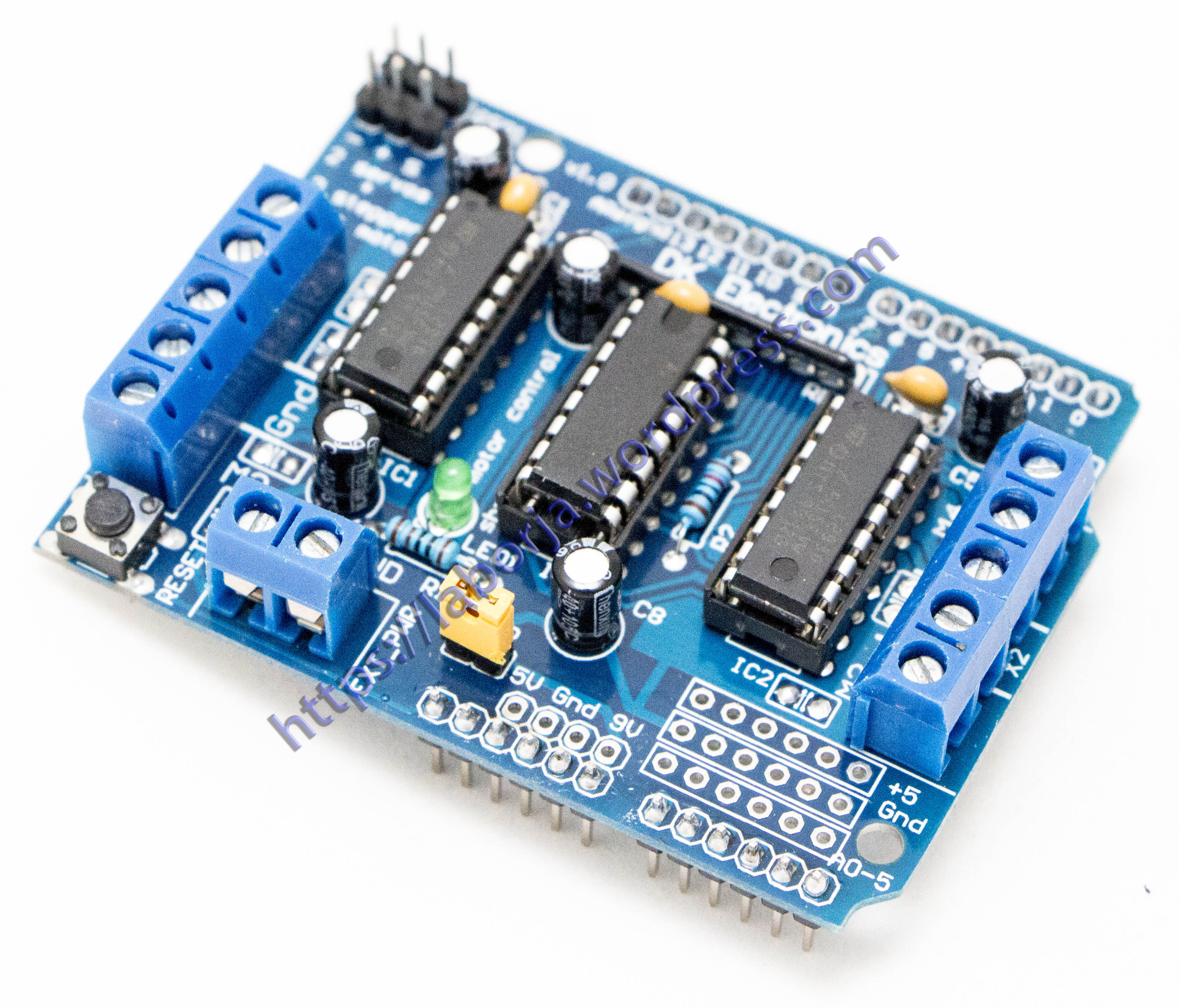

Motor Driver Shield Expansion Board L293D

L293D Motor Driver Expansion Board Control Shield

Product Description:
Material: PCB
Features: Can drive 4 DC motors or 2 stepping motors or 2 steering engine
Specification: Two 5V servo motor ports, connect to Arduino high resolution timer; Up to four two-way DC motors and each with 8-digit speed regulation (0.5% resolution); Up to two stepping motors positive & negative control, Single/double step control; 4-channel H-bridge: L293D chip provides each bridge 0.6A current and with thermal power-off protection, 4.5V to 36V; Big wire connection terminal posts (10-22AWG); With Arduino reset button; Compatible with Mega, Diecimila, Duemilanove
Application: DIY projects

Quick start
Data download

Packing List:
1 Expansion board
