MEGA Proto Shield

Proto Shield MEGA

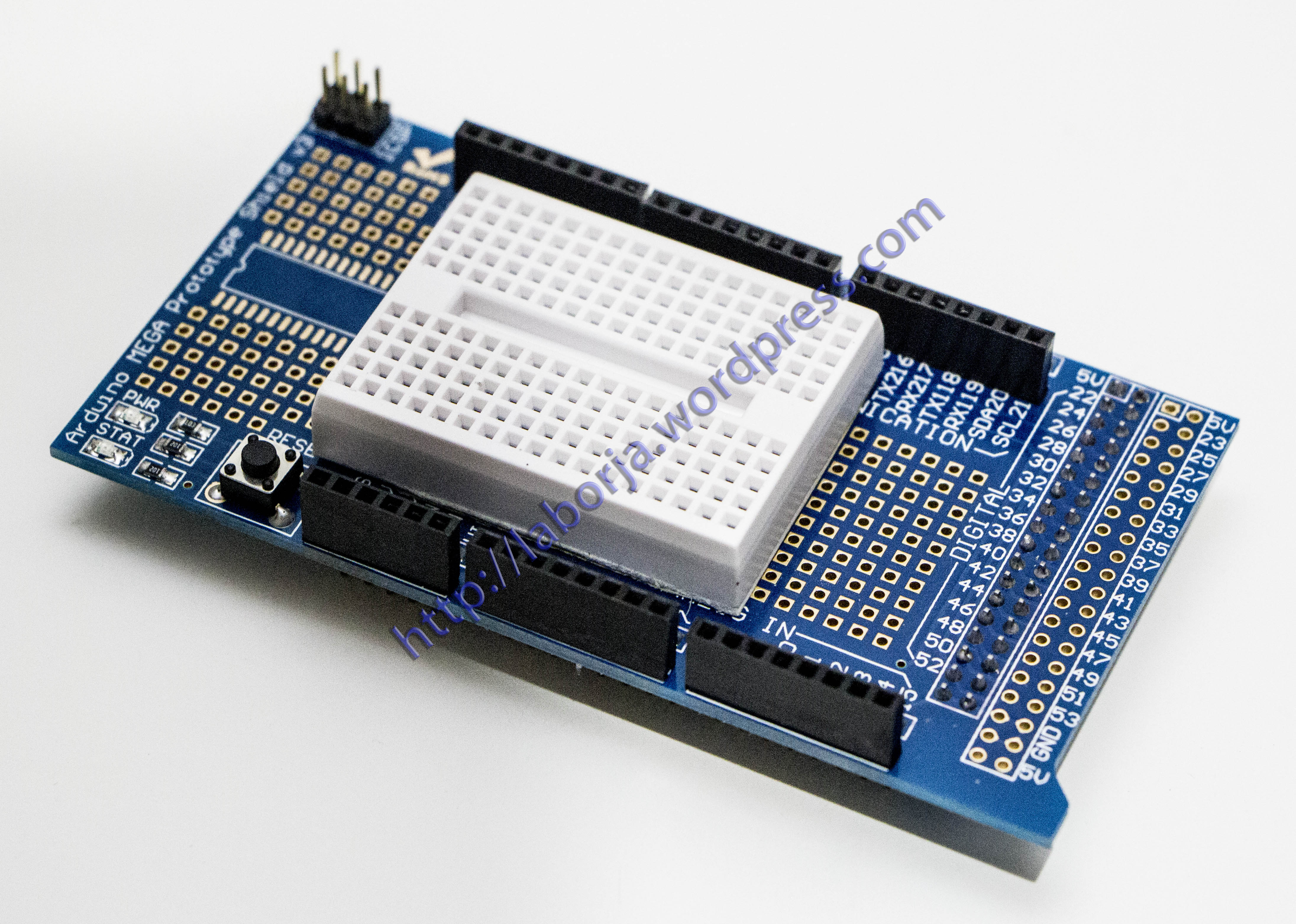

MEGA Proto Shield V3 prototype expansion board for mega 2560

Product Description:
The Arduino Mega Prototyping Shield makes it easy for you to design custom circuits. You can solder parts to the prototyping area to create your project, or use it with a small solderless breadboard (not included) to quickly test circuit ideas without having to solder. It’s got extra connections for all of the Arduino I/O pins, and it’s got space to mount through-hole and surface mount integrated circuits. It’s a convenient way to make your custom circuit and Arduino into a single module.

Summary:
A wide prototyping area with some extra features:
1.0 Arduino pinout
1 Reset button
1 ICSP connector
14 pin SMD footprint (50 mils pitch)
20 pin Through Hole footprint (100 mils pitch)

Package Include:
1 Mega Protoshield
1 Mini Breadboard
