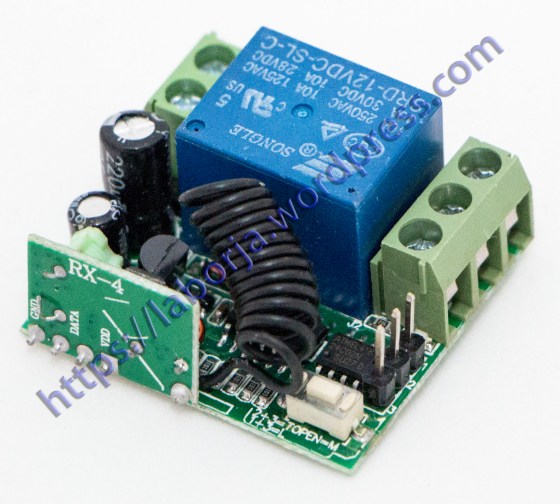

12V Signal Channel Fixed Encoding Switch + Wireless Remote Control
Wireless control, easy to install.
Control Lights, TVs, Motors, Fans, Cameras, Video signals, Audio signals, electrically operated Doors/ Locks/ Windows/ Blinds/ Cars
You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance;
The wireless signal can pass through walls, floors and doors.
Reliable control: The transmitter (Encoding) and the receiver (Decoding) use an code.
If you use two or more receivers in the same place, you can set them with different codes
Suitcase-type enclosure, easy to protect from dust and moisture
Small size convenient to keep a hidden installation
Fixed code reliable and stable
Data bit is adjustable and flexible
Operating frequency: 315/433MHz
Working voltage: DC12V
Operating current: 8.9Ma
Encoding type: pad
Maximum Load: 7A
Size: 40mm X 37mm X 25mm(approx)
Control size: 60x38x18mm(approx)
Output working way:
Jog/Non-Latched: press one button is working /ON. loosen your finger on the same button is stop/OFF .one channel switch need one buttons remote control
Self -lock/Self-Latched: press one button for one time is working/ON .press the same button again is stop/OFF .(one channel switch need one buttons remote control
Inter-lock/Latched: press one button is working/ON, press another button is stop/OFF. (one channel switchneed 2 buttons remote control )
Press the learning button 3 seconds, the indicator light off, then you press any buttons of the remote control to transmite signal, it means studying successfully when the indicator flash 3 times until the indicator light on.
Press the learning button about 8 seconds, the indicator turn on to off to on, it means the information that you keep have been removed successfully.

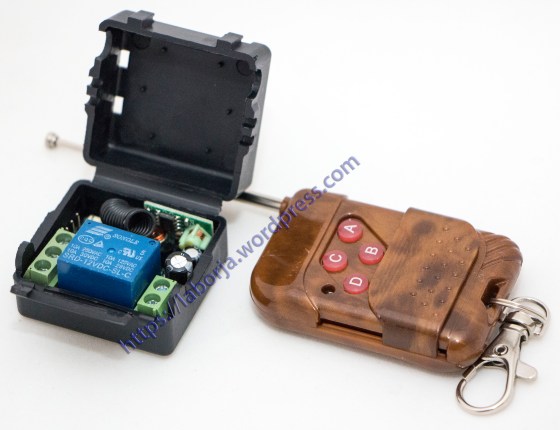

1 Signal Channel Remote Control Switch
1 Remote Control
