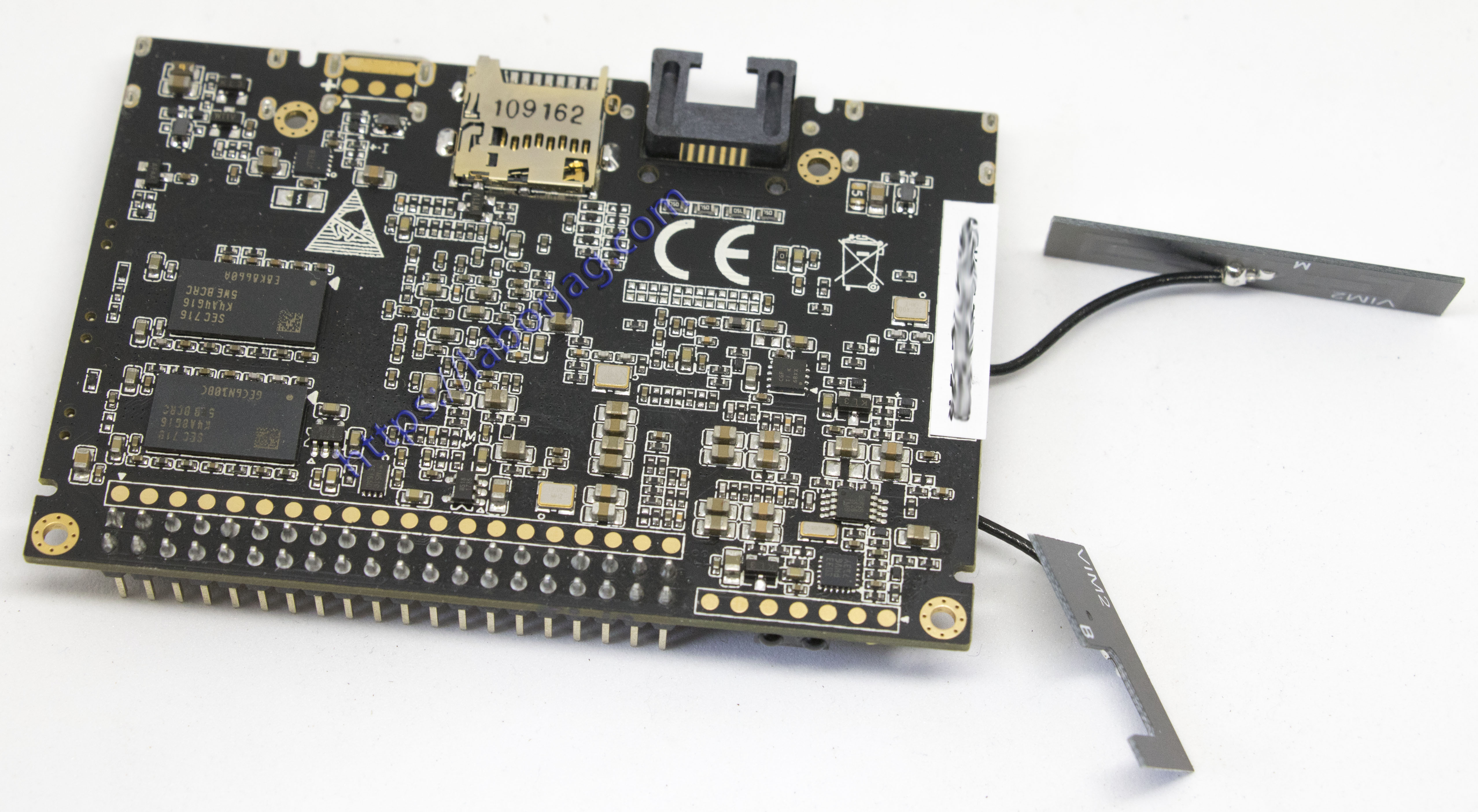

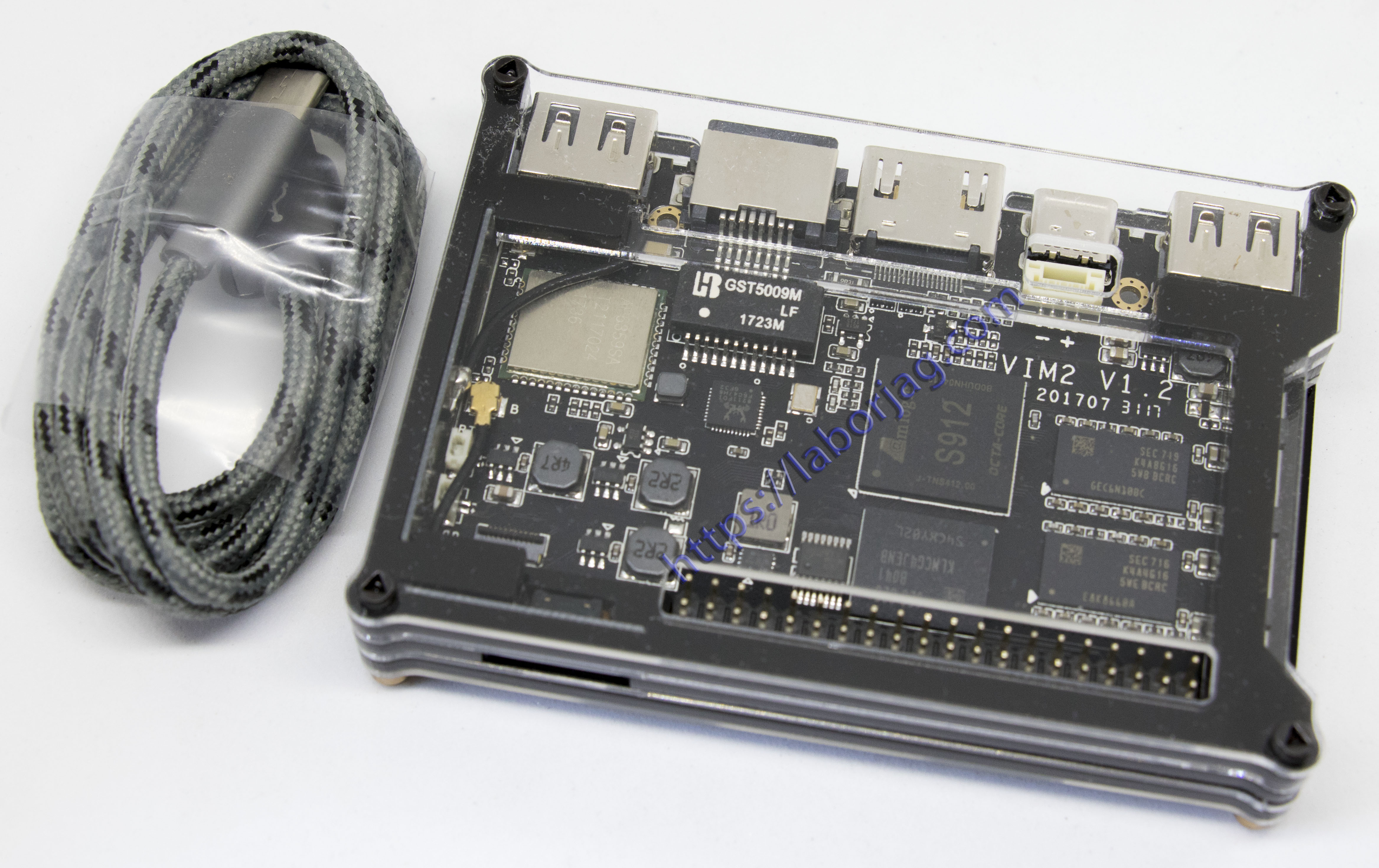

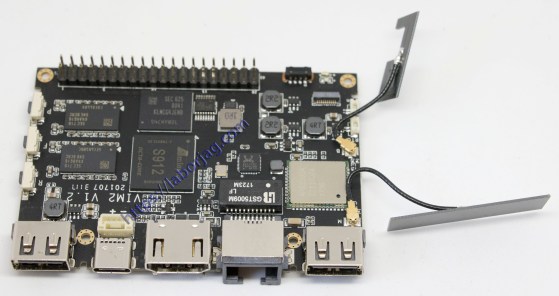

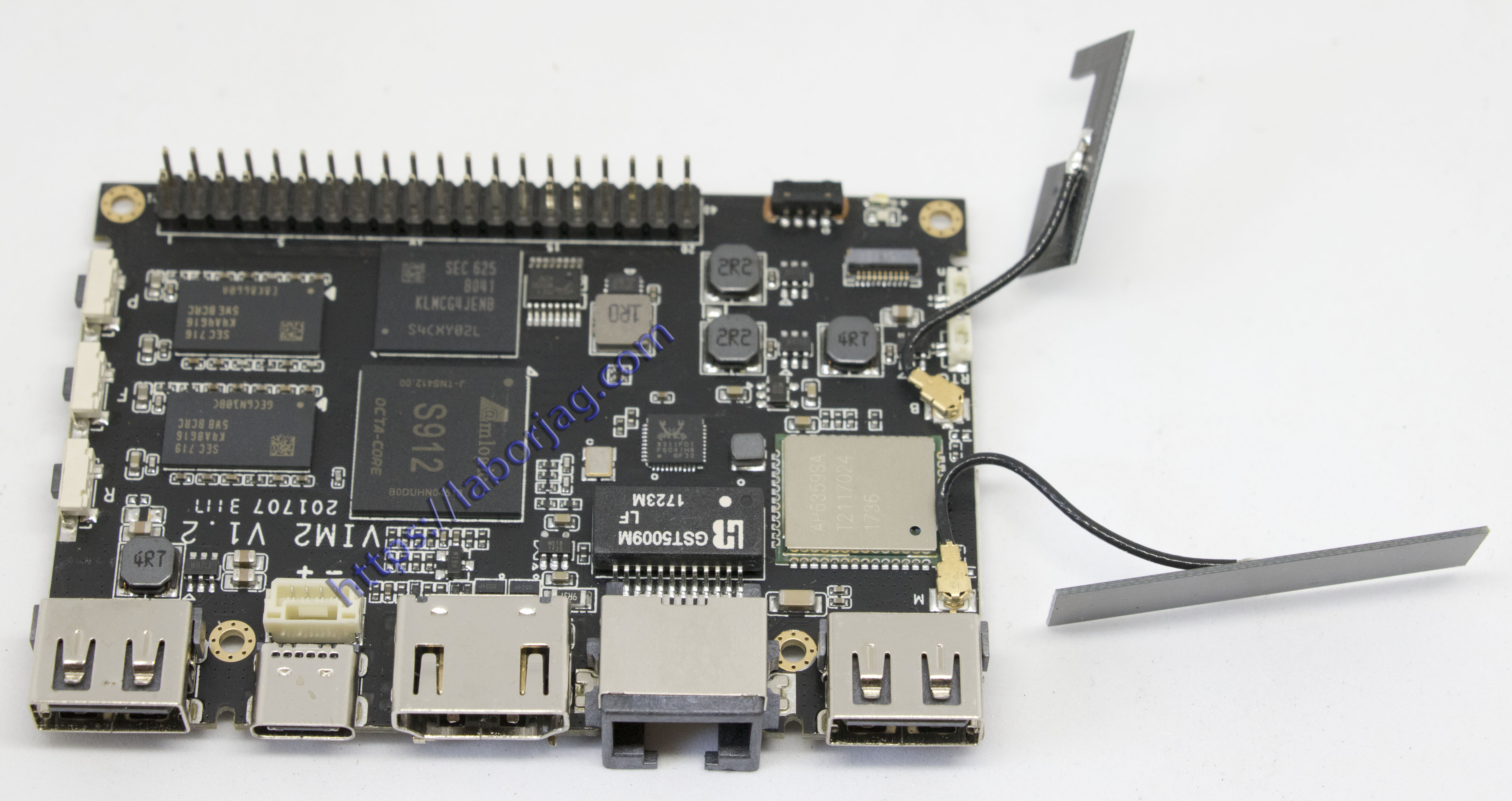

Khadas VIM2 Max

Khadas VIM2 Max TV Box Amlogic S912 Octa Core 3G RAM DDR4 32G ROM Open Source SBC 2 x 2 MIMO WiFi Gigabit LAN with WOL

Product Description:
The Khadas Vim 2 development board designed and released by Khadas for hobbyists, makers and electronic fans in mind it is actually an Android TV box. Do not be fooled by this board originally designed to watch your favorite TV series. Current Home theater PC needs such as streaming 4K video, fast VPNs to watch HD Internet TV across borders or Game Console Emulators cause these boards have really advanced features uncommon on other cheap boards such as dual band WiFi ac support, powerful GPUs, eMMC-based fast storage and large amounts of RAM.

Main Features:
MCU: power management, EEPROM for customization, and boot media (SPI flash or eMMC) setup
All models feature with 802.11a/b/g/n/ac
RSDB (Real Simultaneous Dual Band), which lets VIM2 and other devices transmit and receive data over two bands at the same time
WOL: power on or wake up VIM2 remotely over Lan through APP or web page
UEFI: similar with traditional BIOS, UEFI is a specification that defines a software interface between an operating system and platform firmware
The UEFI for VIM2 is still at the developmental stage and will be released once finalized

Brand: Khadas
Type: TV Box
Processor: Amlogic S912
CPU: Cortex A53
Core: Octa Core
GPU: ARM Mali-T820MP3
RAM: 3G RAM
RAM Type: DDR4
ROM: 64G ROM
Power Supply: USB Port
Power Type: Digital Power Supply
Package weight: 0.197 kg
Product size (L x W x H): 9.20 x 6.60 x 2.20 cm / 3.62 x 2.6 x 0.87 inches
Package size (L x W x H): 10.20 x 7.60 x 3.20 cm / 4.02 x 2.99 x 1.26 inches

More Info
Github Khadas
Khadas Community

Package Contents:
1 Khadas VIM2 Max
1 USB-C Cable
