CRIUS MWC MultiWii SE

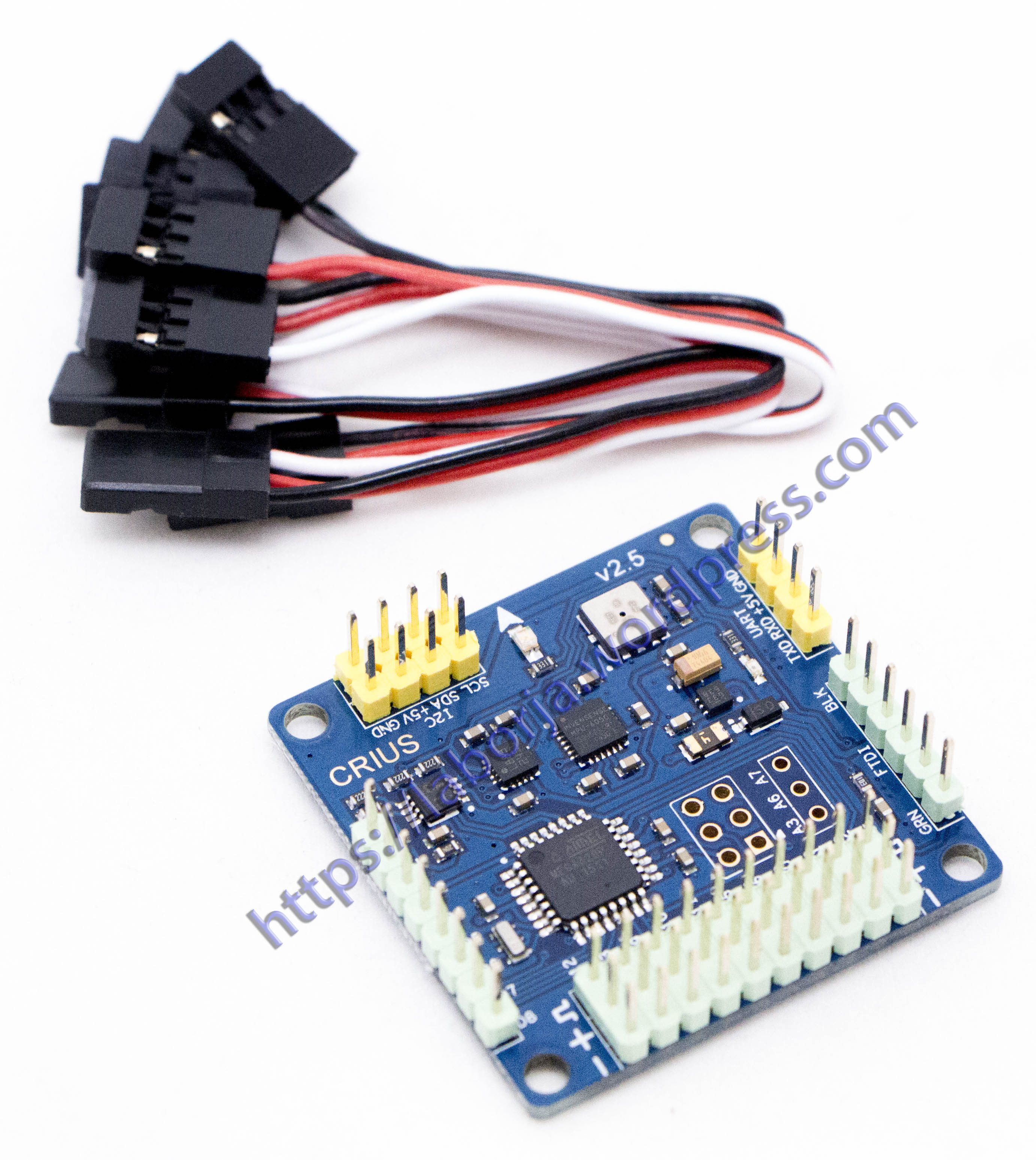

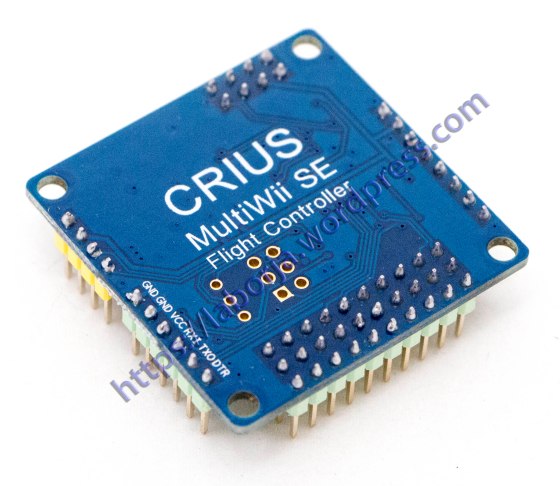

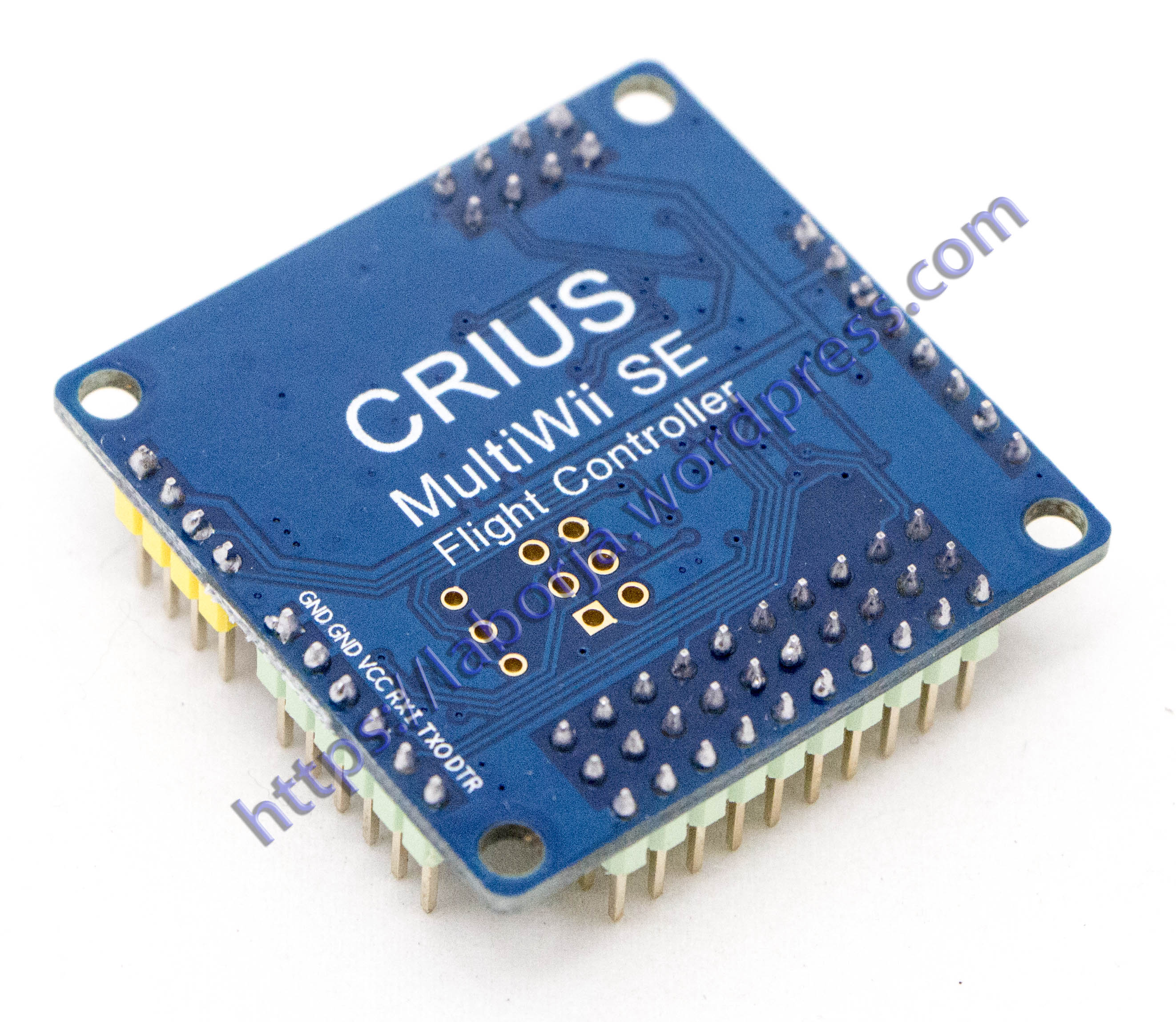

CRIUS MWC MultiWii SE Flight Controller

The Multiwii SE is a gyro/accelerometer based flight controller that is loaded with features. With expandability options and full programmability, this device can control just about any type of aircraft. This is the ideal flight controller for your multi-rotor aircraft.

Features:
• Small size, 35x35mm mounting holes
• 6 input channels for standard receiver and PPM SUM receiver
• Up to 8-axis motor output
• 2 servos output for PITCH and ROLL gimbal system
• Can utilize a servo’s output to trigger a camera button
• FTDI/UART TTL socket for debug, upload firmware or LCD display
• I2C socket for extend sensor, I2C LCD/OLED display or CRIUS I2c-GPS NAV board
• Separate 3.3V and 5V LDO voltage regulator
• ATMega 328P Microcontroller
• MPU6050 6 axis gyro/accelerometer with Motion Processing Unit
• HMC5883L 3-axis digital magnetometer
• BMP085 digital pressure sensor
• On board logic level converter

Flight mode:
• One of the following basic mode
– Acro
– Level
– Alt Hold
– Head Lock
• Optional mode
– HeadFree (CareFree)
– GPS Hold (Need GPS receiver + I2C-GPS NAV Board)
– GPS Return to home position (Need GPS receiver + I2C-GPS NAV Board)

Specs:
Dimension: 40x12x40mm
Weight: 9.6g
Fixing hole spacing: 35mm (It can be changed to 45mm by CRIUS Distribution Board)
Hole diameter: 3mm

Package content:
1 MultiWii SE FC
2 3 Pin to 1 Pin x 3 cable 100mm
1 3 Pin to 3 Pin cable 100mm
