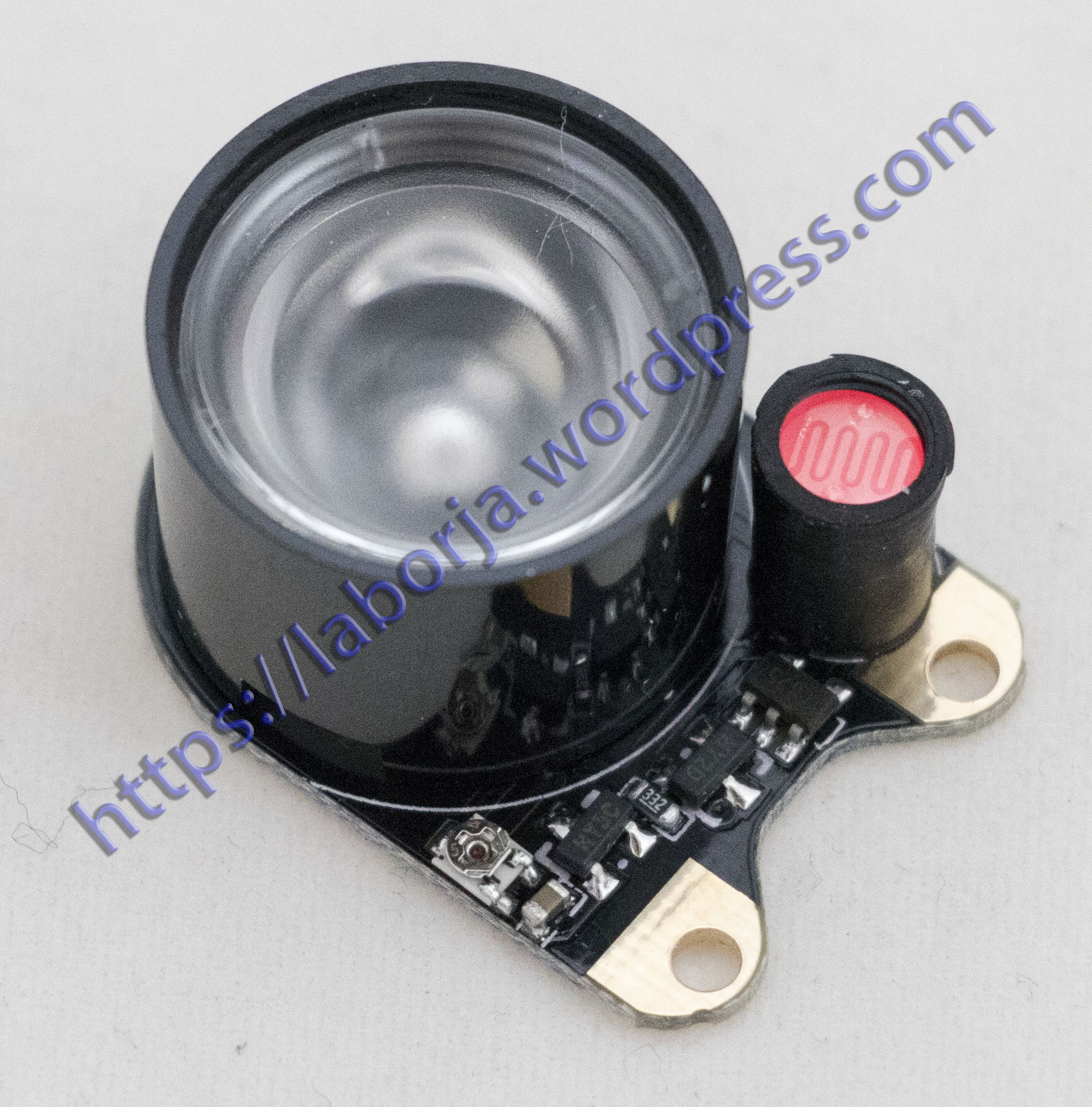

Infrared LED Light for Raspberry Pi Camera

infrared-led-raspi

Infrared LED Light 3W 850 Raspberry Pi Camera Board Module Night Vision Infrared IR

Product Description:
3W high-power 850 infrared LED
Onboard photoresistor, the ambient light detector
Onboard adjustable resistor, for controlling the ambient light threshold of toggling the infrared LED
Allows adding night vision function to RPi Camera (E) or RPi Camera (F)

How to Use:
Connect the Infrared LED Board to the camera PCB by screws
The screw holes are used for both attachment and power supply
Adjust the adjustable resistor to set a proper ambient light threshold, which toggles the infrared LED automatically
When ambient light is lower than threshold value, the infrared LED is on, vice versa

Note:
Limited by the Raspberry Pi power supply, the 3W high-power infrared LED might cause the Pi to increase heating, heat sinks are suggested.
Ideal imaging distance is within 3m. When the distance goes up to 6m, the night vision camera can just capture blurry outlines.
