LilyPad 328

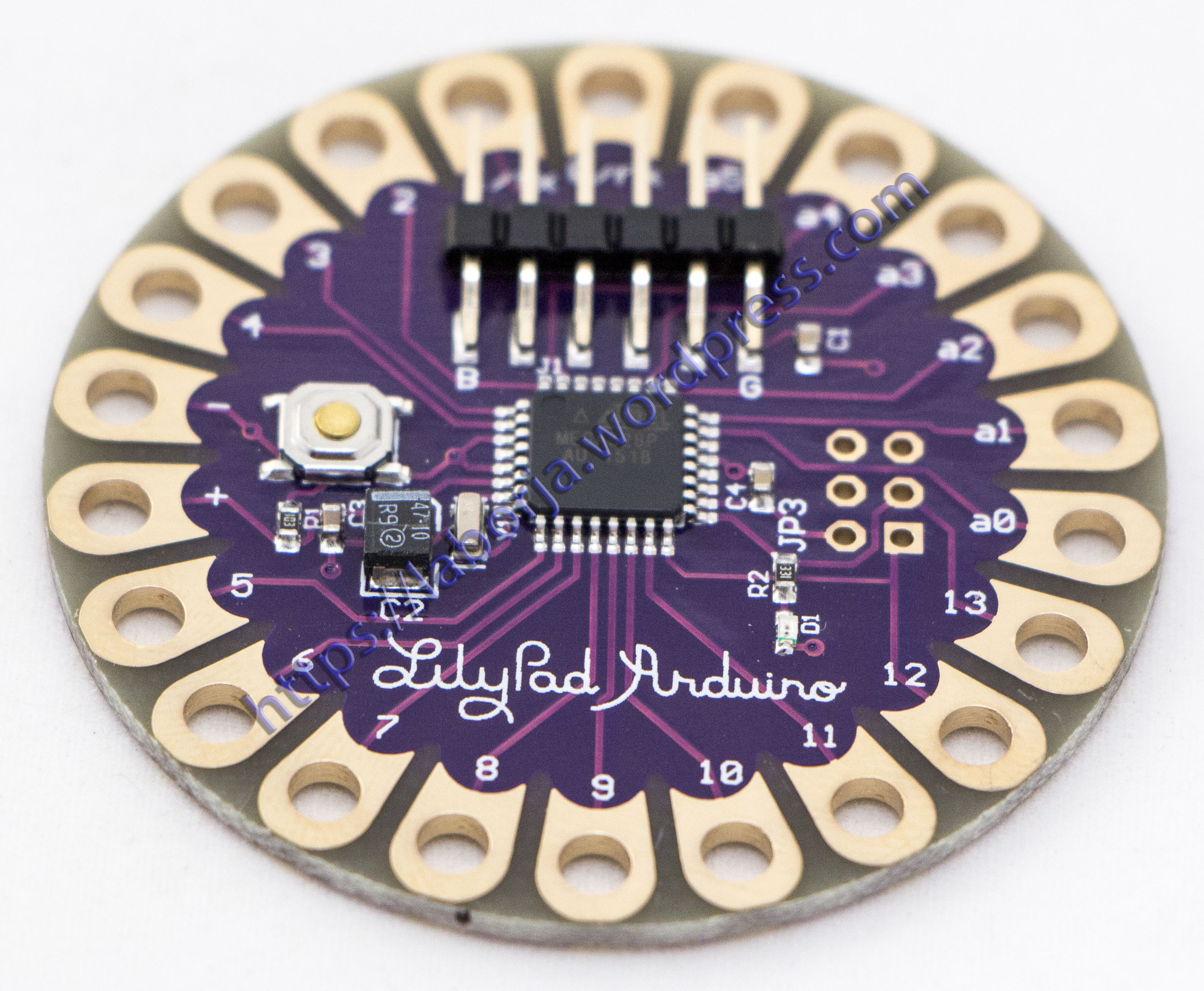

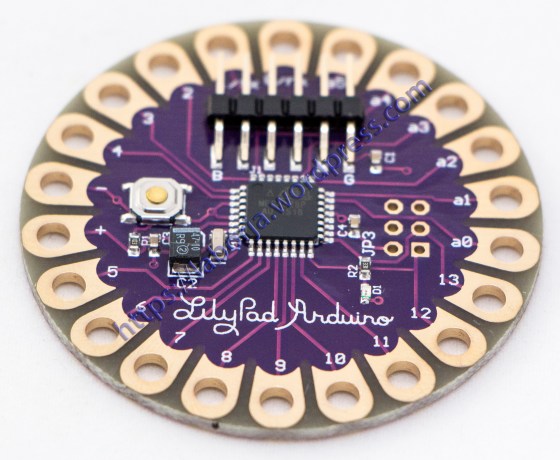

LilyPadLilyPad 328 Main Board ATmega328P ATmega328 16M

Product Description:
The LilyPad Arduino is designed for e-textiles and wearables projects. It can be sewn to fabric and similarly mounted power supplies, sensors and actuators with conductive thread.

In the Getting Started section, you can find all the information you need to configure your board, use the Arduino Software (IDE), and start to tinker with coding and electronics.

Microcontroller: ATmega328V
Operating Voltage: 2.7-5.5 V
Input Voltage: 2.7-5.5 V
Digital I/O Pins: 14
PWM Channels: 6
Analog Input Channels: 6
DC Current per I/O Pin: 40 mA
Flash Memory: 16 KB (of which 2 KB used by bootloader)
SRAM: 1 KB
EEPROM: 512 bytes
Clock Speed: 8 MHz

WarningDon’t power the LilyPad Arduino with more than 5.5 volts, or plug the power in backwards, you’ll kill it.
