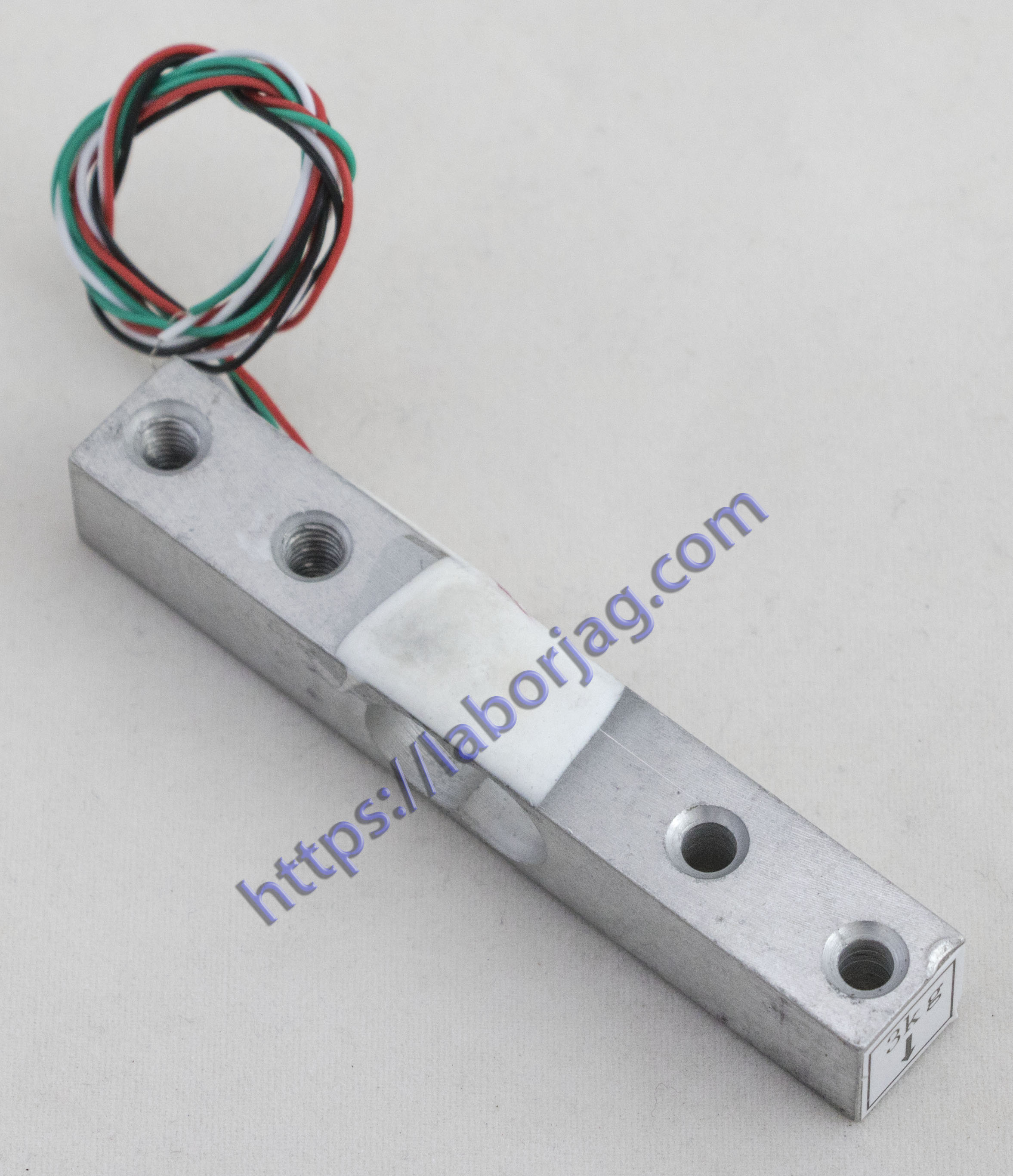

The Strain Gauge Pressure Sensor Load Cell Electronic Scale Sensor
Product Description:
Rated load: 3KG
Rated output: 1.0 +- 0.15mV / V
Nonlinear: 0.03% FS
Lag: 0.03% FS
Repeatability: 0.03% FS
Creep (5 minutes): 0.03% FS
Temperature Effect on Output: 0.01% F.S / C
Temperature effect on zero: 0.05% F.S / C
Zero Balance: +- 0.1000 mV / V
Input impedance: 1115 +-10%
Output impedance: 1000 +- 10%
Insulation Resistance: >= 1000 M
Safety overload rate: 150% FS
Ultimate overload rate: 200% FS
Operating Temperature Range: -20 – 60 C
Recommended operating voltage: 3 to 12 VDC.
Maximum operating voltage: 15 VDC
Material: Aluminum alloy
Protection class: IP65
Cable: 0.8 × 25 cm
Table size: 150 x 150 mm
Wiring:
Red: Power +
Black: Power –
Green: Signal +
White: Signal –
