Nichrome Wire

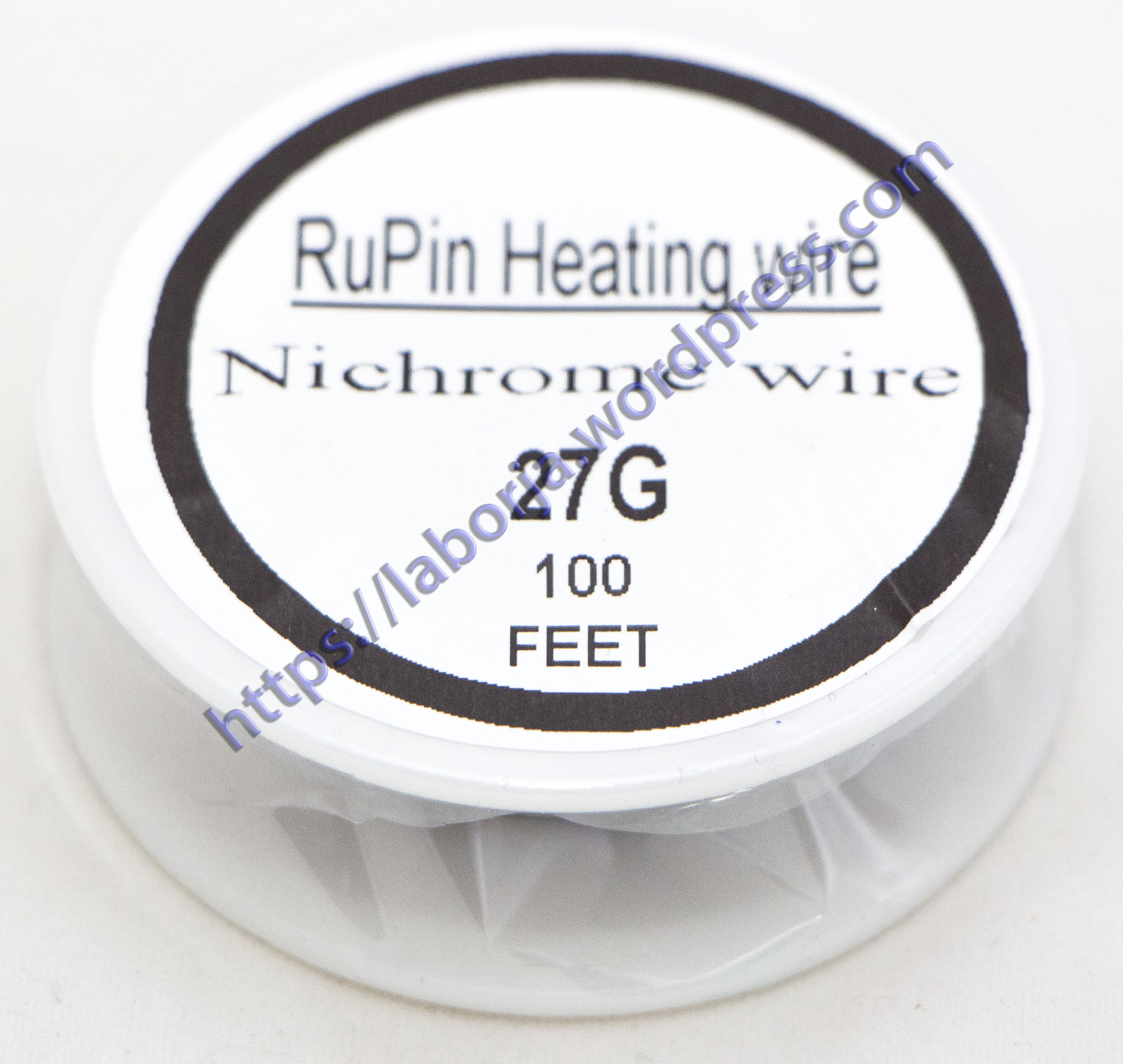

24G 26G 27G 28G 30G 32G

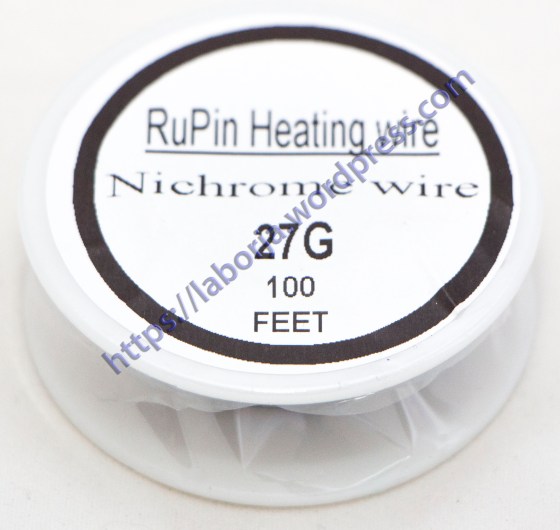

RuPin Heating Wire Nichrome wire

Product Description:
Applications: RuPin Heating elements (hair dryers, ovens, toasters, kilns), model and high
power rocket motor and recovery ejection charge ignition, heat sealers, poly cutters, foam
cutters, resistors, rheostats, current-temperature controls, pyrotechnic ignition,
electronic cigarettes, lab inoculating loops, release mechanisms, ceramic support in kilns.
Alloy: Nichrome
Length: 1 meter
Resistance (Ohms/ft @ room temp): 10.55
Shape: Round
Heat treatment: Annealed (soft)
Melting temperature: 1350°C (2462°F)
Maximum operating temperature: 1150°C (2100°F)
Density: 0.2979 lbs. per cubic inch
Specific heat capacity at 20°C (68°F): 8.247
Thermal expansion: 14 x 10^(-6) per °C

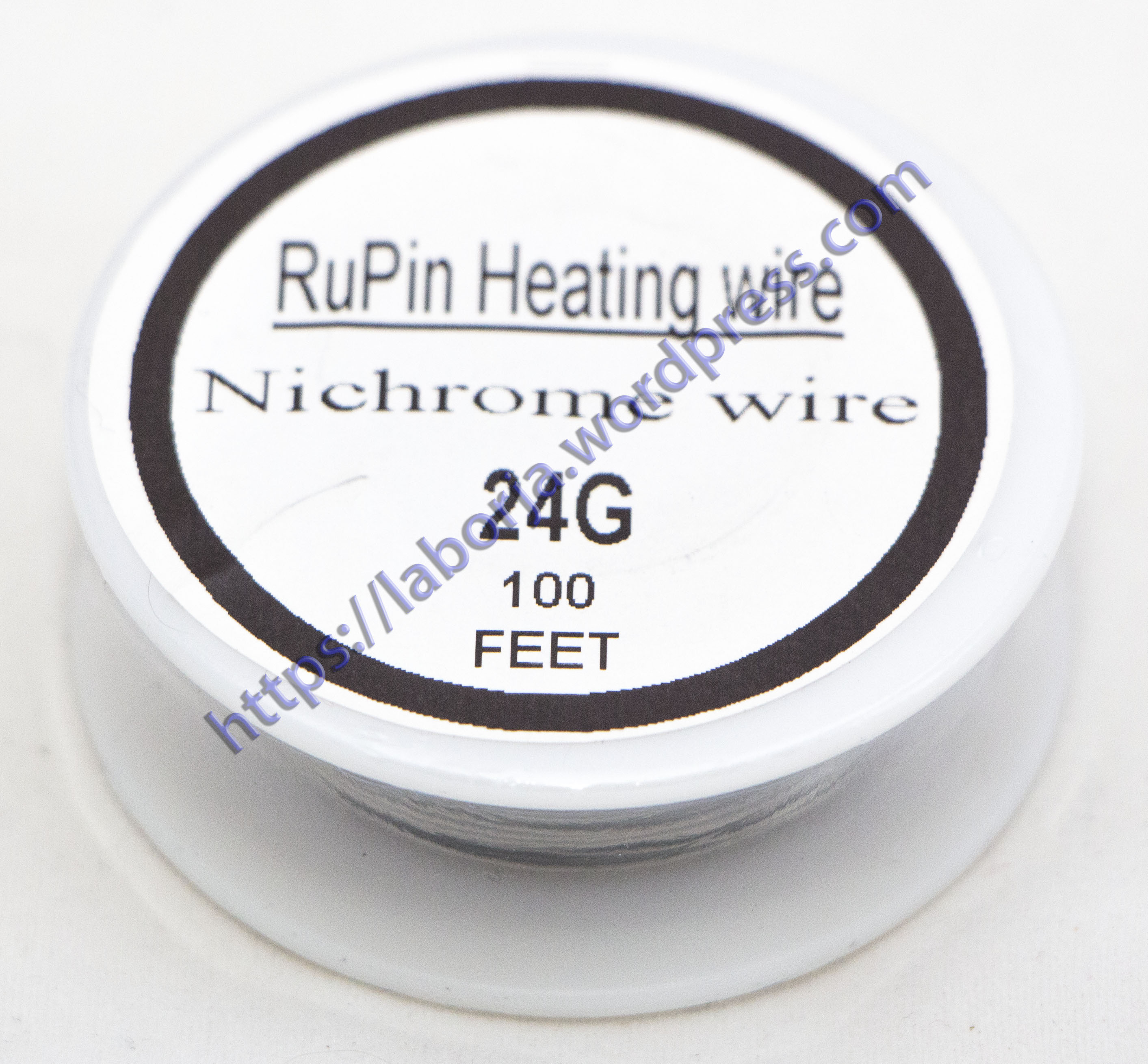

Gauge: 24 AWG
Average Wire Diameter: 0.5mm
Weight: 34g

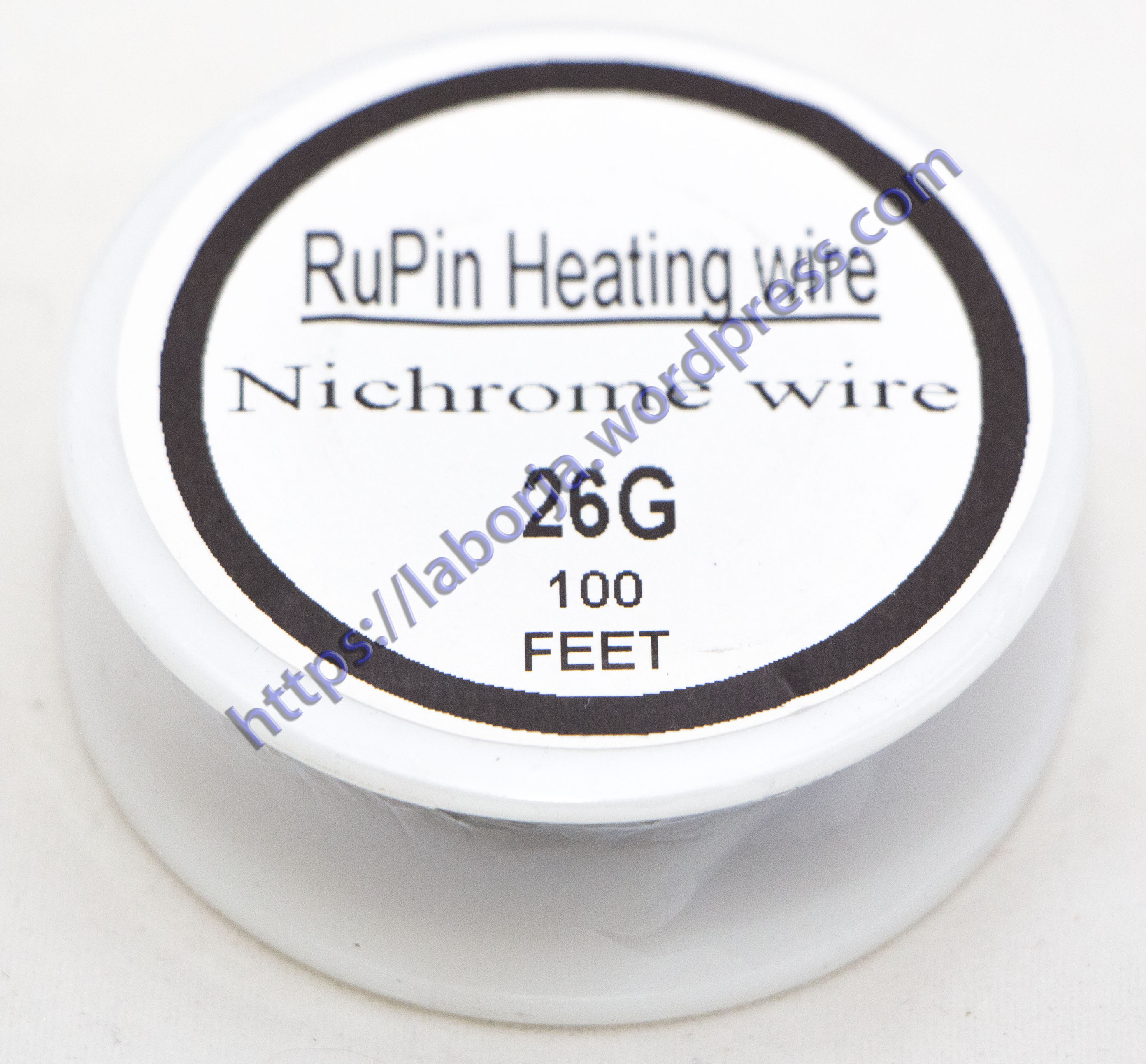

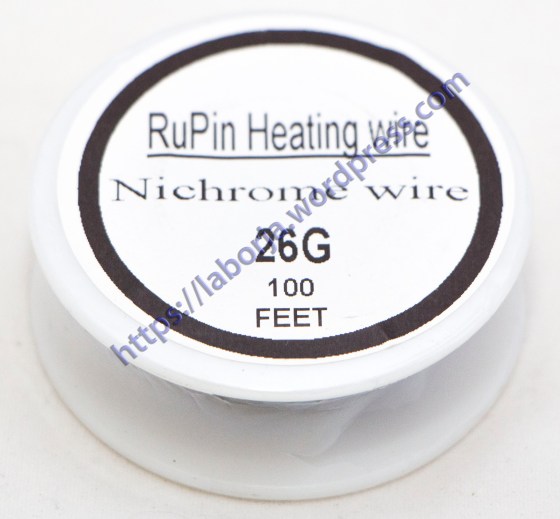

Gauge: 26 AWG
Average Wire Diameter: 0.4mm
Weight: 30g

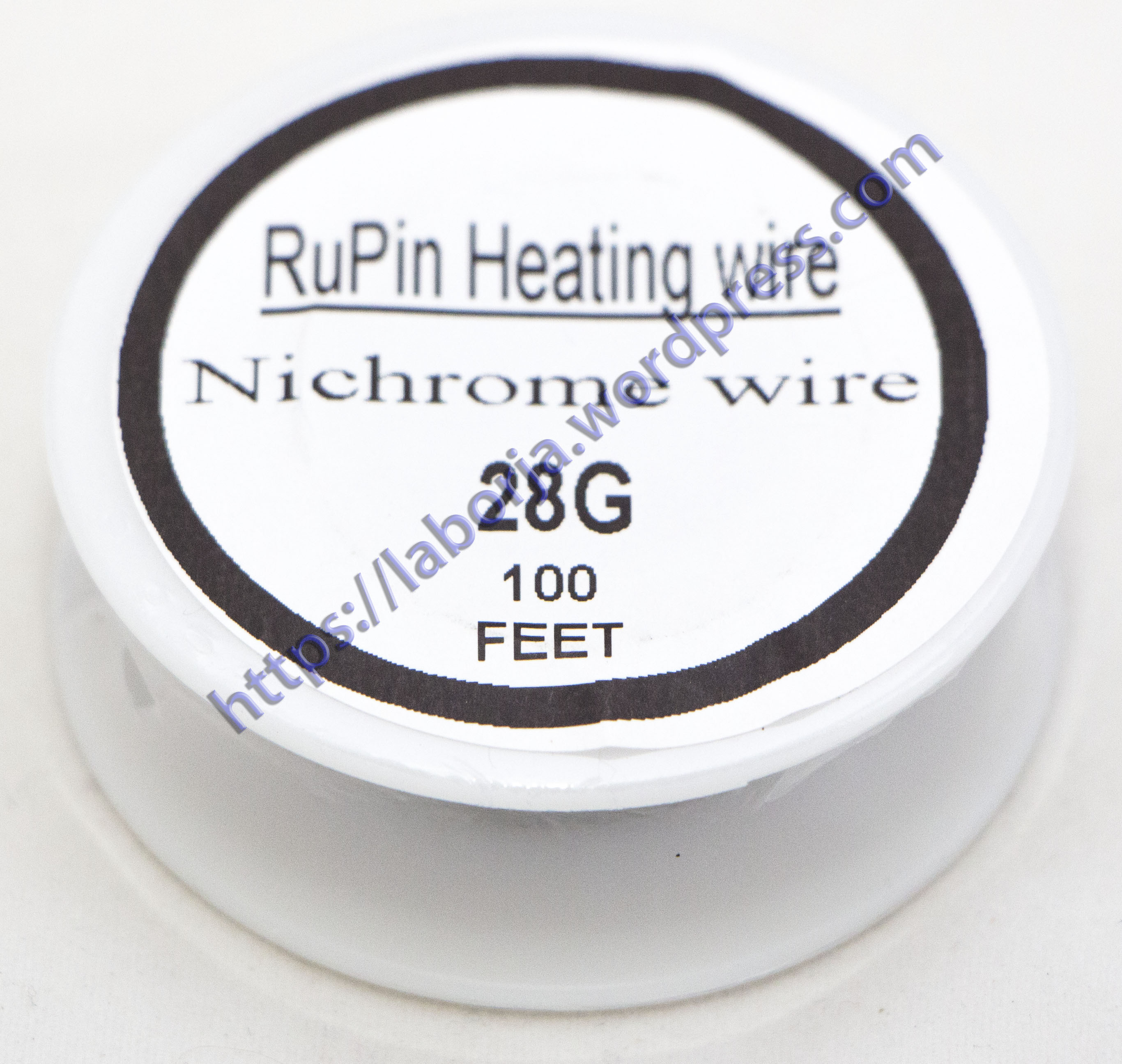

Gauge: 28 AWG
Average Wire Diameter: 0.32mm
Weight: 24g

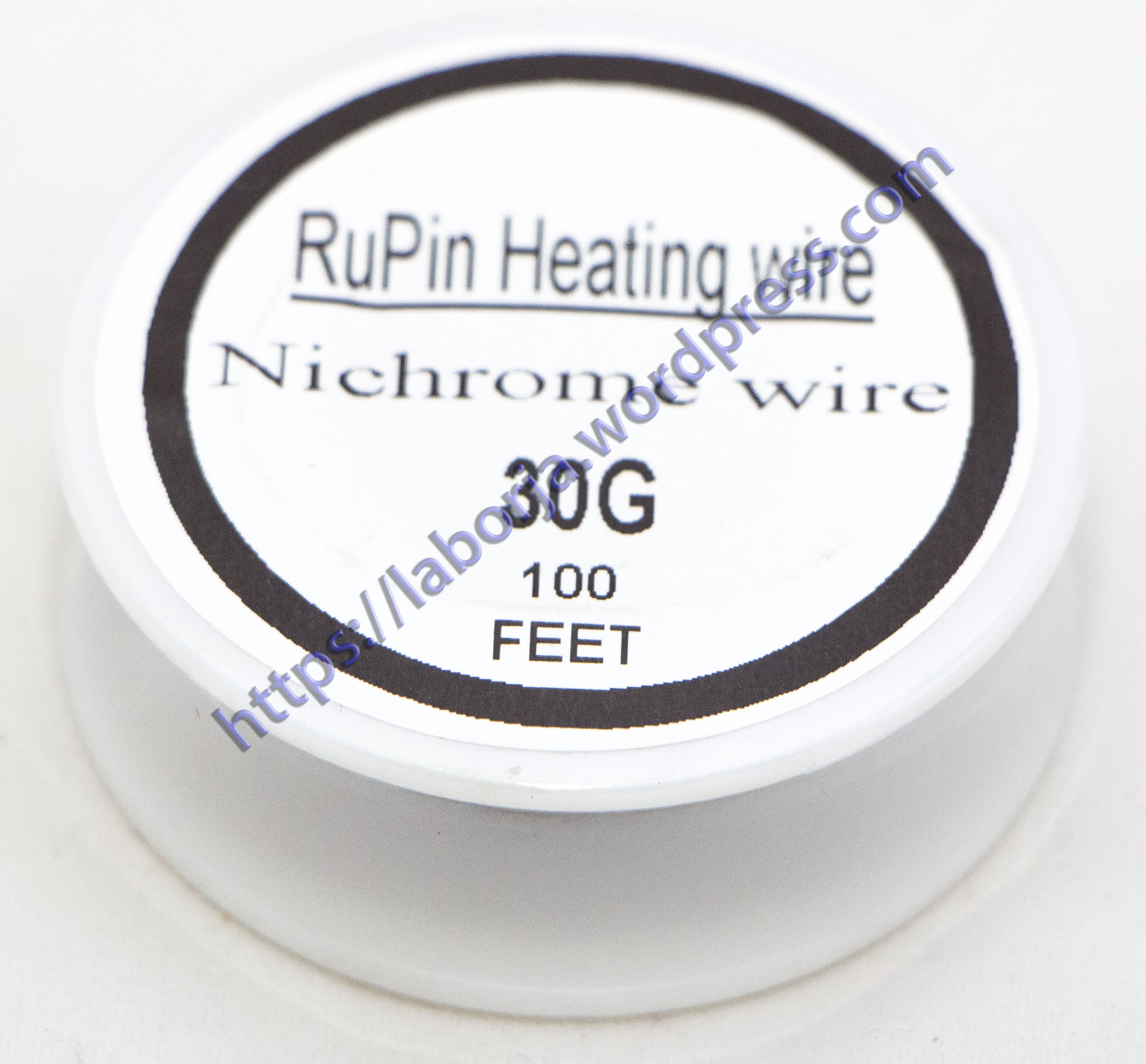

Gauge: 30 AWG
Average Wire Diameter: 0.25mm
Weight: 22g

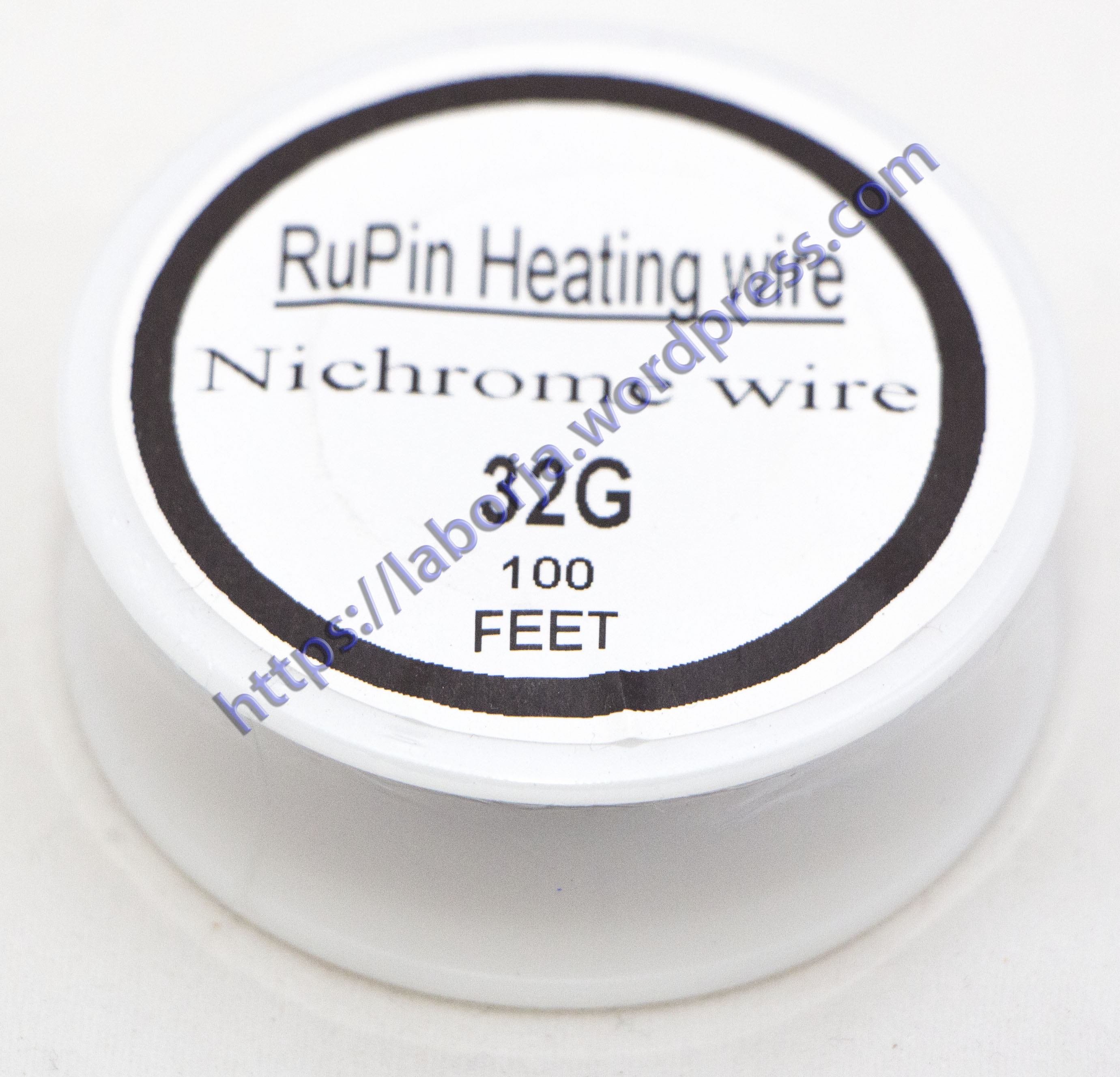

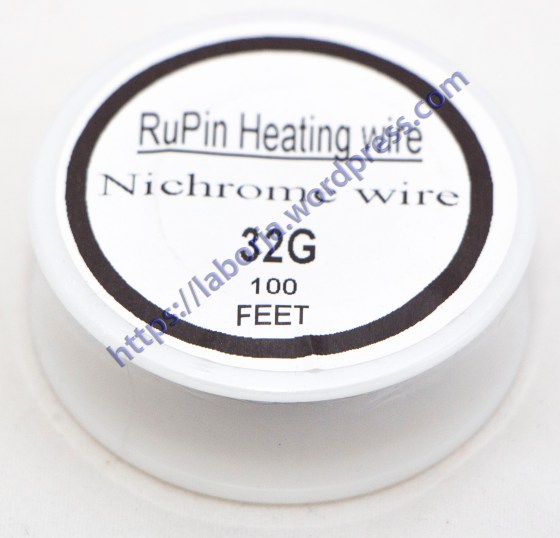

Gauge: 32 AWG
Average Wire Diameter: 0.2mm
Weight: 18g
