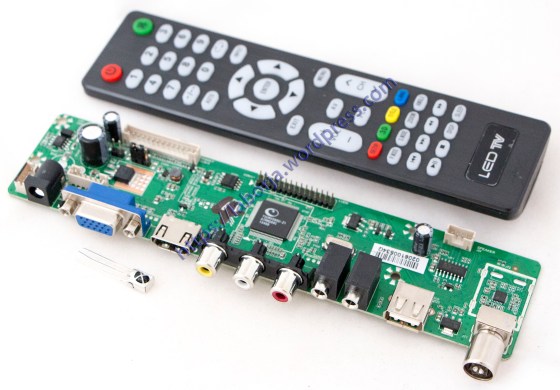

V59 Universal LCD TV Controller Driver Board

V59V59 Universal LCD TV Controller Driver Board PC/VGA/HDMI/USB Interface

Product Description:
Model: LA.MV9.P V59
Scheme of the chip: V59
Input Interface: PC / VGA / HDMI / TV / USB multimedia playing
Voltage: Single 12 V
Screen interface: LVDS Single 6 / 8 , Double 6 / 8
Screen voltage: 3.3V / 5V / 12V
Resolution: Support high screen 1920 * 1080 8.9-42 inch LVDS screen
Burning method: to record the screen program in the USB flash disk, USB flash disk inserted into board, plug in the keypad, electricity; About after a few seconds, press the keypad lights start alternating red and green flash, flash lights began to write programs (please do not power), light in the slow flash first, after a slow flash flash, will speed up the quick flash, long after the last until the lights stop flashing light is the program written, electricity burn with USB flash disk to complete the program.

Not only USB interface can be used to upgrade programs, but also can use to play video, basically formats are supported. You can also set a boot display pictures or LOGO

Notice:
1. The power requirement of 12V4A
2. Screen voltage jump line according to the working voltage of screen jump to the corresponding position
3. Use to adapt to the board of general screen line
4. The screen line not to reverse and dislocation

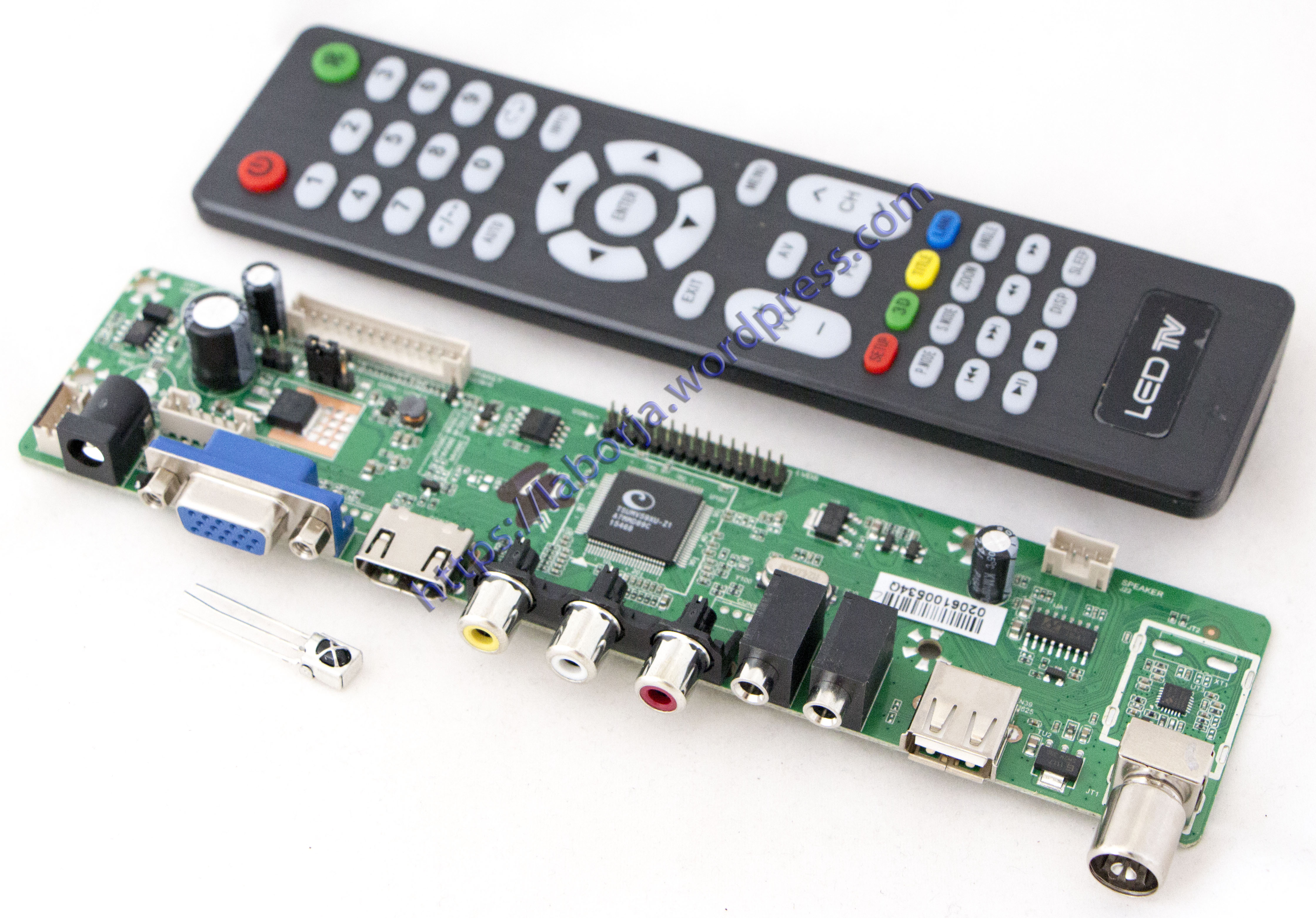

Package included:
1 V59 Controller Board
1 Remote control
