Waterproof Ultrasonic Module JSN-SR04T

Ultrasonic WaterUltrasonic Water b

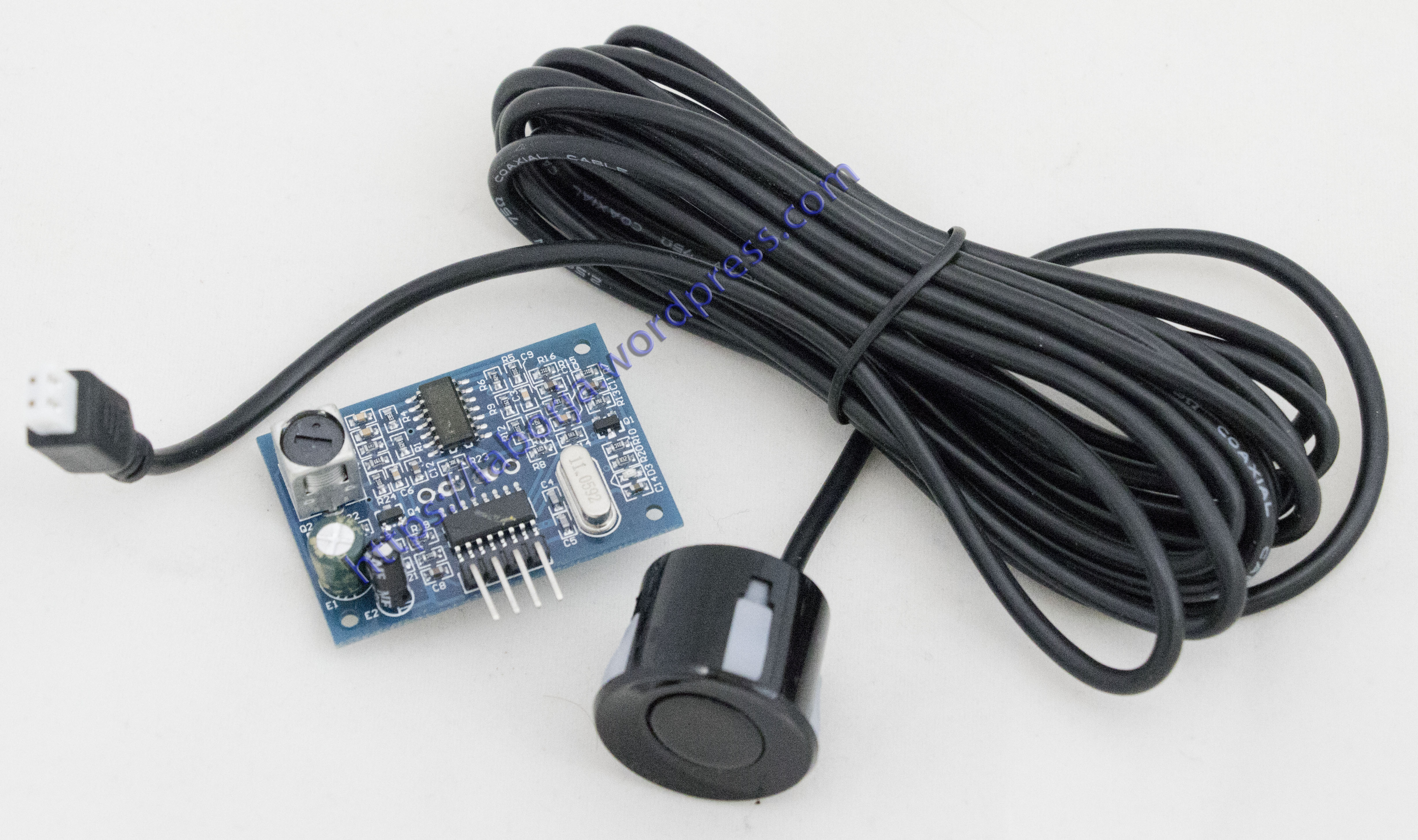

Waterproof Ultrasonic Module JSN-SR04T Water Proof Integrated Distance Measuring Transducer

Product Description:
Electrical properties:
1. Electrical parameters: JSN-SR04T
2. Operating voltage: DC 5V
3. Quiescent current: 5mA
4. Total current work: 30mA
5. Acoustic emission frequency: 40khz
6. Farthest distance: 4.5m
7. Blind: 25cm

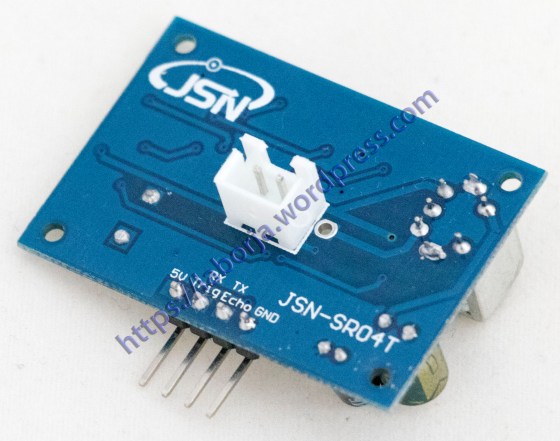

8. Wiring: + 5V (positive power supply)
Trig (control side) RX
Echo (the receiver) TX
GND (negative)
9. Resolution: about 0.5cm
10. Angle: less than 50 degrees
11. Working temperature: -10 ~ 70 Celsuis
12. Storage temperature: -20 ~ 80 Celsuis

Product Features:
1. Small size, easy to use
2. Low voltage, low power consumption
3. High accuracy
4. Strong anti-jamming
5. Integrated with wire enclosed waterproof probe, suitable for wet, harsh measurement occasions

Application:
1. Horizontal distance;
2. Obstacle avoidance, automatic control;
3. The object approaches, there is a perceived
4. Traffic control;
5. Security, industrial control;
6. Artificial intelligence, and research
