MFRC-522 RFID Card Sensor Module


RF module IC card MFRC-522 RFID sensing module to send S50 Fudan White Card Keychain

Product Description:
RC522 chip
MF RC522 is applied to the highly integrated read and write 13.56MHz contactless communication card chip, NXP launched by the company for the «table» application of a low-voltage, low-cost, small size of the non-contact card chip to read and write, smart meters and portable handheld devices developed better choice. The MF RC522 use of advanced modulation and demodulation concept completely integrated in all types of 13.56MHz passive contactless communication methods and protocols. 14443A compatible transponder signals. The digital part of to handle the ISO14443A frames and error detection. In addition, support rapid CRYPTO1 encryption algorithm, terminology validation MIFARE products. MFRC522 support MIFARE series of high-speed non-contact communication, two-way data transmission rate up to 424kbit / s. As new members of the 13.56MHz reader card series of highly integrated chip family, MF RC522 MF RC500 MF RC530 There are a lot of similarities, but also have many of the characteristics and differences.Communication between it and the host SPI mode helps to reduce the connection narrow PCB board volume, reduce costs.

RFID module
The MF522-AN module the the original Philips MFRC522 chip design circuit card reader, easy to use, low-cost, applies to the user equipment development, the reader and the development of advanced applications, the need for the the RF card terminal design / production of user. This module can be directly loaded into the various reader molds. Utilizes a voltage of 3.3V, through the SPI interface simple few lines directly with any user CPU motherboard connected communication can ensure that the module is stable and reliable work, distance card reader;

Electrical parameters
Operating current: 13-26mA / DC 3.3V
idle current: 10-13mA / DC 3.3V
Sleep Current: <80uA
peak current: <30mA
Operating frequency: 13.56MHz

Supported card types: the mifare1 S50, mifare1 S70 MIFARE Ultralight, mifare Pro the mifare Desfire
product physical characteristics: size: 40mm × 60mm
Environment Operating Temperature: -20-80 degrees Celsius
Environment Storage Temperature: -40-85 degrees Celsius
ambient relative Humidity: 5% -95% relative humidity

Module interfaces SPI Parameter
Data transfer rate: maximum 10Mbit / s

Library MFRC522
Datasheet MFRC522
More Information

Shipping list

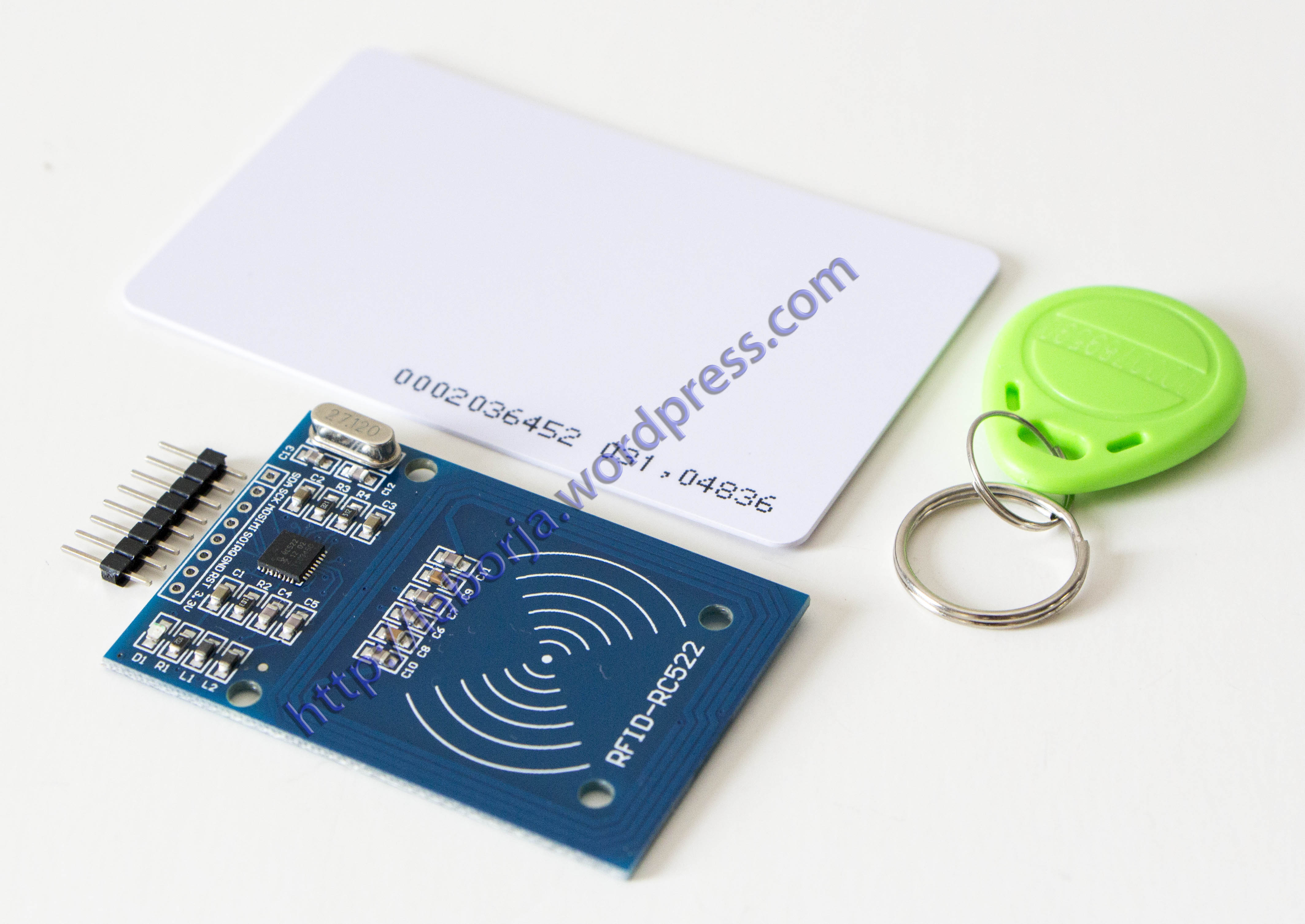

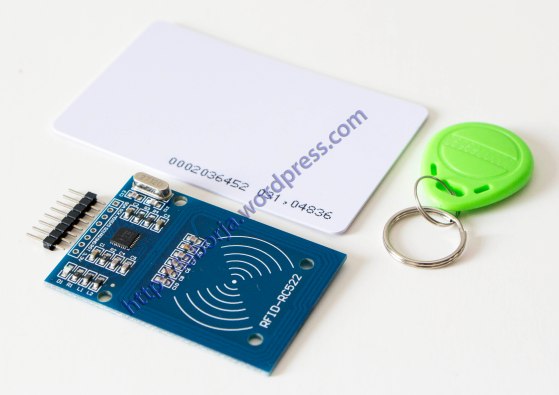

1 RFID-RC522 Module
1 Standard S50 blank card
1 S50 profiled a card (as shown in the figure keychain shape)
1 vertical, curved row of pins
