STM32 ARM Development Board

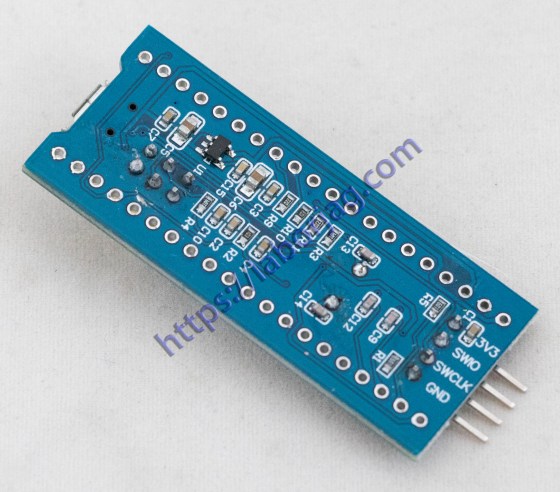

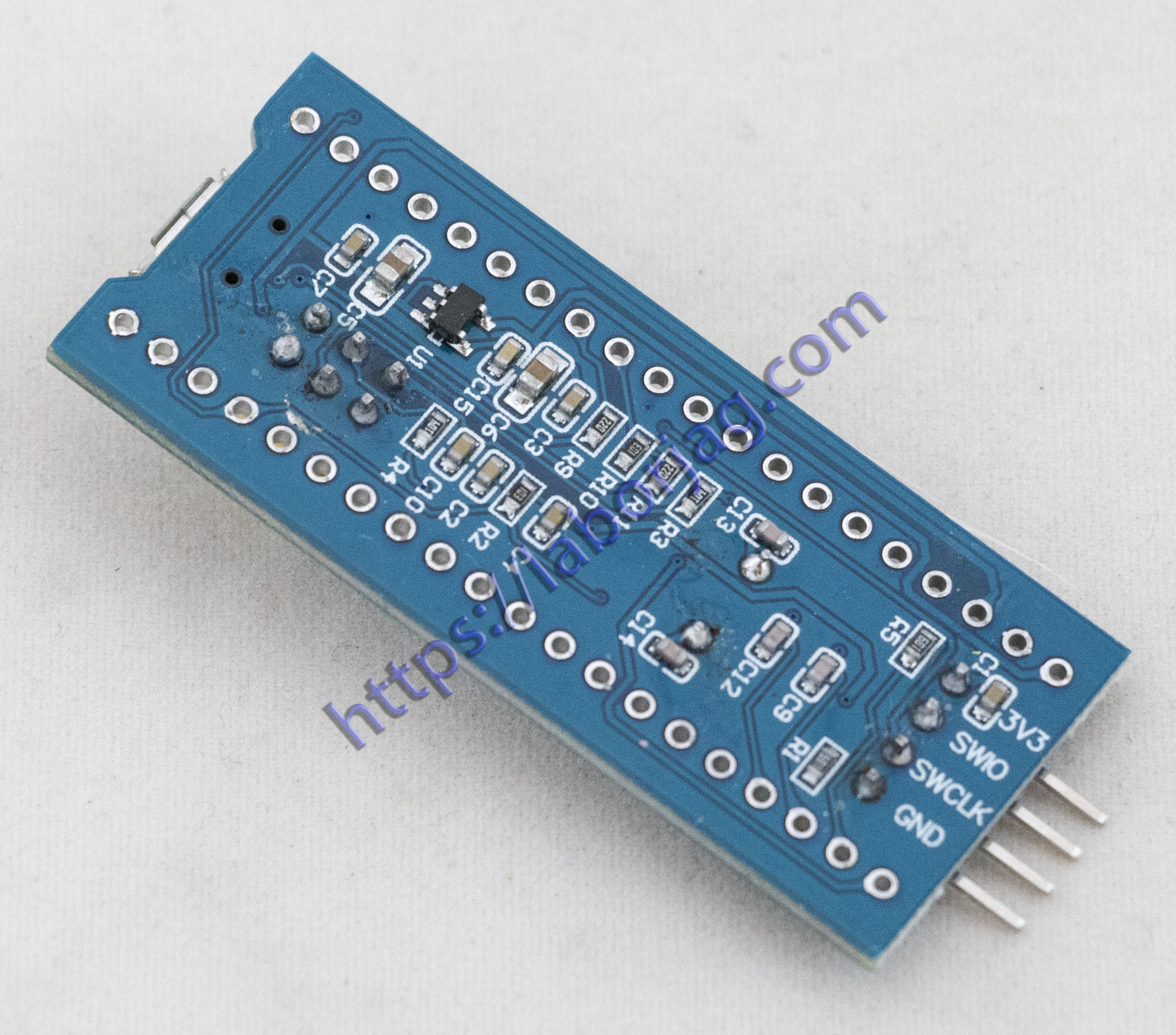

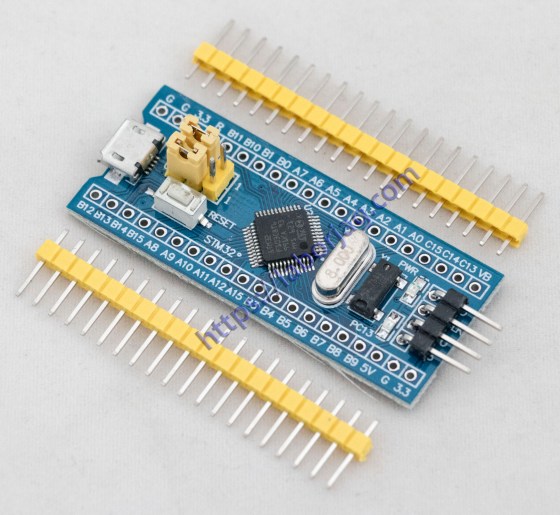

STM32F103C8T6 ARM STM32 Minimum System Development Board Module

Product Description:
The STM32F103xx medium-density performance line family incorporates the high-performance ARM®Cortex®-M3 32-bit RISC core operating at a 72 MHz frequency, high-speed embedded memories (Flash memory up to 128 Kbytes and SRAM up to 20 Kbytes), and an extensive range of enhanced I/Os and peripherals connected to two APB buses. All devices offer two 12-bit ADCs, three general purpose 16-bit timers plus one PWM timer, as well as standard and advanced communication interfaces: up to two I2Cs and SPIs, three USARTs, an USB and a CAN.

Features:
Model: STM32F103C8T6
Core: ARM 32 Cortex-M3 CPU
Debug mode: SWD
72MHz work frequency
64K flash memory, 20K SRAM
2.0-3.6V power, I/O
Reset(POR/PDR)
4-16MHz crystal
On-board Mini USB interface, you can give the board power supply and USB communication
Size: 5.3cm x 2.2cm
