Transmitter Receiver TS832 RC832 5.8Ghz 600mW

5KM FPVOK 5.8G 5.8Ghz 600mW 32CH Wireless Audio Video Radio Transmitter Receiver TS832 RC832 For DJI FPV Camera fpv quadcopter

Product Description:
THIS IS THE NEW 32-CHANNEL EDITION OF 5.8G 600mW A/V WIRELESS SYSTEM.

32 channels: Cover A, B, E bands and F band (Airwave band), 4 bands and all frequencies compactable;
Two switching buttons: CH button for frequencies channels switching, FR button for frequencies bands switching;
Two digits display: one for CH and the other for FR, real-time positioning which frequency band and which channel received;
Power off memory: Replay the very last frequency band and channel
Independent video and audio signal outputs

Product Details:
FPV 5.8G 600mW A/V Transmitting/Receiving System TS832 + RC832 – 32CH Edition | RP-SMA video format supported: NTSC/PAL
Antenna connection: RP-SMA, jack (module side, both TX and RX)

TX TS832 specs:
Power input: 7.4-16V (3S Lipo suggested)
Transmitting power: 600mA
Antenna gain: 2db
Working current: 220mA at 12V
Video bandwidth: 8M
Audio bandwidth : 6.5M
Weight: 22g
Dimension: 54x 32x 10mm (excluding antenna)
Frequency and channel frequency table:
RX RC832 Specs:
Power input: 12V
Working current: 200mA max
Antenna impedance: 50?
Antenna gain: 2db
Video impedance: 75?
Video format: NTSC/PAL auto
Dimension: 80x 65 x15mm
Weight: 85g

Note: TX antenna must be installed properly before it is switched on, power on without install antenna, or a improper antenna was used may easily burn the TX, and such damage is not covered by warranty.

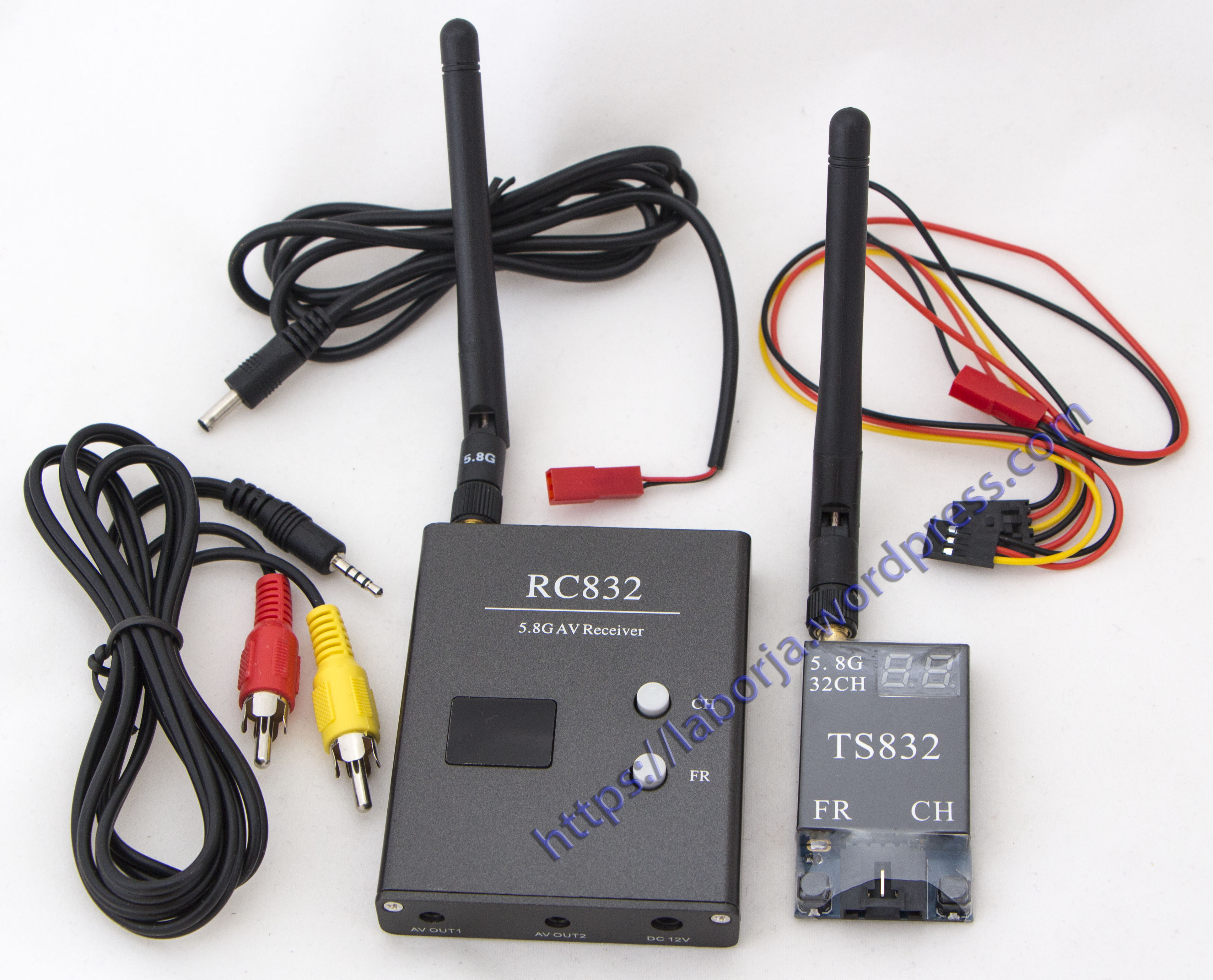

Package includes:
1 Transmitting unit (TX)
1 Receiver (RX)
2 Antennas (2db)
1 Power cable for RC832
1 AV cable for RC832
1 Power cable for TX832
