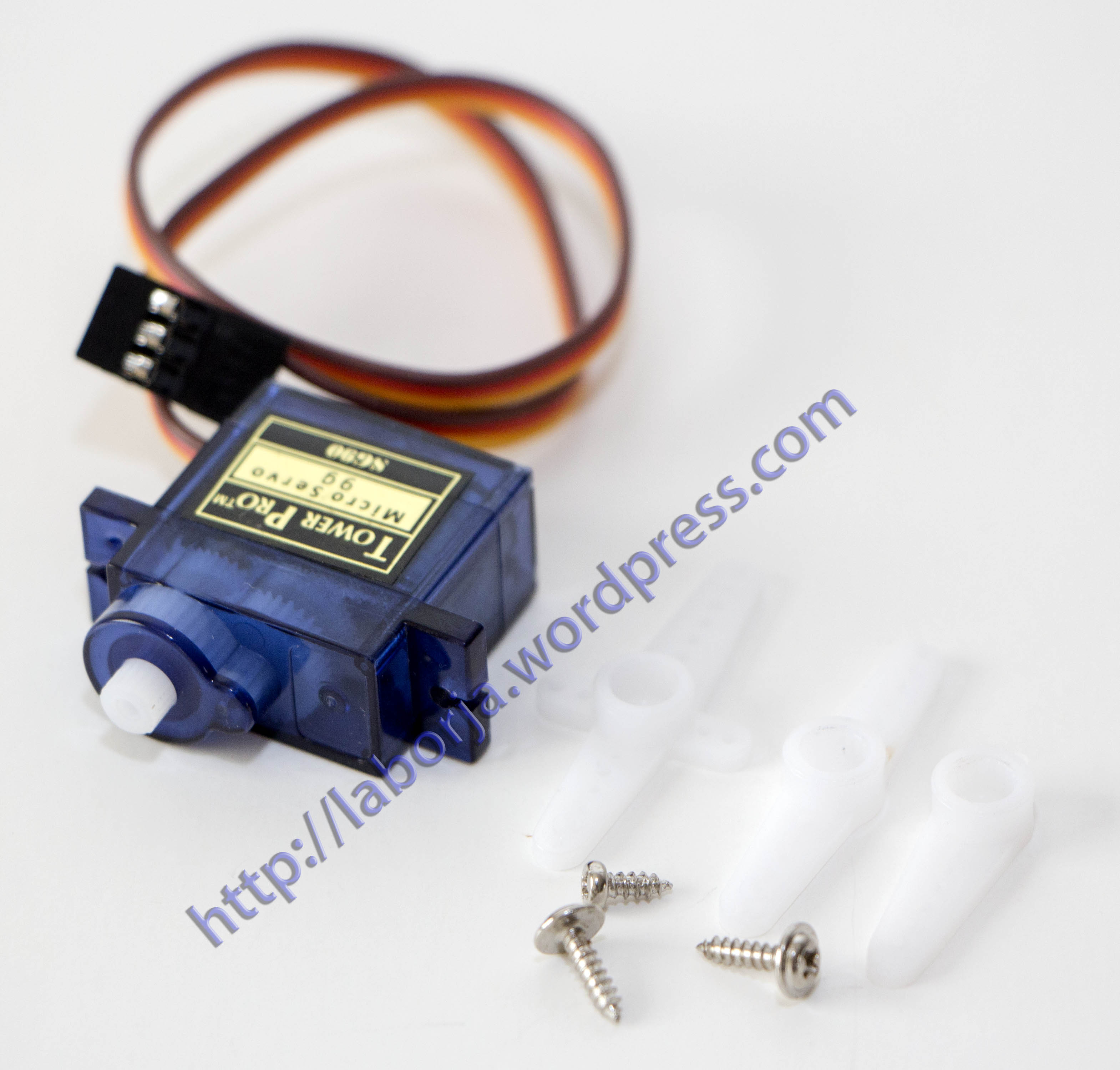

SG90 Micro Servo 9g
Description:
Fit for ALL kind of R/C Toys
Coreless motor
3 pole wure
All nylon gear
Dual ball bearing
Connector wire length 150mm
Each servo comes with 3 different servo horns and fittings
Dimension: 22mm x 11.5mm x 22.5mm
Net Weight: 9 grams
Operating speed: 0.12second/ 60degree ( 4.8V no load)
Stall Torque (4.8V): 17.5oz /in (1kg/cm)
Temperature range: -30 to +60
Dead band width: 7usec
Operating voltage: 3.0V~7.2V
Steering gear definition of three lines:
Dark gray: GND
Red: VCC 4.8-7.2V
Orange line: pulse input
Datasheet
Servo Specs and Reviews (popular servos)
How work with servos
Packet content:
1 SG90 Servo 9g (with accessories)
