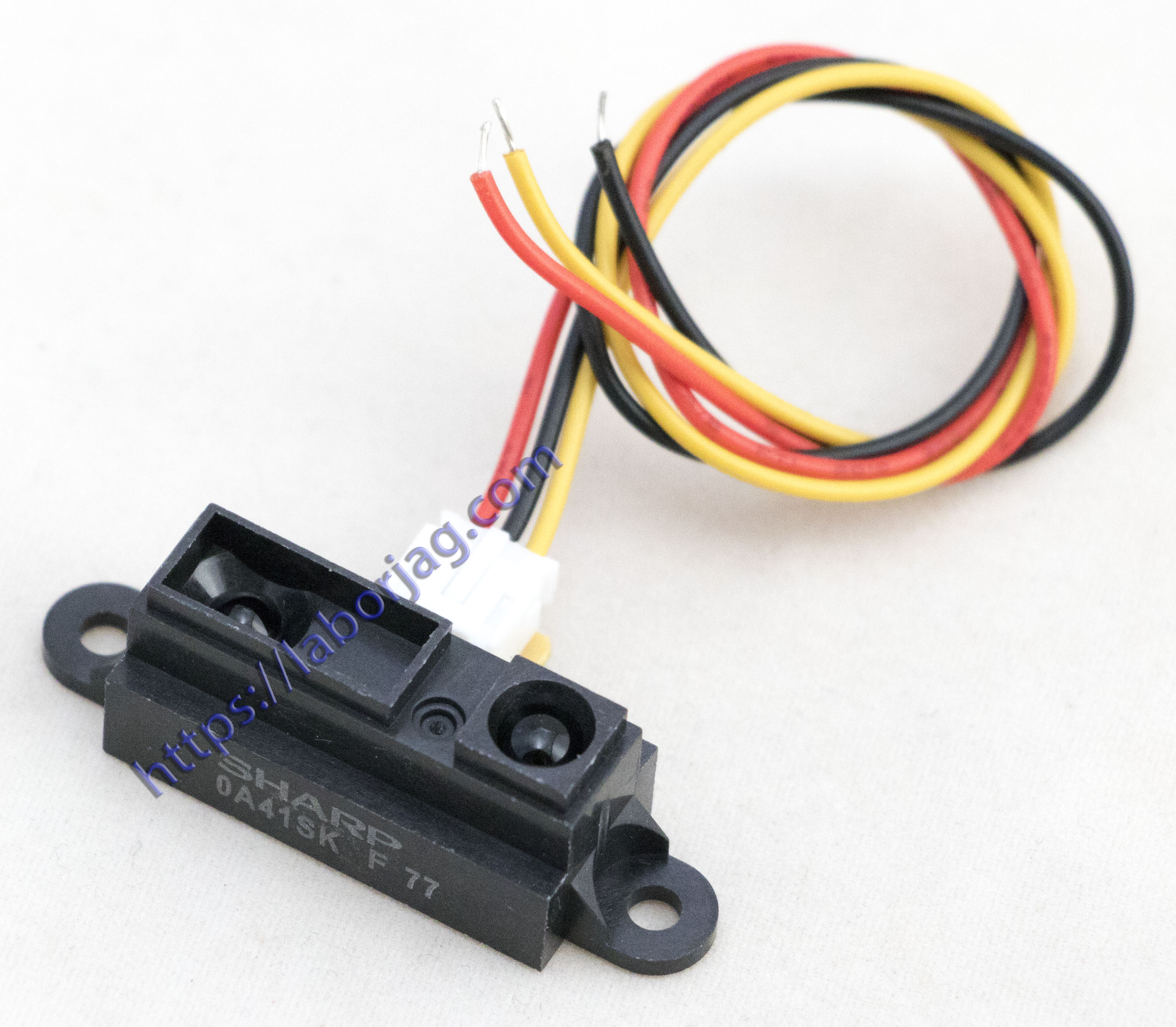

Sharp IR Sensor GP2Y0A41SK0F

GP2Y0A41SK0F 4-30cm Infrared distance sensor GP2Y0A41SK0F Distance Measuring Sensor with cable

Product Description:
GP2Y0A41SK0F is a distance measuring sensor unit, composed of an integrated combination of PSD (position sensitive detector), IRED (infrared emitting diode) and signal processing circuit.
The variety of the reflectivity of the object, the environmental temperature and the operating duration are not influenced easily to the distance detection because of adopting the triangulation method.
This device outputs the voltage corresponding to the detection distance. So this sensor can also be used as a proximity sensor.

Features:
Measurement range: 4cm to 30cm
The maximum allowable Angle: > 40
The power supply voltage: 4.5 to 5.5 V
The average power consumption: 35 mA
Peak power consumption: about 200 mA
The frequency of updates/cycle: 25 Hz/40 ms
Analog output noise: < 200 mV

Applications:
Computer, OA 4equipment, Telecommunication Equipment (Terminal), Measuring equipment, Tooling machines, Home appliance etc.

Datasheet
Connection Diagram and Sample Code

Package Included:
1 Sharp IR Sensor GP2Y0A41SK0F
