Heat Shrink Connector

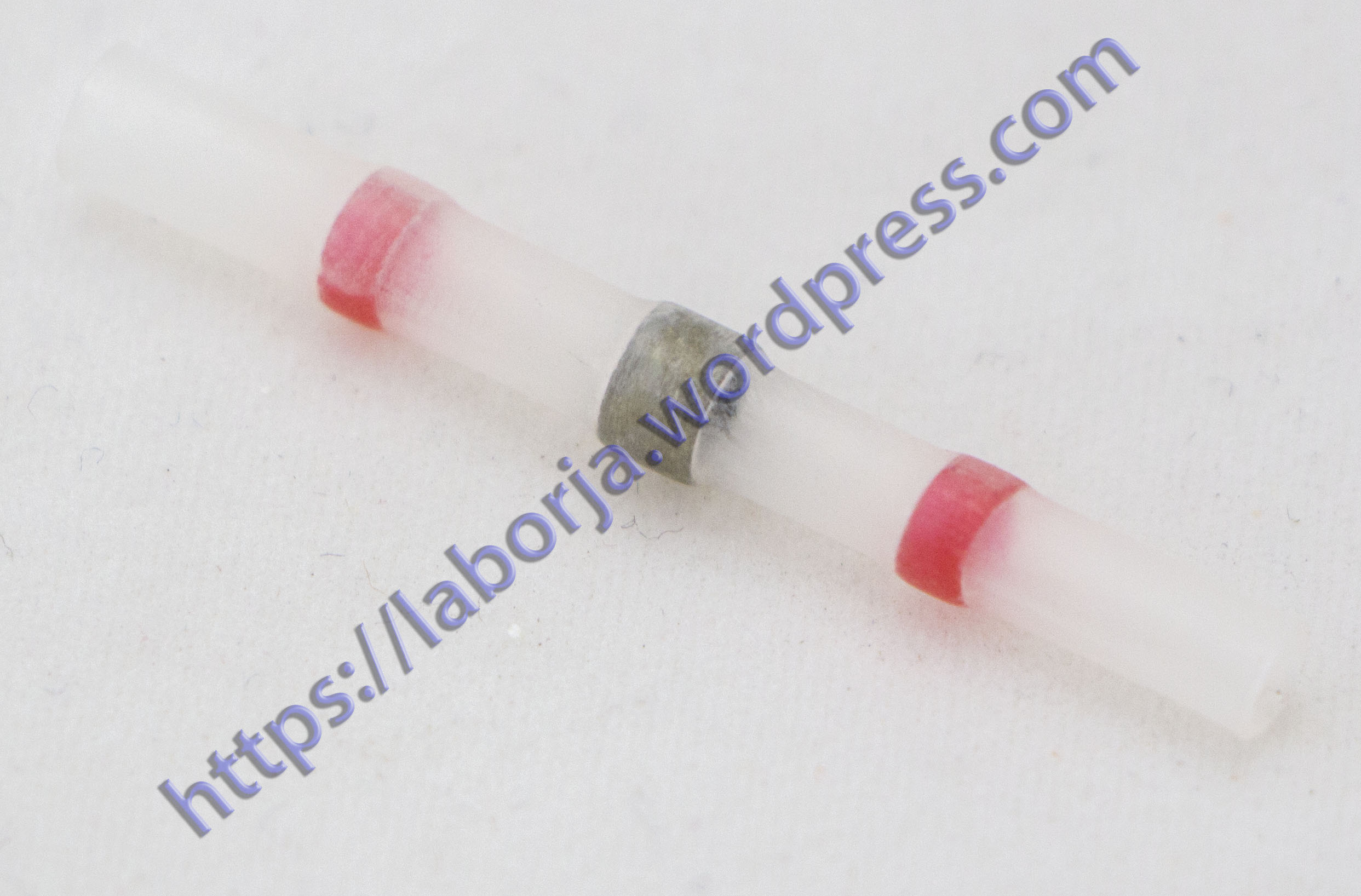

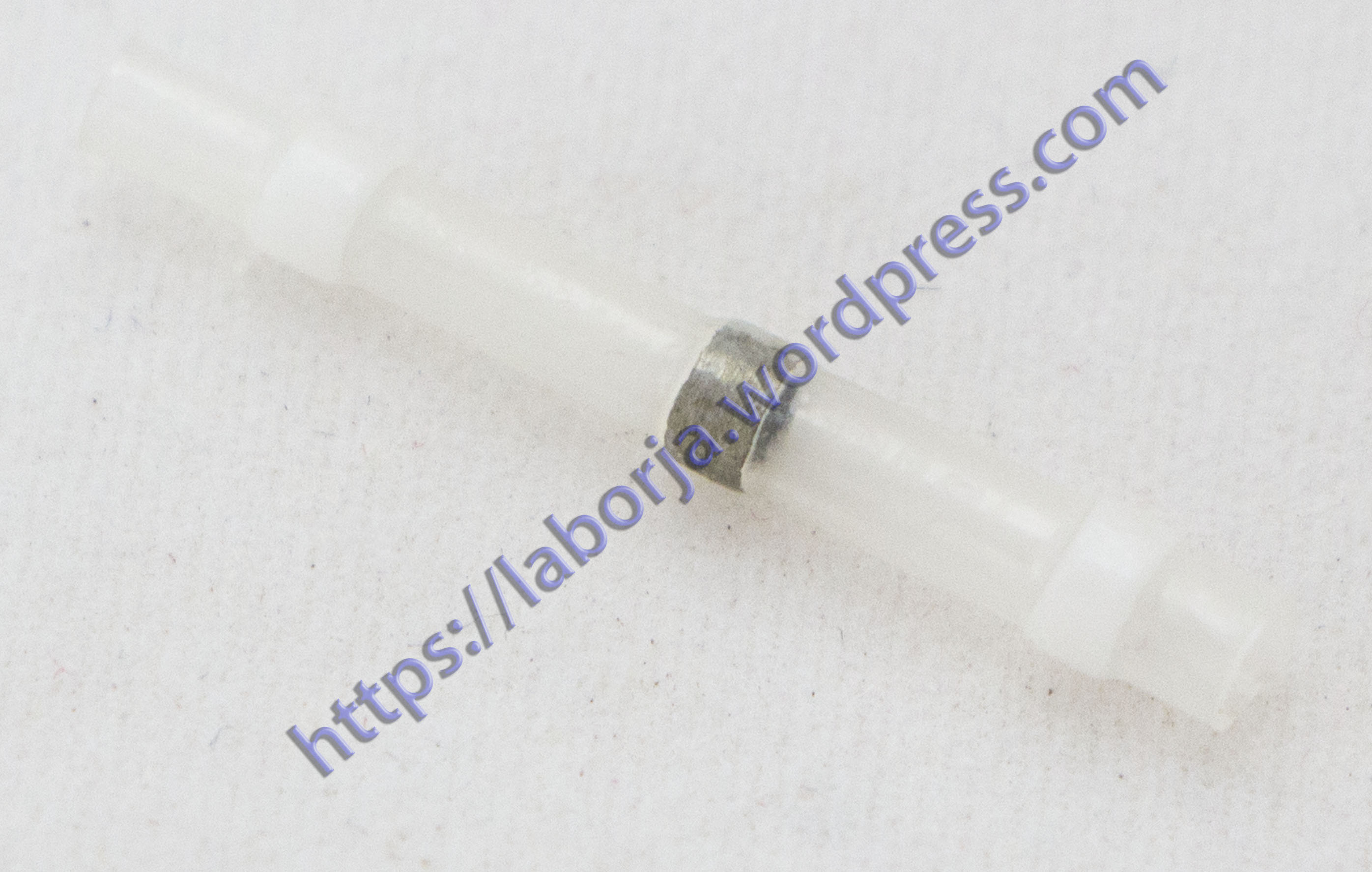

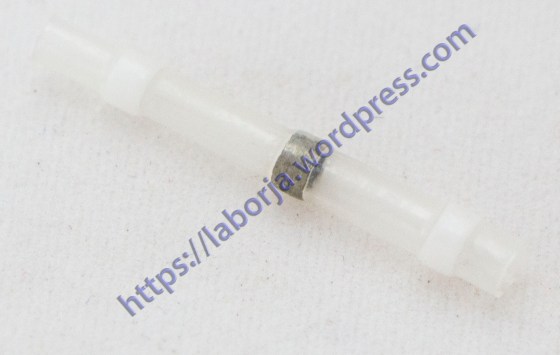

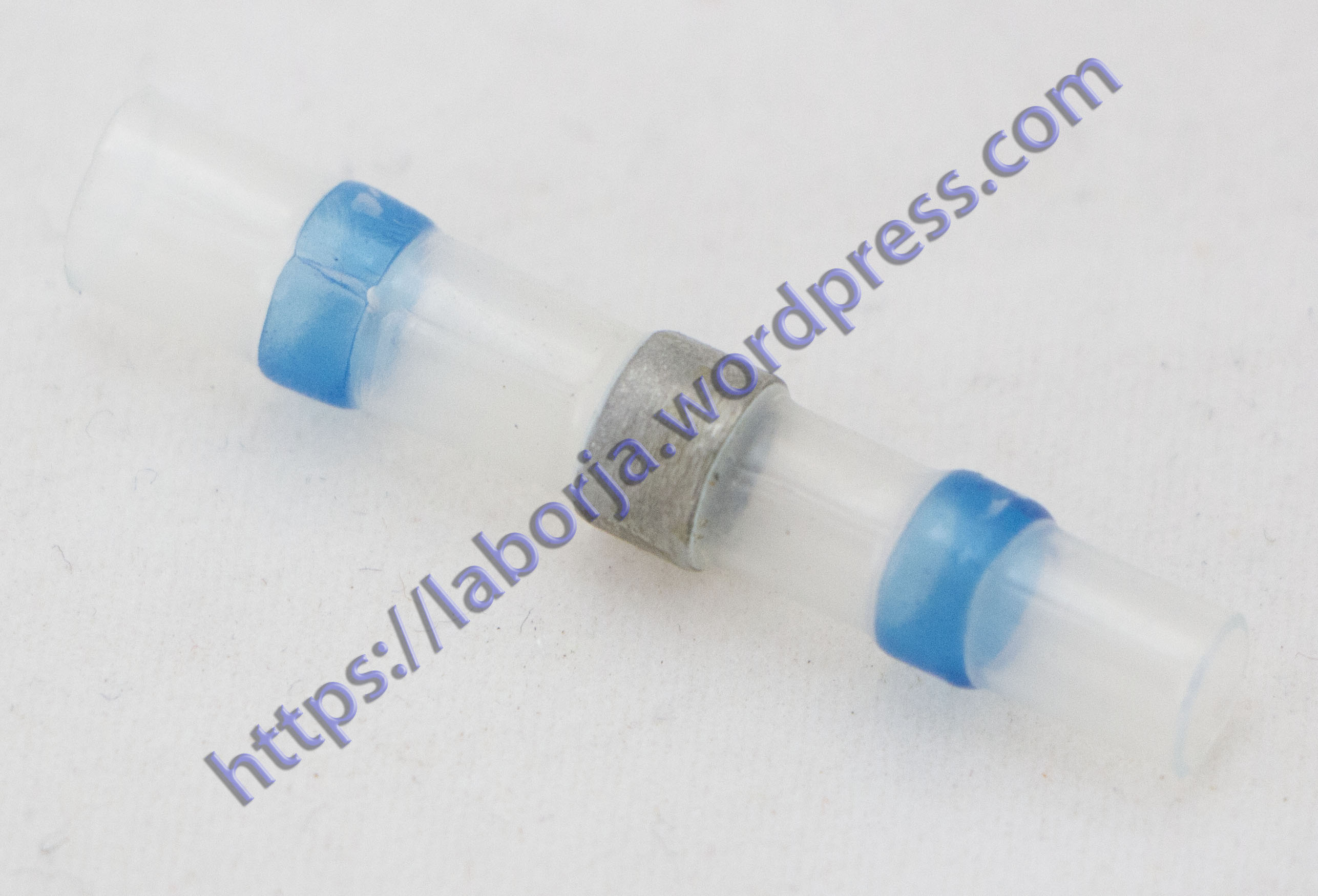

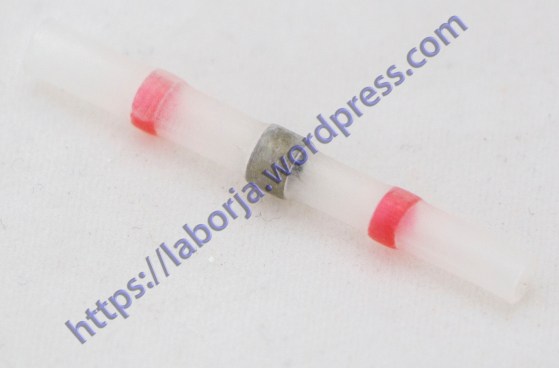

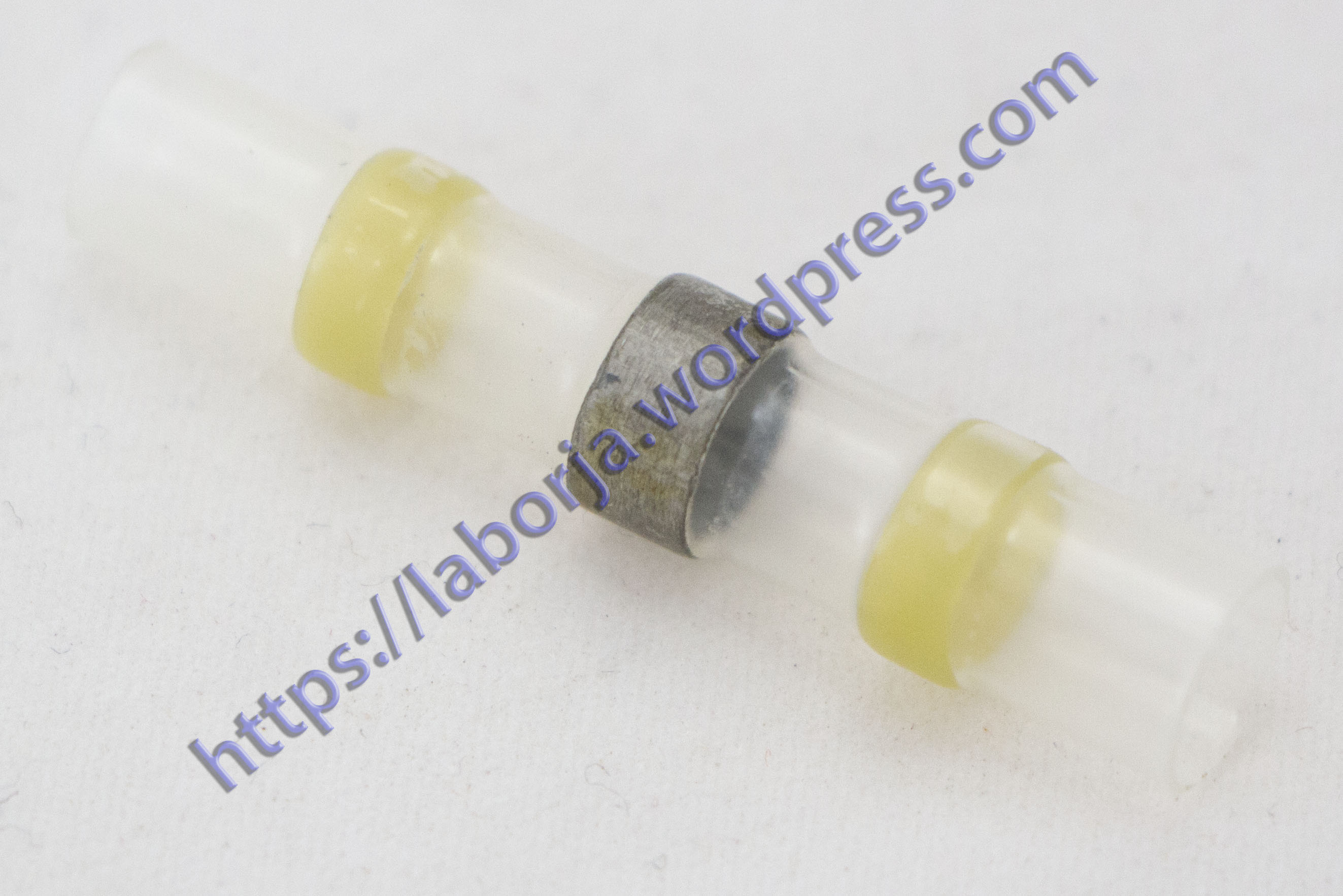

SST-S11 SST-S21 SST-S31 SST-S41

Heat Shrink Connector Butt Solder Sleeve Wire Splices AWG 26-24 22-18 16-14 12-10 Heat Shrink Connector Butt Solder

Product Description:
Solder Sleeves are similar to the Crimp Splice; however, they have the added benefit of having an inner lining of solder that creates the joint when being heated. The outer jacket is a heat shrink material that, by shrinking down to the diameter of the cable, creates a basic environmental barrier. A good example of the use of a solder sleeve is splicing a piece to wire to the braid of a multi-core cable. The Solder Sleeve is robust, simple and effective but does need to be used by an experienced trained assembler; this is because the combination of heat and the fact that you only get one shot to install these means they must be assembled correctly to work effectively.

Applications:
Designed for wire connection, double solder loop heat shrinkable protection, waterproof finish design products.
Characteristics:
Shrinkage 2:1
Contain glue with waterproof function
Hot melt adhesive label size suitable color
Design easy for operation
Operating temperature rang:
Working temperature: – 55degree centigrade~125degree centigrade
Fully contraction temperature: 130degree centigrade
Solder began to melt temperature: 125degree centigrade
Solder completely melt temperature: 150degree centigrade
