Fingerprint Recognition Module

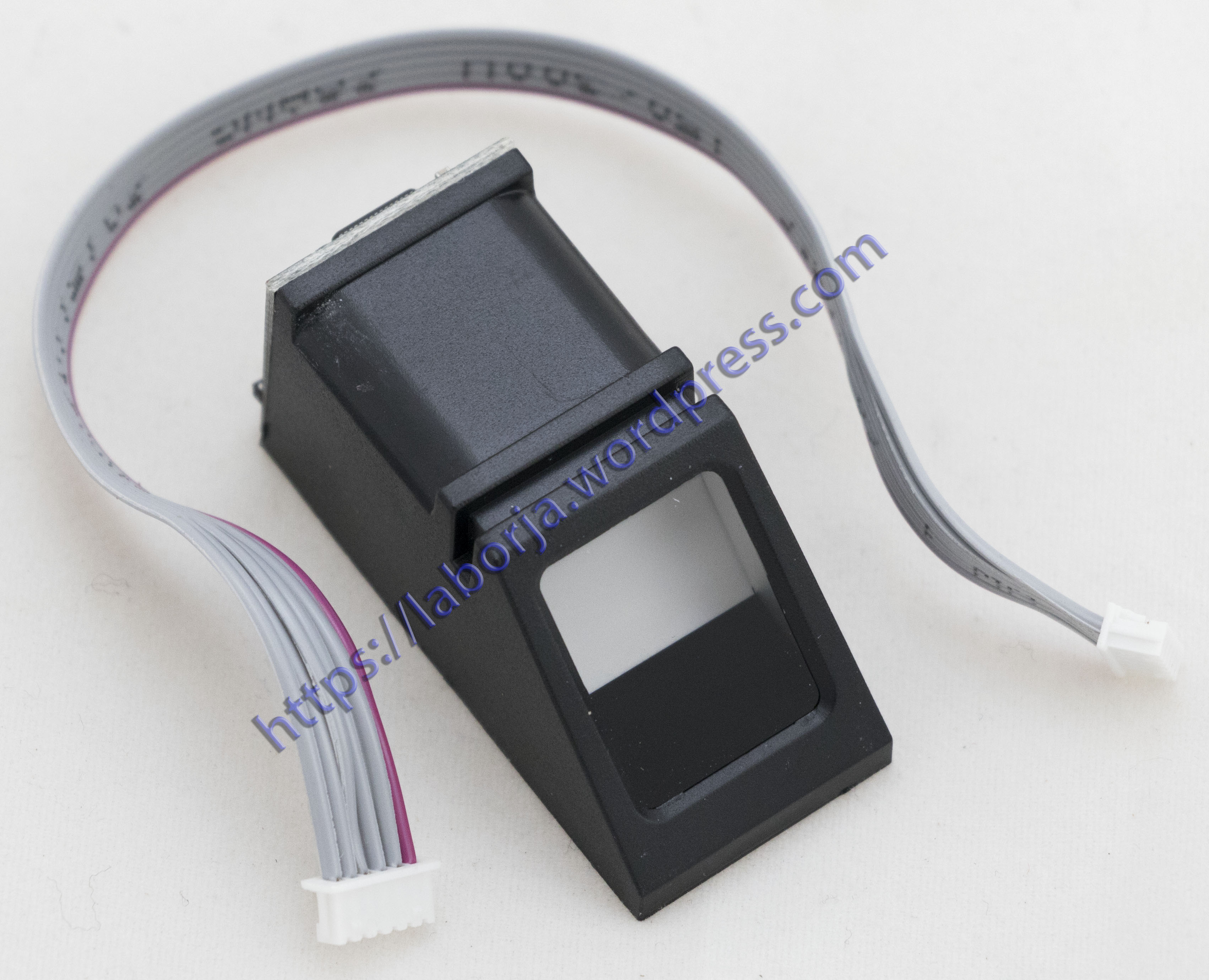

Fingerprint a Fingerprint b

Fingerprint Recognition Module Optical fingerprint Fingerprint Module Raspberry Pi UART interface Two times development

Product Description:
Fingerprint module is widely used, suitable for all the fingerprint recognition system from high to low.

For example:
Fingerprint door locks, safe, gun boxes, finance and other security areas;
Access control systems, industrial control computer, POS machine, driving training, attendance and other identity areas;
Private clubs, management software, licensing and other management areas.

Specification parameter:
Supply voltage: DC 3.8 ~ 6.0V
Supply Current: Current : <65mA
Peak current: <95mA
Fingerprint image time: < 0.5 seconds
Window Size: 14.5 × 19.4 mm
Signature File: 256 bytes
Template files: 512 bytes
Storage capacity: 1,000
False Accept Rate (FAR): <0.001% ( security level 3 )
False Reject Rate (FRR): <1.0% ( security level 3 )
Search time: < 1.0 seconds ( 1:500 , the mean )
PC Interface : UART (TTL logic level )
Communication baud rate (UART): (9600 × N) bps where N = 1 ~ 12 ( default value N = 6, ie 57600bps)
Working environment: Temperature :-20C to +60 C
Relative Humidity: 40% RH to 85% RH ( non-condensing )
Storage environment: Temperature :-40C to +85 C
Relative humidity: <85% H ( non-condensing )
Dimensions (L × W × H): 47.65 × 20 × 21mm
Note: The example program provides forArduino, 51 ,STM32 and MEGA16 testing procedures, PC software (VC + + to write ).

Downloads:
Library
Datasheet
How to use
System Overview
Example
