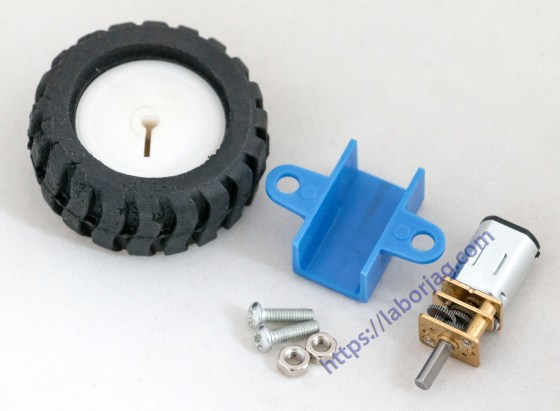

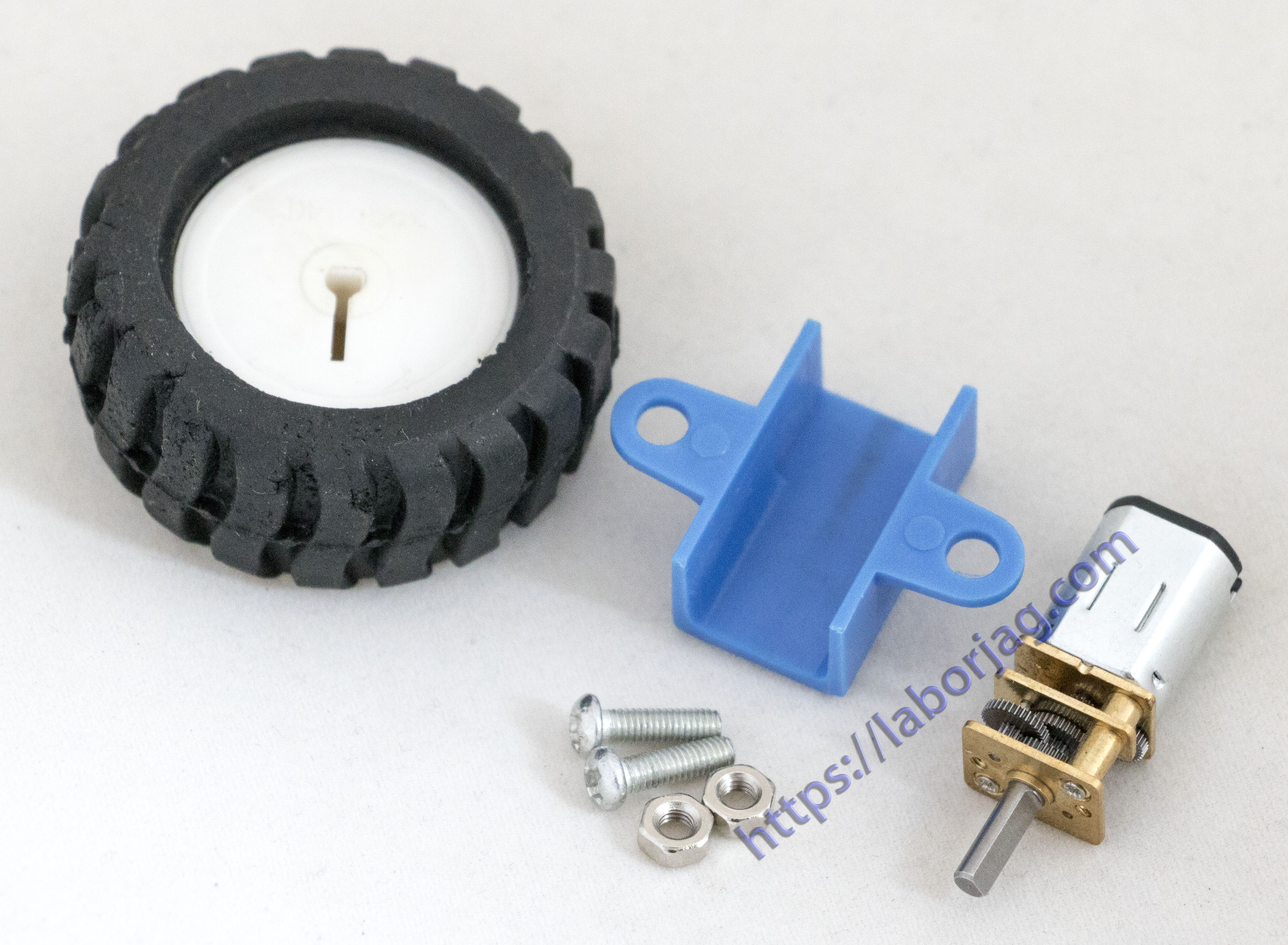

N20 DC12V Gear Motor with Rubber Tire and Bracket

1set K337 3-12V N20 50-300RPM Speed Reduction Gear Motor With D Type Shaft Rubber Tire Trestle DIY Parts

Product Description:

Shaft diameter: 3MM D type Axis
Shaft length: 10MM
Voltage: 6V (3-12V can be used)
No-load speed: 60RPM/100RPM
Torque: 60 is 1KG.CM 100 is 0.4KG.CM

Rubber tire parameters:
Diameter: 43MM
Thickness: 19MM
Pore size: (D type hole) 3MM
Material: Imported + ABS engineering plastics

Bracket Parameters:
(M3*10 screw nut)
Material: ABS
Fixed aperture: 4MM
Fixed hole center distance: 27MM
Length: 24MM
Suitable for N20 reducer

Disponibility:
6V60RPM: (3V30RPM,12V120RPM)
6V100RPM: (3V50RPM,12V200RPM)
6V150RPM: (3V75RPM,12V300RPM)

Include:
1 N20 Reduction Motor
1 Rubber tire
1 Bracket
