Metal Robot Arm

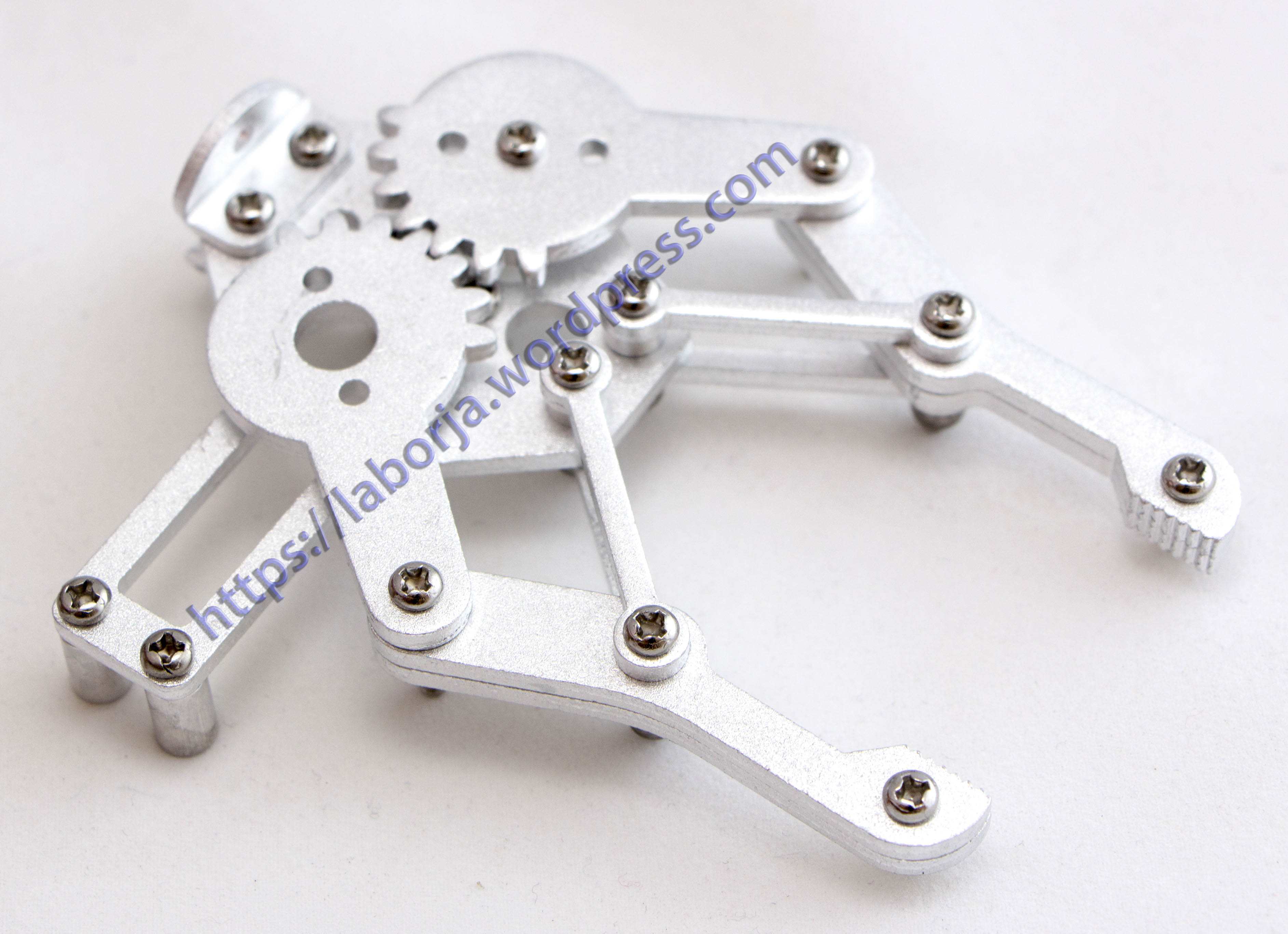

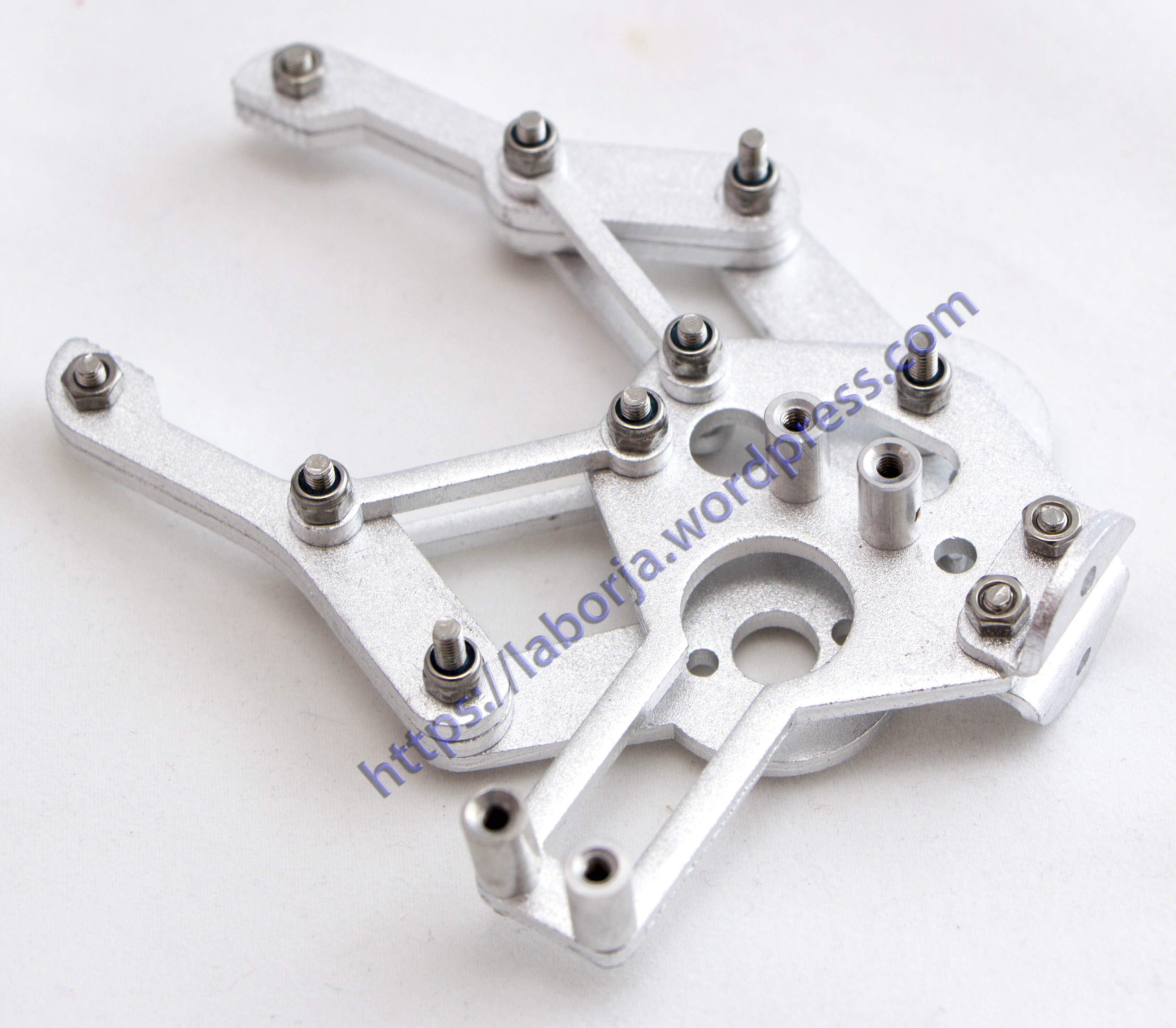

2 DOF Aluminum Robot Arm Clamp Claw Mount kit (No servo)

Product Description:
Using servos (MG995 or HS322, HS422, Hitec, Parallax, Futaba, etc 40×20×36mm
servo)

Robot Arm parameters:
1 paw Material: aluminum alloy
2 paw weight: 60.4g (without motor)
3 paws maximum opening angle:. 55mm (without expansion board after the maximum opening angle when the spacing 55mm, the largest expansion board installed is 95mm)
4 paws overall length: 107 mm (overall length of the longest claws when closed)
5 claws overall width: 98mm (maximum overall width of the paw when open)
